The 22.5 mm width fits compactly alongside other SIRIUS monitoring and control devices. IP20 protection means the relay is suitable for installation inside an enclosure where fingers or tools cannot contact live parts. The single-pole changeover contact (1 CO) is rated for the control circuit; it is not intended for switching motor loads directly. The reference code K per DIN EN 81346-2 classifies it as a monitoring/measuring function.

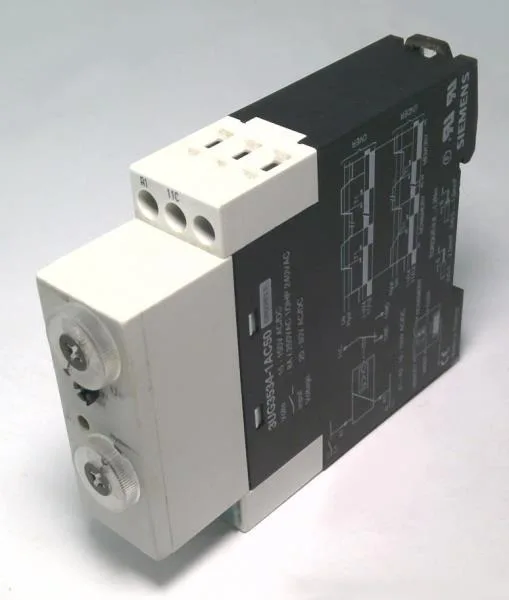

Siemens 3UG3534-1AC50 SIRIUS Monitoring Relay, 22.5 mm, AC/D
MPN3UG3534-1AC50
Siemens SIRIUS monitoring relay, 22.5 mm, measuring voltage = supply voltage, threshold value adjustable with hysteresis, 1 CO contact, AC/DC 20-80 V, screw terminal, snap-on mounting.
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product line / brand name | SIRIUS |
| Parameter | Value |
|---|---|
| Ingress protection (IP rating), wired | IP20 |
| Parameter | Value |
|---|---|
| Mounting type | snap-on mounting |
| Parameter | Value |
|---|---|
| During operation | -20 ... +50 °C |
| Reference code acc. to DIN EN 81346-2 | K |
| Number of poles for main current circuit | 1 |
Product details
Frequently asked questions
What is the mounting type for this relay?
Snap-on mounting onto a 35 mm DIN rail per EN 50022.
What is the operating temperature range?
-20 to +50 °C during operation.
What protection class does it have?
IP20.
MPN
3UG3534-1AC50
