Siemens 3UG4582-1AW30

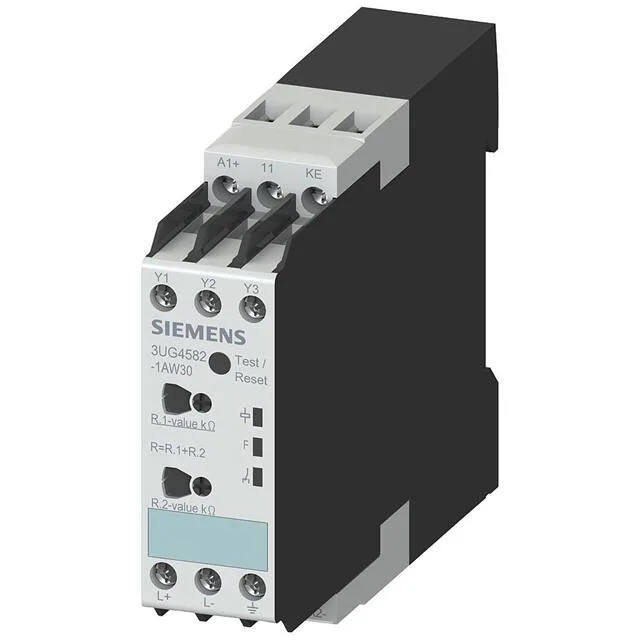

Siemens SIRIUS 3UG4582-1AW30 Insulation Monitoring Relay, 24

MPN 3UG4582-1AW30
Active

Siemens SIRIUS 3UG4582-1AW30 insulation monitoring relay, analog setting, AC/DC supply 24-240 V, measurable voltage 0-250 V AC, 15-400 Hz, screw terminals, snap-on DIN rail.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3UG4582-1AW30 specifications
ParameterValue
IP ratingIP20
Mountingsnap-on fastening on 35 mm DIN rail
Temp operating max60 °C
Temp operating min-25 °C
Depth100 mm
Width22.5 mm
Height78 mm

Product details

The Siemens SIRIUS 3UG4582-1AW30 is an insulation monitoring relay with analog setting, part of the SIRIUS brand family. It continuously monitors insulation resistance in ungrounded AC/DC systems (IT systems), triggering an alarm when resistance drops below a set threshold. It draws its control supply from 24 to 240 V AC/DC (at 50 or 60 Hz), and the measurable voltage range on the monitored circuit is 0 to 250 V AC. The operating frequency range spans 15 to 400 Hz, covering standard power frequencies and higher-speed motor drives. The response threshold is adjustable between 0.85 and 1.1 times the full-scale value, with a delayed switching time of 1 second to avoid nuisance trips from transient leakage. An error memory (latching) option is built in, so a past fault stays indicated until manually reset.

The enclosure is 22.5 mm wide, 78 mm high, 100 mm deep — a single-module footprint that fits tight panel layouts. No clearance required upwards, downwards, forwards, or backwards (0 mm all around). Mounting position is any orientation. Connections are screw-type terminals accepting solid wire 20–12 AWG (0.5–2.5 mm²) and stranded 18–14 AWG (0.75–2.5 mm²) with ferrule. Tightening torque is 0.6–0.8 N·m. No auxiliary contacts or delayed NC/NO contacts are provided — this is a single-function monitoring relay.

Environmental and surge ratings

Surge voltage withstand is 6000 V, giving solid margin for transient-heavy environments like motor control centers or VFD cabinets.

MPN
3UG4582-1AW30
