Siemens 3UG4625-1CW30 — Process / Temperature Controllers

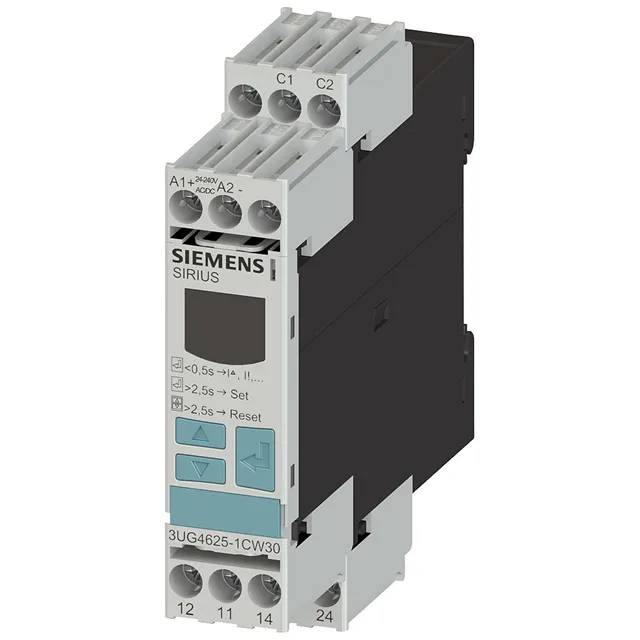

Siemens SIRIUS 3UG4625-1CW30 Residual Current Monitoring Rel

MPN3UG4625-1CW30
NRND

Siemens SIRIUS 3UG4625-1CW30 residual current monitoring relay, digital setting, for three-phase supplies, 30 mA... 40 A, 24... 240 V AC/DC, IP20, screw and snap-on mounting onto 35 mm DIN rail.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3UG4625-1CW30 — Identification
ParameterValue
Product functionfor three-phase supplies
Product designationResidual current monitoring relay with digital setting
Product line / brand nameSIRIUS
3UG4625-1CW30 — Electrical
ParameterValue
Rated value (50 Hz)24 ... 240 V
Rated value (60 Hz)24 ... 240 V
3UG4625-1CW30 — Communication
ParameterValue
Electrical connection typescrew-type terminals
3UG4625-1CW30 — Environmental
ParameterValue
Ingress protection (IP rating), wiredIP20
Installation altitude, max.2 000 m
3UG4625-1CW30 — Mechanical
ParameterValue
Fastening methodscrew and snap-on mounting onto 35 mm DIN rail
Mounting positionany
Width22.5 mm
Height102 mm
Depth91 mm
Conductor cross-section, solid20 ... 14
Conductor cross-section, finely stranded (with ferrule)0.5 ... 2.5 mm²
Mounting clearance, top0 mm
Mounting clearance, rear0 mm
Mounting clearance, side0 mm
Mounting clearance, front0 mm

Product details

The Siemens SIRIUS 3UG4625-1CW30 is a residual current monitoring relay with digital setting, designed specifically for three-phase supplies. It monitors residual current in the range of 30 mA to 40 A, adjustable via the digital interface, and operates on a wide supply voltage of 24 to 240 V AC/DC. This makes it a versatile choice for detecting ground faults or insulation degradation in motor feeders, distribution panels, and industrial loads.

Width is 22.5 mm, so it takes one slot in a terminal-block-style rail. Pollution degree 3 means it's suitable for conductive environments (condensation, occasional dust) typical of control rooms and light industrial floors.

Frequently asked questions

What is the measuring range of the 3UG4625-1CW30?

The residual current monitoring range is adjustable from 30 mA to 40 A, covering both personnel protection and equipment-level leakage detection.

What supply voltage does it need?

It accepts 24 to 240 V AC/DC, so it works on a wide range of control voltages without needing a separate power supply module.

Will this relay fit on a standard DIN rail?

Yes, it mounts on a 35 mm DIN rail using both screw and snap-on methods. Width is 22.5 mm, taking one slot.
