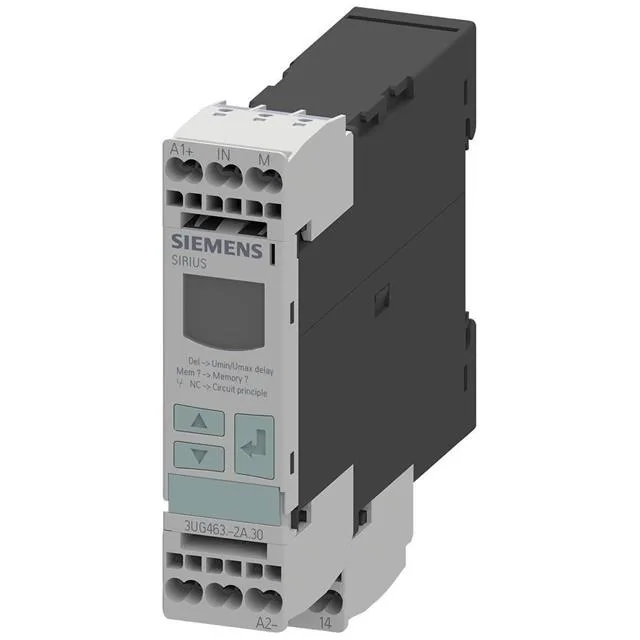

Siemens 3UG4631-2AW30

Siemens 3UG4631-2AW30 SIRIUS Voltage Monitoring Relay, 24-24

MPN 3UG4631-2AW30
NRND

Siemens SIRIUS 3UG4631-2AW30, voltage monitoring relay with digital LCD setting, 24-240 V AC/DC, over/undervoltage detection, IP20, 22.5 mm wide.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

3UG4631-2AW30 specifications
ParameterValue
IP ratingIP20
MountingSnap-on Mounting
Depth91 mm
Width22.5 mm
Height94 mm

Product details

The Siemens 3UG4631-2AW30 is a SIRIUS voltage monitoring relay with a digital LCD setting interface — you dial in the thresholds directly on the front panel, no trim pots or guesswork. It monitors AC or DC systems from 24 to 240 V (50/60 Hz) and trips on overvoltage or undervoltage, with a relative repeat accuracy of 1 % of the full-scale value. The relay output is rated 1 A at 24 V, 0.2 A at 125 V, and 0.1 A at 250 V — these are the contact limits for the alarm or trip signal, not a motor-switching contactor.

Snap-on mounting on a 35 mm DIN rail, 22.5 mm wide, 94 mm tall, 91 mm deep — fits the standard SIRIUS modular profile alongside contactors and motor starters. IP20 rated, so it belongs inside an enclosure, not on the machine frame.

MPN
3UG4631-2AW30
