The Siemens SIRIUS 3UG4983-1A voltage reducer module extends the supply voltage range of the 3UG4583 insulation monitoring relay to 690 V AC and 1000 V DC. It handles line frequencies from 15 to 400 Hz. Mounting is straightforward: it snaps onto a 35 mm DIN rail in any position, and connections are made via screw-type terminals accepting 0.75 to 2.5 mm² stranded wire with ferrules. The IP20 protection class means it's intended for installation inside an enclosed control panel, not in wet or dusty environments.

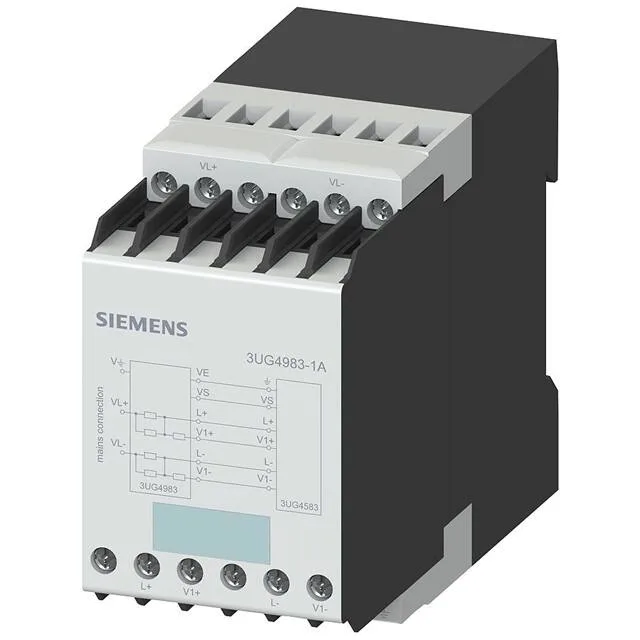

Siemens 3UG4983-1A SIRIUS Voltage Reducer Module, 690 V AC /
MPN3UG4983-1A
Active
Siemens SIRIUS voltage reducer module, 3UG4983-1A, for expanding the supply voltage range of insulation monitoring relay 3UG4583 to 690 V AC and 1000 V DC, screw terminal, IP20.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product function | Converter module |
| Product designation | Voltage reducer module |
| Product line / brand name | SIRIUS |
| Parameter | Value |
|---|---|
| Electrical connection type | screw-type terminals |
| Parameter | Value |
|---|---|
| Ingress protection (IP rating), wired | IP20 |
| Parameter | Value |
|---|---|
| Fastening method | snap-on fastening on 35 mm DIN rail |
| Mounting position | any |
| Width | 45 mm |
| Height | 78 mm |
| Depth | 100 mm |
| Conductor cross-section, solid | 20 ... 12 |
| Conductor cross-section, finely stranded (with ferrule) | 0.75 ... 2.5 mm² |
| Mounting clearance, top | 0 mm |
| Mounting clearance, rear | 0 mm |
| Mounting clearance, side | 0 mm |
| Mounting clearance, front | 0 mm |
Product details
Frequently asked questions
What is the 3UG4983-1A's depth?
The depth is 100 mm.
