Siemens 3VA1010-4ED32-0AA0 — Molded Case Circuit Breakers (MCCB)

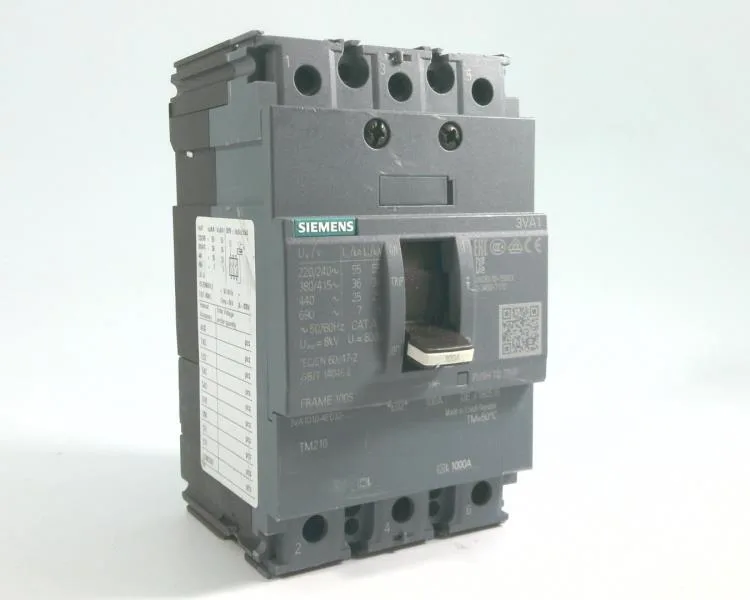

Siemens SENTRON 3VA1010-4ED32-0AA0 MCCB, 100 A, 3-Pole, 121

MPN3VA1010-4ED32-0AA0
Active

Siemens SENTRON 3VA molded case circuit breaker, 3VA1010-4ED32-0AA0, 100 A, 3-pole, TM210 overcurrent release, line protection, 121 kA interrupting at 240 V.

$107.95Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3VA1010-4ED32-0AA0 — Identification
ParameterValue
Product designationMolded case circuit breaker
Brand / rangeSENTRON
3VA1010-4ED32-0AA0 — Ratings
ParameterValue
Number of poles3
Rated operational voltage Ue (AC)690 V
Rated insulation voltage Ui800 V
Current at 40 °C100 A
Current at 45 °C100 A
Current at 50 °C100 A
Current at 55 °C98 A
Current at 60 °C96 A
Current at 65 °C94 A
Current at 70 °C91 A
Switching capacity classS
Breaking capacity at 240 V121 kA
Breaking capacity at 415 V75.6 kA
Breaking capacity at 440 V52.5 kA
Breaking capacity at 500 V11.9 kA
Breaking capacity at 690 V11.9 kA
Power loss, max.25 W
3VA1010-4ED32-0AA0 — Protection & Trip Unit
ParameterValue
Overcurrent release (trip unit) typeTM210
Overcurrent protection functionLI
Ground-fault monitoringWithout
Grounding protection functionNo
3VA1010-4ED32-0AA0 — Construction & Connection
ParameterValue
Main circuit connection typenut keeper kit on both ends
Main circuit connector arrangementFront terminal
Protection class (IP), frontIP40
3VA1010-4ED32-0AA0 — Accessories & Functions
ParameterValue
Undervoltage releaseNo
Voltage triggerNo
Trip indicatorNo
Communication functionNo
Measurement functionNo
Motor drive optionNo
Auxiliary CO contacts0
3VA1010-4ED32-0AA0 — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
Storage temperature, max.80 °C
Storage temperature, min.-40 °C
3VA1010-4ED32-0AA0 — Mechanical
ParameterValue
Mechanical service life (operating cycles), typ.20 000
Height130 mm
Width76.2 mm
Depth70 mm
Height (in)5.12 in
Width (in)3 in
Depth (in)2.76 in

Product details

That makes it a straight replacement for older fixed-trip MCCBs in commercial or light industrial switchboards where you don't need adjustable long-time or short-time pickup.

This breaker delivers 121 kA interrupting at 240 V AC, dropping to 75.6 kA at 415 V, 52.5 kA at 440 V, and 11.9 kA at 500 V and 690 V. At 415 V — common for European industrial feeds — 75.6 kA gives you headroom above a typical 50 kA utility fault level, so you can use it as a main breaker without worrying about cascading failure upstream.

The 100 A rating holds flat from 40 °C to 50 °C ambient, then derates to 98 A at 55 °C, 96 A at 60 °C, 94 A at 65 °C, and 91 A at 70 °C.

Frequently asked questions

What is the interrupting capacity of 3VA1010-4ED32-0AA0 at 415 V?

At 415 V AC, the interrupting capacity is 75.6 kA. That's sufficient for most industrial main-breaker applications at this voltage level.

Does 3VA1010-4ED32-0AA0 have an undervoltage release?

No, this variant does not include an undervoltage release (listed as 'No' under Undervoltage Release). If you need UVR, look at the 3VA1010-4ED32-0AC0 or a different option code.

Where can I buy 3VA1010-4ED32-0AA0 and how is it quoted?

This part is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time, no stock count or lead time published here.
