Siemens 3VA1112-4EE36-0AA0 — Molded Case Circuit Breakers (MCCB)

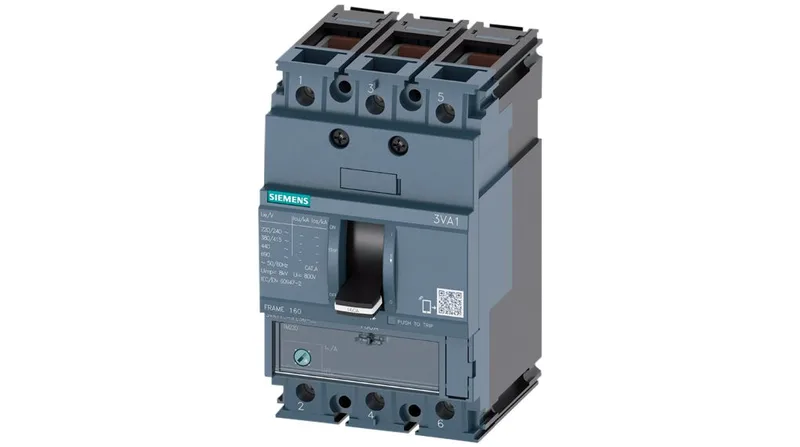

Siemens 3VA1112-4EE36-0AA0 MCCB, 125 A, 121 kA at 240 V

Name: 3VA1112-4EE36-0AA0
Brand: Siemens
SKU: 3VA1112-4EE36-0AA0
Availability: LimitedAvailability
Author: OEM Oscar

MPN3VA1112-4EE36-0AA0

Active

Siemens SENTRON 3VA1112-4EE36-0AA0, 3-pole molded case circuit breaker, 125 A rated current at 40 °C, 121 kA breaking capacity at 240 V, line protection design with TM220 thermal-magnetic release.

$207.01Ref. price · indicative, final on quote

Add to RFQ

Siemens 3VA1112-4EE36-0AA0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3VA1112-4EE36-0AA0 — Identification
Parameter	Value
Product designation	Molded case circuit breaker
Brand / range	SENTRON

3VA1112-4EE36-0AA0 — Ratings
Parameter	Value
Number of poles	3
Rated operational voltage Ue (AC)	690 V
Rated insulation voltage Ui	800 V
Current at 40 °C	125 A
Current at 45 °C	125 A
Current at 50 °C	125 A
Current at 55 °C	122 A
Current at 60 °C	120 A
Current at 65 °C	117 A
Current at 70 °C	114 A
Switching capacity class	S
Breaking capacity at 240 V	121 kA
Breaking capacity at 415 V	75.6 kA
Breaking capacity at 440 V	52.5 kA
Breaking capacity at 500 V	11.9 kA
Breaking capacity at 690 V	11.9 kA
Power loss, max.	28.1 W

3VA1112-4EE36-0AA0 — Protection & Trip Unit
Parameter	Value
Overcurrent release (trip unit) type	TM220
Overcurrent protection function	LI
Ground-fault monitoring	Without
Grounding protection function	No

3VA1112-4EE36-0AA0 — Construction & Connection
Parameter	Value
Main circuit connection type	box terminal on both sides
Main circuit connector arrangement	Front terminal
Protection class (IP), front	IP40

3VA1112-4EE36-0AA0 — Accessories & Functions
Parameter	Value
Undervoltage release	No
Voltage trigger	No
Trip indicator	No
Communication function	No
Measurement function	No
Motor drive option	Yes
Auxiliary CO contacts	0

3VA1112-4EE36-0AA0 — Environmental
Parameter	Value
Operating temperature, max.	70 °C
Operating temperature, min.	-25 °C
Storage temperature, max.	80 °C
Storage temperature, min.	-40 °C

3VA1112-4EE36-0AA0 — Mechanical
Parameter	Value
Mechanical service life (operating cycles), typ.	20 000
Height	130 mm
Width	76.2 mm
Depth	70 mm
Height (in)	5.12 in
Width (in)	3 in
Depth (in)	2.76 in

Product details

The 3VA1112-4EE36-0AA0 delivers 121 kA at 240 V and 75.6 kA at 415 V — that SCCR covers most transformer-fed distribution panels and motor control centres without needing a current-limiting fuse upstream.

Thermal-magnetic release and current ratings

Panel fit and mounting constraints

The 3-pole frame measures 130 mm high × 76.2 mm wide × 70 mm deep — a standard 3-inch wide footprint that fits most 600 mm wide distribution boards with room for side-by-side mounting. Front IP40 protection means the breaker face is sealed against tools and solid objects >1 mm, but the rear terminals are open to the enclosure — plan for a dead-front panel or terminal shrouds.

Sourcing and production status

Maximum power loss is 28.1 W at rated load — account for this in the enclosure thermal budget, especially in a multi-breaker panel with limited ventilation.
