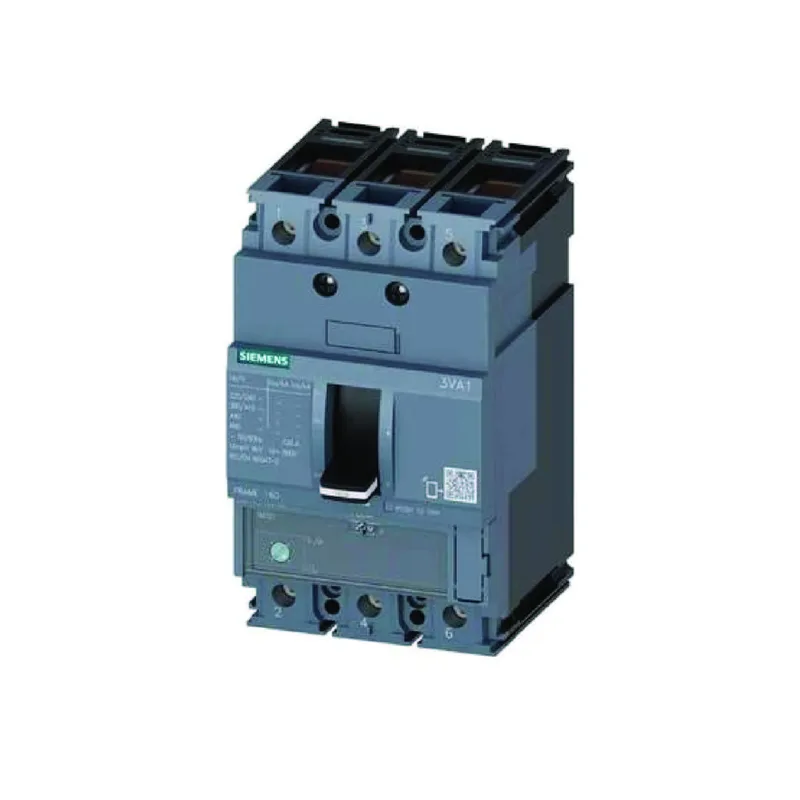

Siemens SENTRON 3VA1116-5EE36-0AA0, 3-pole molded case circuit breaker, 160 A rated, TM220 thermal-magnetic release, 187 kA breaking capacity at 240 V.
| Parameter | Value |
|---|---|
| Product designation | Molded case circuit breaker |
| Brand / range | SENTRON |
| Parameter | Value |
|---|---|
| Number of poles | 3 |
| Rated operational voltage Ue (AC) | 690 V |
| Rated insulation voltage Ui | 800 V |
| Current at 40 °C | 160 A |
| Current at 45 °C | 160 A |
| Current at 50 °C | 160 A |
| Current at 55 °C | 158 A |
| Current at 60 °C | 155 A |
| Current at 65 °C | 153 A |
| Current at 70 °C | 150 A |
| Switching capacity class | M |
| Breaking capacity at 240 V | 187 kA |
| Breaking capacity at 415 V | 121 kA |
| Breaking capacity at 440 V | 75.6 kA |
| Breaking capacity at 500 V | 17 kA |
| Breaking capacity at 690 V | 17 kA |
| Power loss, max. | 38 W |
| Parameter | Value |
|---|---|
| Overcurrent release (trip unit) type | TM220 |
| Overcurrent protection function | LI |
| Ground-fault monitoring | Without |
| Grounding protection function | No |
| Parameter | Value |
|---|---|
| Main circuit connection type | box terminal on both sides |
| Main circuit connector arrangement | Front terminal |
| Protection class (IP), front | IP40 |
| Parameter | Value |
|---|---|
| Undervoltage release | No |
| Voltage trigger | No |
| Trip indicator | No |
| Communication function | No |
| Measurement function | No |
| Motor drive option | Yes |
| Auxiliary CO contacts | 0 |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -25 °C |
| Storage temperature, max. | 80 °C |
| Storage temperature, min. | -40 °C |
| Parameter | Value |
|---|---|
| Mechanical service life (operating cycles), typ. | 20 000 |
| Height | 130 mm |
| Width | 76.2 mm |
| Depth | 70 mm |
| Height (in) | 5.12 in |
| Width (in) | 3 in |
| Depth (in) | 2.76 in |
The Siemens 3VA1116-5EE36-0AA0 is a 3-pole SENTRON molded case circuit breaker rated 160 A continuous at 40 °C, with a TM220 thermal-magnetic release for line protection.
At 440 V the breaker clears 75.6 kA; at 500 V and 690 V it still holds 17 kA.
Rated 160 A through 50 °C ambient; at 70 °C the continuous current derates to 150 A. The case measures 130 mm high, 76.2 mm wide, 70 mm deep — fits standard 3-pole MCCB panel cutouts. Front IP40 protection covers the operator interface.
