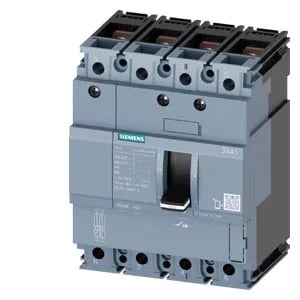

Siemens 3VA1180-6GD42-0AA0 — Molded Case Circuit Breakers (MCCB)

Siemens 3VA1180-6GD42-0AA0 SENTRON MCCB, 80 A, 4-Pole, 220 k

MPN3VA1180-6GD42-0AA0
Active

Siemens SENTRON 3VA1 series, molded case circuit breaker (MCCB), 3VA1180-6GD42-0AA0, 80 A, 4-pole, 220 kA interrupting at 240 V, TM210 thermal-magnetic release, IP40 front protection.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3VA1180-6GD42-0AA0 — Identification
ParameterValue
Product designationMolded case circuit breaker
Brand / rangeSENTRON
3VA1180-6GD42-0AA0 — Ratings
ParameterValue
Number of poles4
Rated operational voltage Ue (AC)690 V
Rated insulation voltage Ui800 V
Current at 40 °C80 A
Current at 45 °C80 A
Current at 50 °C80 A
Current at 55 °C78 A
Current at 60 °C77 A
Current at 65 °C75 A
Current at 70 °C74 A
Switching capacity classH
Breaking capacity at 240 V220 kA
Breaking capacity at 415 V154 kA
Breaking capacity at 440 V121 kA
Breaking capacity at 500 V17 kA
Breaking capacity at 690 V17 kA
Power loss, max.19.2 W
3VA1180-6GD42-0AA0 — Protection & Trip Unit
ParameterValue
Overcurrent release (trip unit) typeTM210
Overcurrent protection functionLI
Ground-fault monitoringWithout
Grounding protection functionNo
3VA1180-6GD42-0AA0 — Construction & Connection
ParameterValue
Main circuit connection typenut keeper kit on both ends
Main circuit connector arrangementFront terminal
Protection class (IP), frontIP40
3VA1180-6GD42-0AA0 — Accessories & Functions
ParameterValue
Undervoltage releaseNo
Voltage triggerNo
Trip indicatorNo
Communication functionNo
Measurement functionNo
Motor drive optionYes
Auxiliary CO contacts0
3VA1180-6GD42-0AA0 — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
Storage temperature, max.80 °C
Storage temperature, min.-40 °C
3VA1180-6GD42-0AA0 — Mechanical
ParameterValue
Mechanical service life (operating cycles), typ.20 000
Height130 mm
Width101.6 mm
Depth70 mm
Height (in)5.12 in
Width (in)4 in
Depth (in)2.76 in

Product details

The interrupting ratings are what make this part stand out: 220 kA at 240 V AC, 154 kA at 415 V, and still 17 kA up to 690 V — meaning it handles high-fault-current scenarios like transformer secondaries or large motor control centers without cascading upstream.

The 80 A rating holds from 40 °C up to 50 °C ambient without derating — at 55 °C it's 78 A, at 70 °C it's still 74 A.

Operating temperature range is -25 °C to 70 °C, storage from -40 °C to 80 °C, so it's fine for unheated warehouses or outdoor enclosures as long as the front stays IP40-protected.

Frequently asked questions

What are the interrupting ratings for 3VA1180-6GD42-0AA0 at different voltages?

220 kA at 240 V, 154 kA at 415 V, 121 kA at 440 V, and 17 kA at both 500 V and 690 V. These are the maximum short-circuit currents the breaker can safely interrupt at those voltages.

Where can I buy 3VA1180-6GD42-0AA0 and get current pricing?

This part is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — both are confirmed at quote time and vary with quantity and delivery location.

What is the depth and width of this MCCB?

Depth is 70 mm (2.76 in), width is 101.6 mm (4 in), height is 130 mm (5.12 in). These dimensions match standard panel cutouts for 4-pole MCCBs in this frame size.
