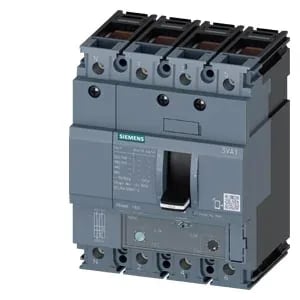

Siemens SENTRON molded case circuit breaker, 3VA1196-4EF46-0AA0, 4-pole, 16 A rated at 40 °C, TM240 overcurrent release, breaking capacity 121 kA at 240 V AC.
| Parameter | Value |
|---|---|
| Product designation | Molded case circuit breaker |
| Brand / range | SENTRON |
| Parameter | Value |
|---|---|
| Number of poles | 4 |
| Rated operational voltage Ue (AC) | 690 V |
| Rated insulation voltage Ui | 800 V |
| Current at 40 °C | 16 A |
| Current at 45 °C | 16 A |
| Current at 50 °C | 16 A |
| Current at 55 °C | 16 A |
| Current at 60 °C | 15 A |
| Current at 65 °C | 15 A |
| Current at 70 °C | 15 A |
| Switching capacity class | S |
| Breaking capacity at 240 V | 121 kA |
| Breaking capacity at 415 V | 75.6 kA |
| Breaking capacity at 440 V | 52.5 kA |
| Breaking capacity at 500 V | 11.9 kA |
| Breaking capacity at 690 V | 11.9 kA |
| Power loss, max. | 10.6 W |
| Parameter | Value |
|---|---|
| Overcurrent release (trip unit) type | TM240 |
| Overcurrent protection function | LI |
| Ground-fault monitoring | Without |
| Grounding protection function | No |
| Parameter | Value |
|---|---|
| Main circuit connection type | box terminal on both sides |
| Main circuit connector arrangement | Front terminal |
| Protection class (IP), front | IP40 |
| Parameter | Value |
|---|---|
| Undervoltage release | No |
| Voltage trigger | No |
| Trip indicator | No |
| Communication function | No |
| Measurement function | No |
| Motor drive option | Yes |
| Auxiliary CO contacts | 0 |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -25 °C |
| Storage temperature, max. | 80 °C |
| Storage temperature, min. | -40 °C |
| Parameter | Value |
|---|---|
| Mechanical service life (operating cycles), typ. | 20 000 |
| Height | 130 mm |
| Width | 101.6 mm |
| Depth | 70 mm |
| Height (in) | 5.12 in |
| Width (in) | 4 in |
| Depth (in) | 2.76 in |
It carries a full-load current of 16 A at 40 °C ambient — no derating needed up to 55 °C, then 15 A at 60 °C and above. The TM240 thermal-magnetic release handles overloads and short-circuits without an external trip unit. Breaking capacity is the headline: 121 kA at 240 V AC, dropping to 75.6 kA at 415 V, 52.5 kA at 440 V, and 11.9 kA at both 500 V and 690 V.
Current lifecycle stage per the manufacturer — no phase-out or last-time-buy notice on record.
Four poles fit a standard MCCB cutout;
TM240 — a thermal-magnetic release with fixed thermal and magnetic settings, no electronic trip unit. Designed for line protection, not adjustable for selective coordination.
