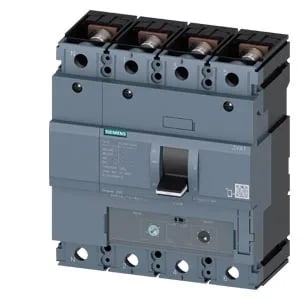

Siemens 3VA1220-5EF42-0DH0 — Molded Case Circuit Breakers (MCCB)

Siemens 3VA1220-5EF42-0DH0 SENTRON MCCB, 200 A, 4-Pole, 187

MPN3VA1220-5EF42-0DH0

Siemens SENTRON 3VA1220-5EF42-0DH0, molded case circuit breaker, 4-pole, 200 A rated at 40 °C, 187 kA breaking at 240 V, line protection design with undervoltage release.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3VA1220-5EF42-0DH0 — Identification
ParameterValue
Product designationMolded case circuit breaker
Brand / rangeSENTRON
Basic switch (supplied) ref.3VA12205EF420AA0
Integrated auxiliary / alarm switch ref.3VA9988-0AB12
3VA1220-5EF42-0DH0 — Ratings
ParameterValue
Number of poles4
Rated operational voltage Ue (AC)690 V
Rated insulation voltage Ui800 V
Current at 40 °C200 A
Current at 45 °C200 A
Current at 50 °C200 A
Current at 55 °C194 A
Current at 60 °C188 A
Current at 65 °C182 A
Current at 70 °C176 A
Switching capacity classM
Breaking capacity at 240 V187 kA
Breaking capacity at 415 V121 kA
Breaking capacity at 440 V75.6 kA
Breaking capacity at 500 V30 kA
Breaking capacity at 690 V17 kA
Power loss, max.44.5 W
3VA1220-5EF42-0DH0 — Protection & Trip Unit
ParameterValue
Overcurrent release (trip unit) typeTM240
Overcurrent protection functionLI
Ground-fault monitoringWithout
Grounding protection functionNo
3VA1220-5EF42-0DH0 — Construction & Connection
ParameterValue
Main circuit connection typenut keeper kit on both ends
Main circuit connector arrangementFront terminal
Protection class (IP), frontIP40
3VA1220-5EF42-0DH0 — Accessories & Functions
ParameterValue
Undervoltage releaseYes
Voltage triggerNo
Trip indicatorYes
Communication functionNo
Measurement functionNo
Motor drive optionYes
Auxiliary CO contacts3
3VA1220-5EF42-0DH0 — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
Storage temperature, max.80 °C
Storage temperature, min.-40 °C
3VA1220-5EF42-0DH0 — Mechanical
ParameterValue
Mechanical service life (operating cycles), typ.20 000
Height158 mm
Width140 mm
Depth70 mm
Height (in)6.22 in
Width (in)5.51 in
Depth (in)2.76 in

Product details

The Siemens 3VA1220-5EF42-0DH0 is a SENTRON molded case circuit breaker (MCCB) rated for 200 A continuous current at 40 °C, with a breaking capacity of 187 kA at 240 V — that's the short-circuit rating that determines if this breaker clears a fault without upstream coordination issues.

Above that it drops to 194 A at 55 °C and 176 A at 70 °C, which is the operating limit (cites:-). Breaking capacity steps down with voltage: 121 kA at 415 V, 75.6 kA at 440 V, 30 kA at 500 V, and 17 kA at 690 V — the 187 kA at 240 V is the headline number for high-fault panels (cites:-).

Dimensions: 140 mm wide, 158 mm tall, 70 mm deep — it's a 4-pole frame so the width is the key fit check for DIN-rail or panel-mount spacing (cites:-).

Frequently asked questions

Where can I buy 3VA1220-5EF42-0DH0 and get a price?

This part is sourced to order against an RFQ through independent distribution channels. Submit a request for quote; availability and current pricing are confirmed at quote time.

Will 3VA1220-5EF42-0DH0 drop into a panel specified around 5SQ2670-2YA63?

Both are 200 A 4-pole MCCBs, so the basic fit is similar. But the 3VA1220-5EF42-0DH0 carries an undervoltage release and specific auxiliary switch configuration (2 aux + 1 trip alarm) that may differ from the 5SQ2670-2YA63's wiring — verify the control circuit and mounting hole pattern before swapping.

What are the key ratings for 3VA1220-5EF42-0DH0?

Rated 200 A continuous at 40-50 °C ambient, 4-pole, with a breaking capacity of 187 kA at 240 V and 121 kA at 415 V. Insulation voltage is 800 V. Dimensions are 140 mm wide, 158 mm tall, 70 mm deep.

MPN
3VA1220-5EF42-0DH0
