What this 3VA1 switch disconnector is for

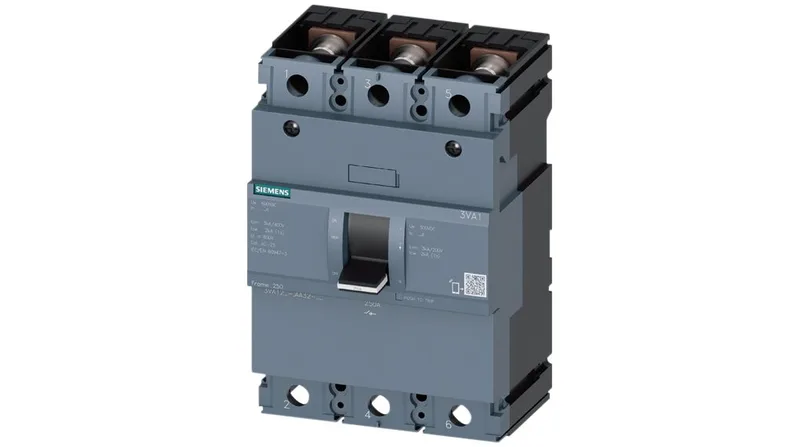

The Siemens 3VA1225-1AA32-0AA0 is a SENTRON 3VA1 IEC frame 250 switch disconnector — a 3-pole device rated 250 A at 690 V AC (500 V DC) that provides visible isolation for a circuit without overload or short-circuit protection. It is the disconnect-only variant in the 3VA molded-case family, designed for applications where the upstream feeder already provides protection and you need a load-break switch with a clear open position for lockout/tagout.
Above that it steps down: 243 A at 55 °C, 237 A at 60 °C, 230 A at 65 °C, and 223 A at 70 °C.
The main circuit connection is a front-terminal busbar connection, and the device accepts an optional motor drive for remote switching. IP40 protection on the front face suits enclosed panel mounting. The 15 000-cycle typical mechanical service life reflects a switch disconnector duty cycle — no arc-chamber wear from fault interruption.
