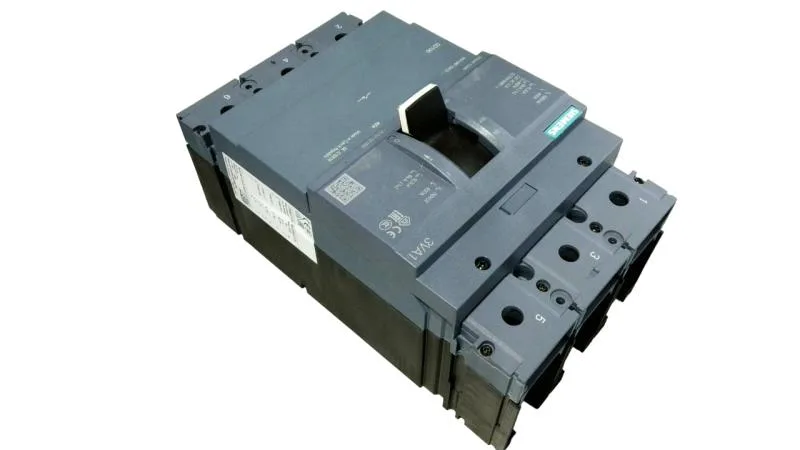

Siemens 3VA1340-1AA32-0AA0
MPN3VA1340-1AA32-0AA0
Active
switch disconnector 3VA1 IEC frame 400 3-pole SD100, In=400A without overload protection w/o short-circuit protection nut keeper kit
$328.93Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | Switch disconnector |
| Brand / range | SENTRON |
Ratings
| Parameter | Value |
|---|---|
| Number of poles | 3 |
| Rated operational voltage Ue (AC) | 690 V |
| Rated insulation voltage Ui | 800 V |
| Current at 40 °C | 400 A |
| Current at 45 °C | 400 A |
| Current at 50 °C | 400 A |
| Current at 55 °C | 400 A |
| Current at 60 °C | 400 A |
| Current at 65 °C | 400 A |
| Current at 70 °C | 400 A |
| Power loss, max. | 77 W |
Construction & Connection
| Parameter | Value |
|---|---|
| Main circuit connection type | busbar connection |
| Main circuit connector arrangement | Front terminal |
| Protection class (IP), front | IP40 |
Accessories & Functions
| Parameter | Value |
|---|---|
| Undervoltage release | No |
| Voltage trigger | No |
| Trip indicator | No |
| Motor drive option | Yes |
| Auxiliary CO contacts | 0 |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -25 °C |
| Storage temperature, max. | 80 °C |
| Storage temperature, min. | -40 °C |
Mechanical
| Parameter | Value |
|---|---|
| Mechanical service life (operating cycles), typ. | 15 000 |
| Height | 248 mm |
| Width | 138 mm |
| Depth | 110 mm |
MPN
3VA1340-1AA32-0AA0
