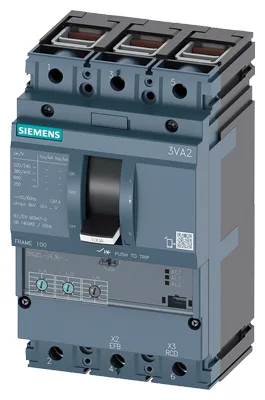

Siemens SENTRON molded case circuit breaker, 3VA2040-5HL36-0AA0, 3-pole, 40 A rated current, ETU320 electronic trip unit, 187 kA breaking capacity at 240 V AC.
| Parameter | Value |
|---|---|
| Product designation | Molded case circuit breaker |
| Brand / range | SENTRON |
| Parameter | Value |
|---|---|
| Number of poles | 3 |
| Rated operational voltage Ue (AC) | 690 V |
| Rated insulation voltage Ui | 800 V |
| Current at 40 °C | 40 A |
| Current at 45 °C | 40 A |
| Current at 50 °C | 40 A |
| Current at 55 °C | 40 A |
| Current at 60 °C | 40 A |
| Current at 65 °C | 40 A |
| Current at 70 °C | 40 A |
| Switching capacity class | M |
| Breaking capacity at 240 V | 187 kA |
| Breaking capacity at 415 V | 121 kA |
| Breaking capacity at 440 V | 121 kA |
| Breaking capacity at 500 V | 75.6 kA |
| Breaking capacity at 690 V | 3 kA |
| Power loss, max. | 2.2 W |
| Parameter | Value |
|---|---|
| Overcurrent release (trip unit) type | ETU320 |
| Overcurrent protection function | LI |
| Ground-fault monitoring | Without |
| Grounding protection function | No |
| Parameter | Value |
|---|---|
| Main circuit connection type | double-sided box terminal |
| Main circuit connector arrangement | Front terminal |
| Protection class (IP), front | IP40 |
| Parameter | Value |
|---|---|
| Undervoltage release | No |
| Voltage trigger | No |
| Trip indicator | No |
| Communication function | No |
| Measurement function | No |
| Motor drive option | Yes |
| Auxiliary CO contacts | 0 |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -25 °C |
| Storage temperature, max. | 80 °C |
| Storage temperature, min. | -40 °C |
| Parameter | Value |
|---|---|
| Mechanical service life (operating cycles), typ. | 25 000 |
| Height | 181 mm |
| Width | 105 mm |
| Depth | 86 mm |
| Height (in) | 7.13 in |
| Width (in) | 4.13 in |
| Depth (in) | 3.39 in |
Breaking capacity tells the real story for fault coordination: 187 kA at 240 V, 121 kA at 415 V and at 440 V, then 75.6 kA at 500 V, dropping to 3 kA at 690 V.
IP40 on the front face means it's splash-protected from tools and fingers but not washdown; mount it inside a gasketed panel if the line sees hosedown.
187 kA at 240 V AC. That's the highest interrupting rating on the voltage table, suited for high-fault-current service entrances.
Both are 3-pole SENTRON MCCBs in the same 105 mm wide frame, so the footprint and mounting pattern match. The difference is in the trip unit and accessories — verify the 8HN42 variant's wiring scheme if your panel uses auxiliary contacts or shunt trips that this 5HL36 version may not carry.
