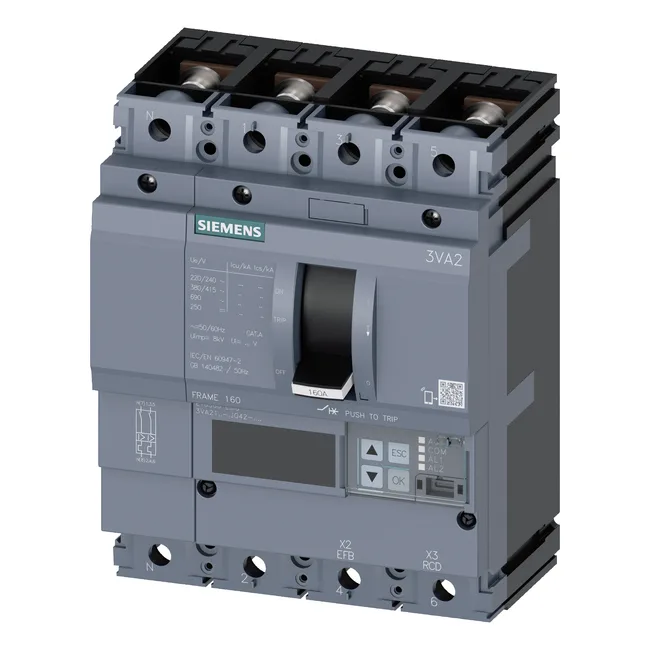

Siemens 3VA2163-5JQ42-0GF0 — Molded Case Circuit Breakers (MCCB)

Siemens 3VA2163-5JQ42-0GF0 SENTRON MCCB, 63 A, 187 kA at 240

MPN3VA2163-5JQ42-0GF0

Siemens SENTRON 3VA2163-5JQ42-0GF0, 4-pole molded case circuit breaker, 63 A rated continuous current, 187 kA interrupting capacity at 240 V, ETU560 electronic trip unit, IP40 front protection.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3VA2163-5JQ42-0GF0 — Identification
ParameterValue
Product designationMolded case circuit breaker
Brand / rangeSENTRON
Product versionLine protection
Basic switch (supplied) ref.3VA2163-5JQ42-0AA0
Integrated auxiliary / alarm switch ref.3VA9988-0AB12
3VA2163-5JQ42-0GF0 — Ratings
ParameterValue
Number of poles4
Current at 40 °C63 A
Current at 45 °C63 A
Current at 50 °C63 A
Current at 55 °C60.6375 A
Current at 60 °C58.275 A
Current at 65 °C55.9125 A
Current at 70 °C53.55 A
Switching capacity classM
Breaking capacity at 240 V187 kA
Breaking capacity at 415 V121 kA
Breaking capacity at 690 V3.75 kA
Power loss, max.5 W
3VA2163-5JQ42-0GF0 — Protection & Trip Unit
ParameterValue
Overcurrent release (trip unit) typeETU560
3VA2163-5JQ42-0GF0 — Construction & Connection
ParameterValue
Main circuit connection typeLug terminal
Main circuit connector arrangementFront terminal
Protection class (IP), frontIP40
3VA2163-5JQ42-0GF0 — Accessories & Functions
ParameterValue
Undervoltage releaseNo
Voltage triggerNo
Trip indicatorYes
Communication functionYes
Measurement functionNo
Motor drive optionYes
Auxiliary CO contacts2
3VA2163-5JQ42-0GF0 — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
Storage temperature, max.80 °C
Storage temperature, min.-40 °C
3VA2163-5JQ42-0GF0 — Mechanical
ParameterValue
Height181 mm
Width140 mm
Depth107 mm

Product details

At 415 V it still breaks 121 kA, so it's sized for high-fault industrial panels, not light commercial gear. The electronic trip unit is an ETU560, which gives you adjustable long-time, short-time, and instantaneous protection curves. That matters when you're coordinating with downstream breakers — you can shape the trip to avoid nuisance trips on motor inrush. The breaker also has a communication function, so it can talk to a BMS or PLC for remote monitoring and trip event logging.

That UVR is handy for safety circuits — if the control voltage drops, the breaker opens without waiting for an overcurrent event.

Temperature derating — don't ignore it

Above that, it starts to step down: 60.6 A at 55 °C, 58.3 A at 60 °C, 55.9 A at 65 °C, and 53.6 A at 70 °C.

Frequently asked questions

What are the interrupting ratings for 3VA2163-5JQ42-0GF0?

At 240 V it interrupts 187 kA, at 415 V it interrupts 121 kA, and at 690 V it interrupts 3.75 kA.

Will 3VA2163-5JQ42-0GF0 drop into a panel designed for 3VA2163-5HL32-0DB0?

Both are 4-pole SENTRON 3VA2 frame breakers with the same physical footprint, so the mechanical fit is the same. The difference is in the trip unit and accessories — the 5HL32 variant uses a different release. Check the wiring diagram for the auxiliary contacts and UVR before swapping.

Where can I buy 3VA2163-5JQ42-0GF0 and get current pricing?

This part is sourced to order against an RFQ through independent distribution. Submit a request for quote and we'll confirm availability and current pricing at that time.
