Siemens 3VA2225-5HN32-0AA0 — Molded Case Circuit Breakers (MCCB)

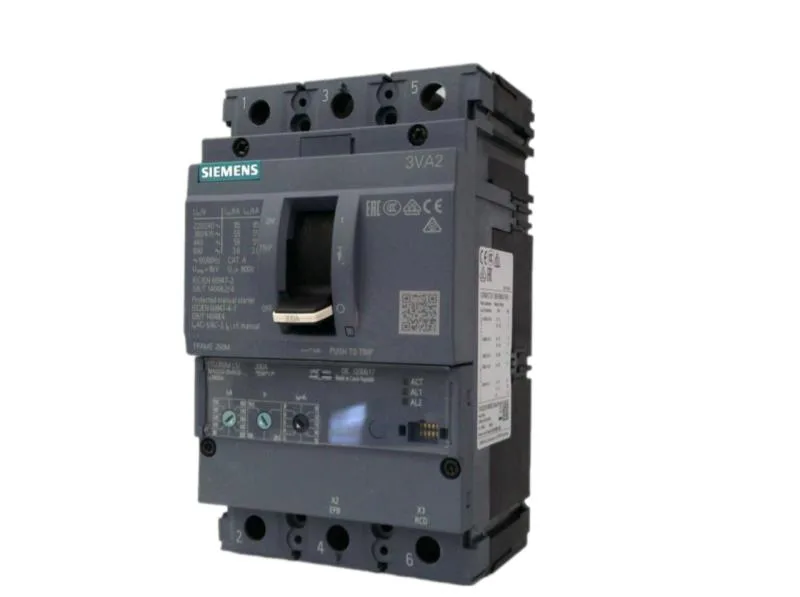

Siemens 3VA2225-5HN32-0AA0 SENTRON MCCB, 250 A, 3-Pole, ETU3

MPN3VA2225-5HN32-0AA0
Active

Siemens SENTRON 3VA2 series, molded case circuit breaker, 3VA2225-5HN32-0AA0, 3-pole, 250 A, ETU350 electronic trip unit, 187 kA at 240 V AC.

$447.04Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3VA2225-5HN32-0AA0 — Identification
ParameterValue
Product designationMolded case circuit breaker
Brand / rangeSENTRON
3VA2225-5HN32-0AA0 — Ratings
ParameterValue
Number of poles3
Rated operational voltage Ue (AC)690 V
Rated insulation voltage Ui800 V
Current at 40 °C250 A
Current at 45 °C250 A
Current at 50 °C250 A
Current at 55 °C241 A
Current at 60 °C232 A
Current at 65 °C222 A
Current at 70 °C213 A
Switching capacity classM
Breaking capacity at 240 V187 kA
Breaking capacity at 415 V121 kA
Breaking capacity at 440 V121 kA
Breaking capacity at 500 V75.6 kA
Breaking capacity at 690 V4.5 kA
Power loss, max.48 W
3VA2225-5HN32-0AA0 — Protection & Trip Unit
ParameterValue
Overcurrent release (trip unit) typeETU350
Overcurrent protection functionLSI
Ground-fault monitoringWithout
Grounding protection functionNo
3VA2225-5HN32-0AA0 — Construction & Connection
ParameterValue
Main circuit connection typeon both sides nut keeper kit
Main circuit connector arrangementFront terminal
Protection class (IP), frontIP40
3VA2225-5HN32-0AA0 — Accessories & Functions
ParameterValue
Undervoltage releaseNo
Voltage triggerNo
Trip indicatorNo
Communication functionNo
Measurement functionNo
Motor drive optionYes
Auxiliary CO contacts0
3VA2225-5HN32-0AA0 — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
Storage temperature, max.80 °C
Storage temperature, min.-40 °C
3VA2225-5HN32-0AA0 — Mechanical
ParameterValue
Mechanical service life (operating cycles), typ.25 000
Height181 mm
Width105 mm
Depth86 mm
Height (in)7.13 in
Width (in)4.13 in
Depth (in)3.39 in

Product details

The Siemens SENTRON 3VA2225-5HN32-0AA0 is a 3-pole molded case circuit breaker rated for 250 A continuous current at 40 °C, with an ETU350 electronic trip unit. What it does have is serious interrupting capacity: 187 kA at 240 V, 121 kA at 415 V and 440 V, 75.6 kA at 500 V, and 4.5 kA at 690 V. That's built for high-fault industrial distribution panels where a line-side short can dump serious energy downstream.

Thermal derating — the real-world current rating

Above that it drops linearly: 241 A at 55 °C, 232 A at 60 °C, 222 A at 65 °C, and 213 A at 70 °C.

Three-pole footprint, front IP40 protection — fine for a dry indoor panel but not washdown. No communication bus; it's a standalone thermal-magnetic (electronic trip) breaker. The ETU350 trip unit is adjustable, so you set the pickup and delay per the downstream load coordination study. No auxiliary contacts or shunt trip included on this order code; if you need remote trip indication or undervoltage release, that's a different variant.

Frequently asked questions

What is the interrupting rating of 3VA2225-5HN32-0AA0 at 240 V?

187 kA at 240 V AC. At 415 V and 440 V it's 121 kA; at 500 V it's 75.6 kA; at 690 V it's 4.5 kA.

Where can I buy 3VA2225-5HN32-0AA0?

This part is sourced to order against an RFQ through independent industrial distribution channels. Availability and current pricing are confirmed at quote time.

What is the continuous current rating and how does temperature affect it?

Rated 250 A continuous at 40 °C ambient. It holds at 250 A through 50 °C, then derates to 241 A at 55 °C, 232 A at 60 °C, 222 A at 65 °C, and 213 A at 70 °C.

What are the physical dimensions of 3VA2225-5HN32-0AA0?

Width 105 mm, height 181 mm, depth 86 mm. Three-pole molded case, front IP40 protection.
