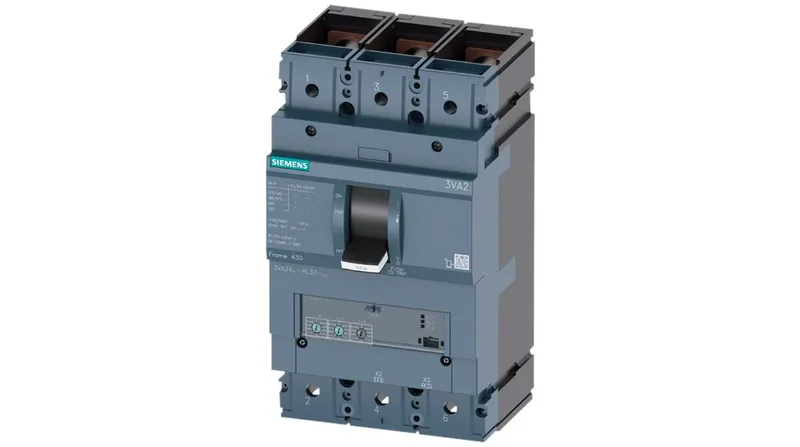

Siemens 3VA2463-5HL32-0AA0 — Molded Case Circuit Breakers (MCCB)

Siemens 3VA2463-5HL32-0AA0 MCCB, 630 A, 3-Pole, ETU320

MPN3VA2463-5HL32-0AA0
Active

Siemens SENTRON 3VA2 series, molded case circuit breaker (MCCB), 3VA2463-5HL32-0AA0, 630 A, 3-pole, ETU320 electronic trip unit, 187 kA at 240 V.

$871.22Ref. price · indicative, final on quote
Siemens 3VA2463-5HL32-0AA0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3VA2463-5HL32-0AA0 — Identification
ParameterValue
Product designationMolded case circuit breaker
Brand / rangeSENTRON
3VA2463-5HL32-0AA0 — Ratings
ParameterValue
Number of poles3
Rated operational voltage Ue (AC)690 V
Rated insulation voltage Ui800 V
Current at 40 °C630 A
Current at 45 °C612 A
Current at 50 °C593 A
Current at 55 °C575 A
Current at 60 °C557 A
Current at 65 °C538 A
Current at 70 °C520 A
Switching capacity classM
Breaking capacity at 240 V187 kA
Breaking capacity at 415 V121 kA
Breaking capacity at 440 V121 kA
Breaking capacity at 500 V75.6 kA
Breaking capacity at 690 V9 kA
Power loss, max.162 W
3VA2463-5HL32-0AA0 — Protection & Trip Unit
ParameterValue
Overcurrent release (trip unit) typeETU320
Overcurrent protection functionLI
Ground-fault monitoringWithout
Grounding protection functionNo
3VA2463-5HL32-0AA0 — Construction & Connection
ParameterValue
Main circuit connection typeon both sides nut keeper kit
Main circuit connector arrangementFront terminal
Protection class (IP), frontIP40
3VA2463-5HL32-0AA0 — Accessories & Functions
ParameterValue
Undervoltage releaseNo
Voltage triggerNo
Trip indicatorNo
Communication functionNo
Measurement functionNo
Motor drive optionYes
Auxiliary CO contacts0
3VA2463-5HL32-0AA0 — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
Storage temperature, max.80 °C
Storage temperature, min.-40 °C
3VA2463-5HL32-0AA0 — Mechanical
ParameterValue
Mechanical service life (operating cycles), typ.20 000
Height248 mm
Width138 mm
Depth110 mm
Height (in)9.76 in
Width (in)5.43 in
Depth (in)4.33 in

Product details

The 3-pole frame breaks fault currents up to 187 kA at 240 V, 121 kA at 415 V, and still clears 9 kA at 690 V.

Ratings that matter for the panel

That means you can dial in selectivity with downstream breakers instead of oversizing the whole string. Thermal derating is published across the operating range: 630 A at 40 °C drops to 520 A at 70 °C (–). Maximum power loss is 162 W, which adds to the enclosure heat budget; factor it into your ventilation calc. No trip indicator and no communication function, so this is a straight power breaker, not a smart metering device.

Frequently asked questions

How do I get current pricing and availability for 3VA2463-5HL32-0AA0?

Submit an RFQ through this listing. The part is sourced to order via independent distribution; exact pricing and lead time are confirmed at quote time.

What are the key ratings for this MCCB?

Continuous current 630 A at 40 °C, 3-pole, ETU320 electronic trip, breaking capacity 187 kA at 240 V and 121 kA at 415 V.

Does this breaker fit in a standard 3-pole MCCB footprint?

The dimensions are 248 mm high, 138 mm wide, 110 mm deep — typical for a 630 A frame. Mounting and bus-bar centers match the SENTRON 3VA2 family; verify against your existing panel layout.
