Siemens SENTRON TA1.1 circular conductor terminal, 3 units, 8 AWG–3/0 AWG copper, 55–100 lb-in torque, 0.48 in strip length.
| Parameter | Value |
|---|---|
| Product designation | accessories |
| Accessories | Wire connector |
| Parameter | Value |
|---|---|
| Solid | 8 AWG: 55 lb-in 6 - 3/0 AWG: 100 lb-in |
| Stranded | 8 AWG: 55 lb-in 6 - 3/0 AWG: 100 lb-in |
| Finely stranded | 8 AWG: 55 lb-in 6 - 3/0 AWG: 100 lb-in |
| Stripped length | 0.48 in |
| Design of the product | circular conductor terminal 1 cable 3 units |
| Designation (Of the terminal) | TA1.1 |
| For aluminum cable (Solid, maximum) | 16 mm² |
| For aluminum cable (Solid, minimum) | 10 mm² |
| For copper cable (Stranded, maximum) | 3/0 AWG |
| For copper cable (Stranded, minimum) | 8 AWG |
| For aluminum cable (Stranded, maximum) | 3/0 AWG |
| For aluminum cable (Stranded, minimum) | 12 AWG |
| For copper cable (Finely stranded, maximum) | 3/0 AWG |
| For copper cable (Finely stranded, minimum) | 8 AWG |
| Type of electrical connection (With control wire tap) | No |

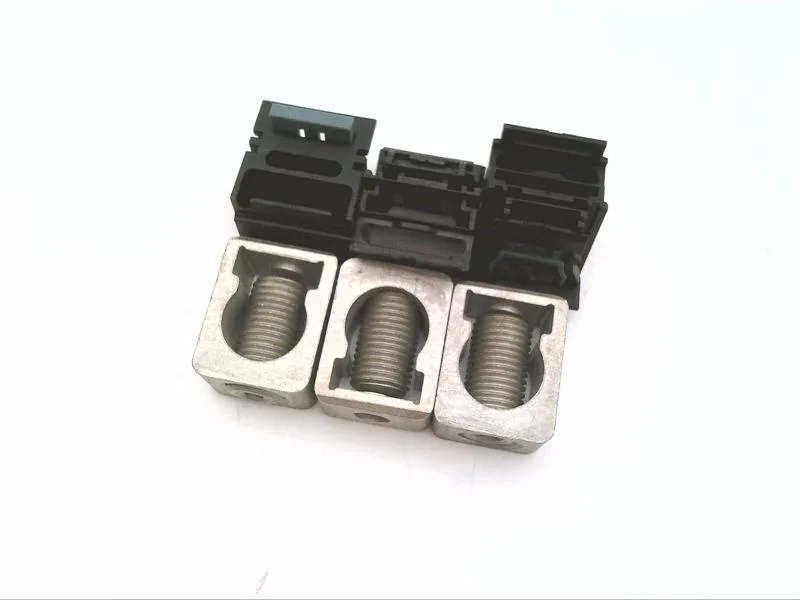

The Siemens 3VA9133-0JB11 is a SENTRON TA1.1 circular conductor terminal — a wire connector sold as a 3-unit pack, designed as an accessory for the 3VA4/5 125 molded-case circuit breaker frame. It accepts copper cable from 8 AWG up to 3/0 AWG in stranded and finely stranded builds, with a stripped length of 0.48 in.
The TA1.1 terminal is an accessory for the 3VA4/5 125 A frame MCCB. No control-wire tap is integrated; this is a straight power connector for the main circuit path.
It accepts copper cable from 8 AWG minimum to 3/0 AWG maximum for stranded and finely stranded conductors. Torque is 55 lb-in for 8 AWG and 100 lb-in for 6 through 3/0 AWG. Strip length is 0.48 in.
