Siemens 3VA9233-0JG12 — Circuit Breaker Accessories

Siemens SENTRON 3VA9233-0JG12 Wire Connector TA1.4, 6 AWG–35

MPN3VA9233-0JG12
Active

Siemens SENTRON accessories, circular conductor terminal voltage tap TA1.4, 3 units, 3VA9233-0JG12, for 6 AWG–350 kcmil stranded / 16 mm² solid aluminum.

$19.05Ref. price · indicative, final on quote
Siemens 3VA9233-0JG12 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

3VA9233-0JG12 — Identification
ParameterValue
Product designationaccessories
AccessoriesWire connector
3VA9233-0JG12 — Other specifications
ParameterValue
Solid16 mm²: 15.8 Nm
Stranded6 - 2 AWG: 140 lb-in, 1 AWG - 350 kcmil: 275 lb-in
Finely stranded6 - 2 AWG: 140 lb-in, 1 AWG - 350 kcmil: 275 lb-in
Stripped length0.8 in
Design of the productcircular conductor terminal voltage tap 3 units
Designation (Of the terminal)TA1.4
For aluminum cable (Solid, maximum)16 mm²
For aluminum cable (Solid, minimum)16 mm²
For copper cable (Stranded, maximum)350 kcmil
For copper cable (Stranded, minimum)6 AWG
For aluminum cable (Stranded, maximum)350 kcmil
For aluminum cable (Stranded, minimum)6 AWG
For copper cable (Finely stranded, maximum)350 kcmil
For copper cable (Finely stranded, minimum)6 AWG
Type of electrical connection (With control wire tap)Yes

Product details

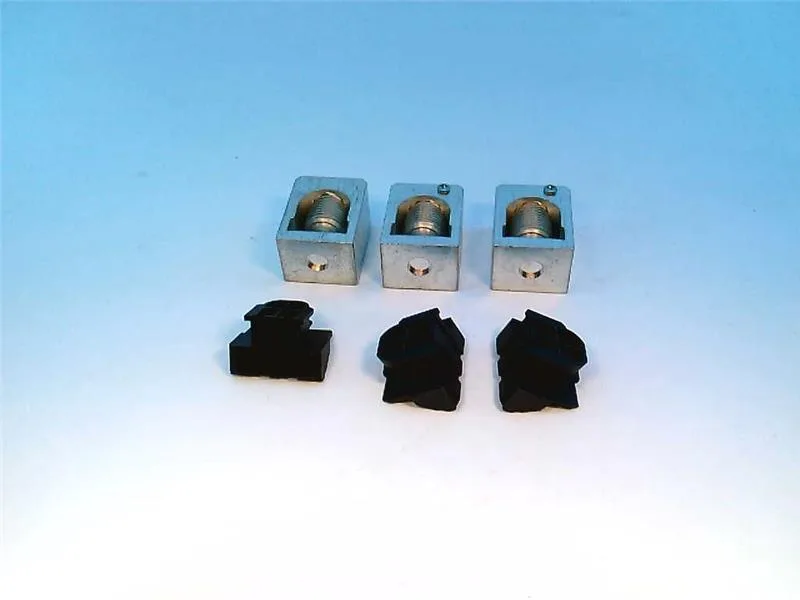

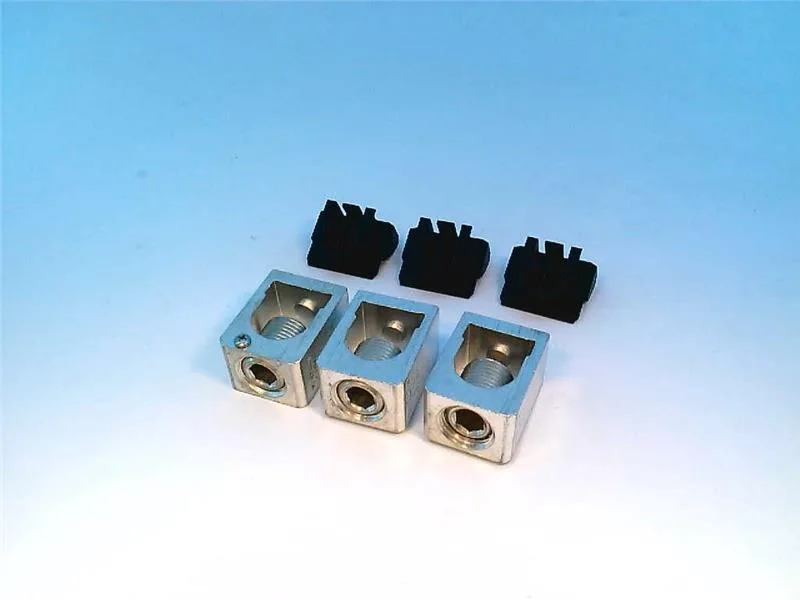

The Siemens SENTRON 3VA9233-0JG12 is a TA1.4 circular conductor terminal with a control-wire voltage tap-off, sold as a pack of three units. It is designed as an accessory for the 3VA5 250 molded-case circuit breaker family, giving you a dedicated tap point for metering, auxiliary control, or monitoring circuits without adding a separate terminal block.

Deployment context

Mounts inside a panel on the line side of a 3VA5 250 breaker. The voltage tap-off lets you pull a control-circuit feed directly from the load-side bus — useful for a panel-mounted power supply, a contactor coil, or a PLC input module — without a separate fused tap. The three-unit pack covers a three-pole breaker or two single-pole taps with one spare.

Frequently asked questions

Where can I buy 3VA9233-0JG12 and how do I get a price?

The part is sourced and quoted to order against an RFQ through independent distribution channels. Submit an RFQ for current availability and pricing — no stock count or price figure is published here.

What wire sizes and torque values does the TA1.4 terminal accept?

Stranded copper or aluminum: 6 AWG–350 kcmil with torque of 140 lb-in (6–2 AWG) and 275 lb-in (1 AWG–350 kcmil). Solid aluminum: 16 mm² at 15.8 Nm. Strip length is 0.8 in.
