Siemens 3VA9233-0JH11 — Circuit Breaker Accessories

Siemens 3VA9233-0JH11 SENTRON Box Terminal, 10 AWG–3/0 AWG,

MPN3VA9233-0JH11
Active

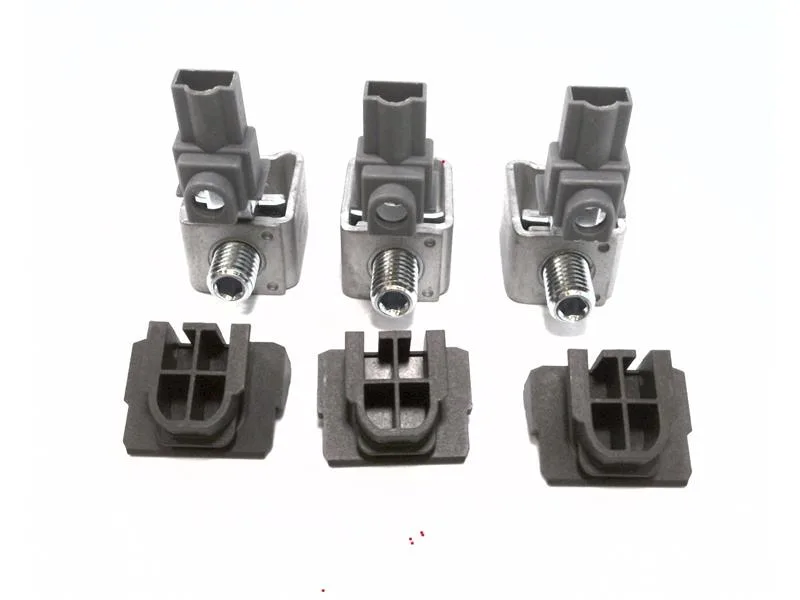

Siemens SENTRON box terminal TS1.2, 3 units, 10 AWG–3/0 AWG copper, 105–140 lb-in torque, with control wire voltage tap-off, accessories for 3VA5 250.

$24.13Ref. price · indicative, final on quote
Siemens 3VA9233-0JH11 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3VA9233-0JH11 — Identification
ParameterValue
Product designationaccessories
AccessoriesBox terminal
3VA9233-0JH11 — Other specifications
ParameterValue
Solid10 AWG: 105 lb-in
Stranded10 - 4 AWG: 105 lb-in 3 - 3/0 AWG: 140 lb-in
Finely stranded10 - 4 AWG: 105 lb-in 3 - 3/0 AWG: 140 lb-in
Stripped length0.75 in
Design of the productbox terminal with voltage tap 3 items
Designation (Of the terminal)TS1.2
For copper cable (Solid, maximum)10 AWG
For copper cable (Solid, minimum)10 AWG
For copper cable (Stranded, maximum)3/0 AWG
For copper cable (Stranded, minimum)10 AWG
For copper cable (Finely stranded, maximum)3/0 AWG
For copper cable (Finely stranded, minimum)10 AWG
Type of electrical connection (With control wire tap)Yes

Product details

The Siemens 3VA9233-0JH11 is a SENTRON box terminal with an integrated voltage tap — a TS1.2 terminal block, supplied as a set of three units, designed as accessories for the 3VA5 250 molded-case circuit breaker family. It accepts solid copper from 10 AWG minimum to 10 AWG maximum, stranded and finely stranded copper from 10 AWG up to 3/0 AWG, with a stripped length of 0.75 in.

The control wire voltage tap means this terminal doubles as a takeoff point for a pilot light, auxiliary relay coil, or a PLC digital input — no separate tap block needed. That saves a DIN-rail position and one wiring step per phase.

Panel integration

This is a box terminal — it mounts directly to the 3VA5 250 breaker's line or load lugs, not to a DIN rail. No additional enclosure cutout or rail space consumed. Stripped length of 0.75 in matches the lug class standard for North American panel feeders.

Frequently asked questions

Will 3VA9233-0JH11 drop into a panel specified around 5SL4363-7?

No — the 5SL4363-7 is a 3-pole miniature circuit breaker; the 3VA9233-0JH11 is a box terminal accessory for the 3VA5 250 breaker frame. They serve different functions and are not mechanically interchangeable.

What compliance documentation does Siemens provide for 3VA9233-0JH11?

As a SENTRON accessory for the 3VA5 series, standard Siemens declarations (CE, UKCA, RoHS, REACH) apply. Specific certificate numbers are available on request at quote time.
