Lifecycle and sourcing
The 3VA9243-0JK12 carries an active lifecycle status. It is sourced to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

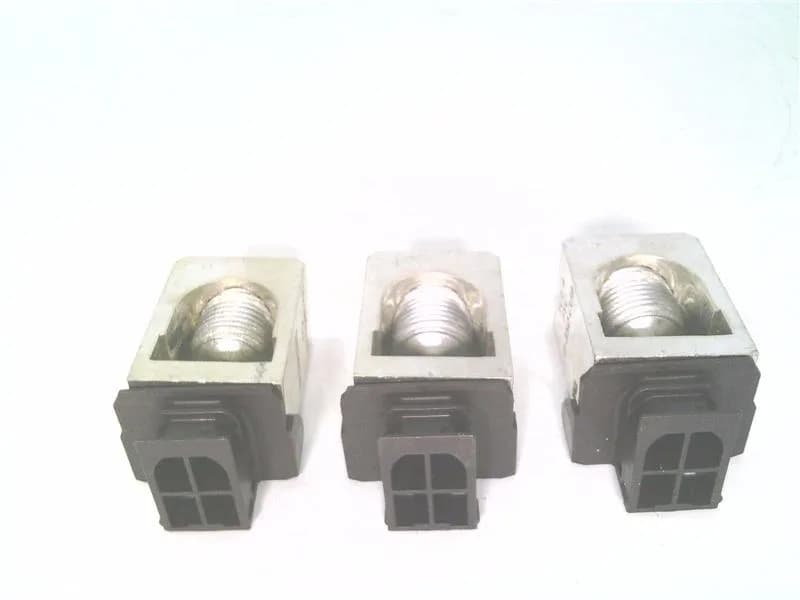

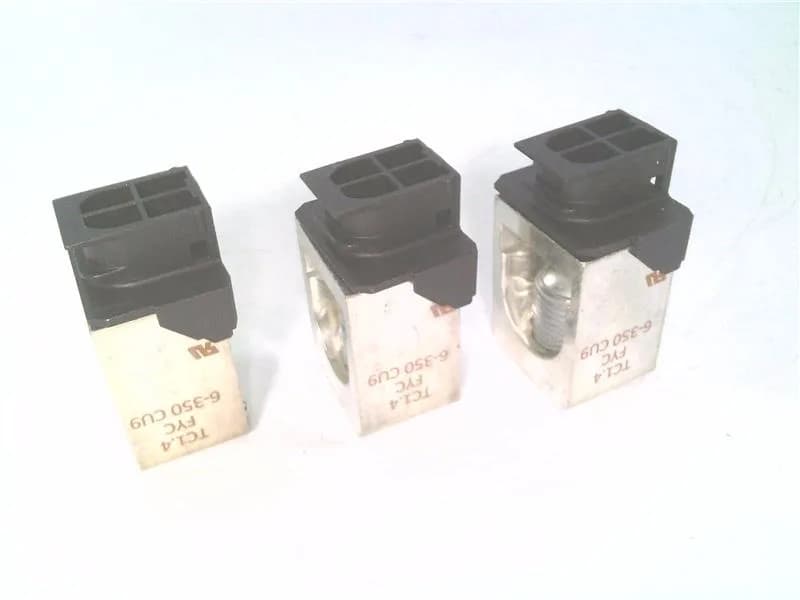

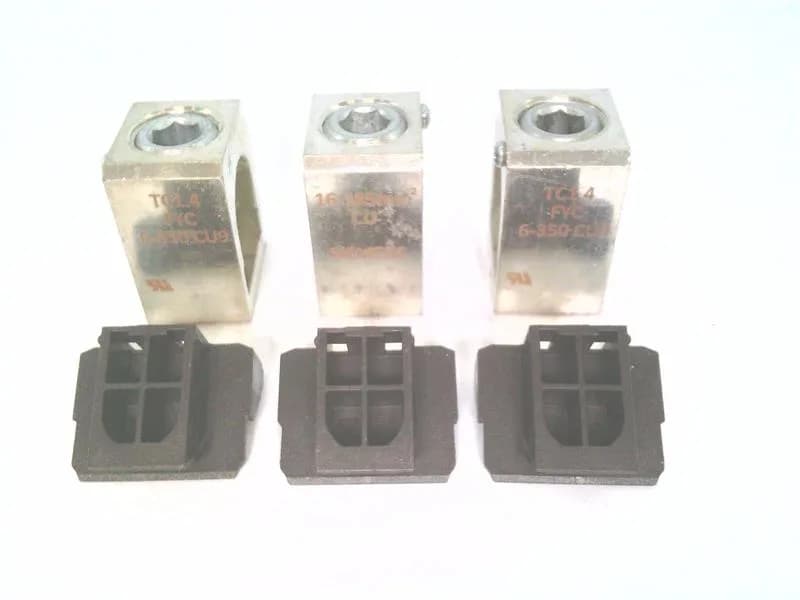

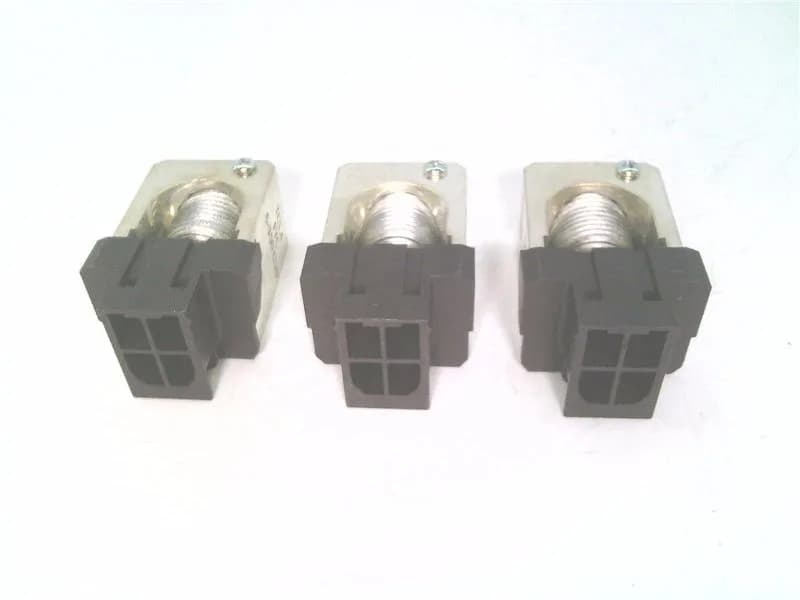

Siemens 3VA9243-0JK12 SENTRON Wire Connector, 6 AWG–350 kcmi
MPN3VA9243-0JK12
Active
Siemens SENTRON accessories, circular conductor terminal TC1.4, 6 AWG–350 kcmil stranded Cu, with control wire voltage tap-off, 3 units, for 3VA6 150/250.
$67.31Ref. price · indicative, final on quote
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product designation | accessories |
| Accessories | Wire connector |
Other specifications
| Parameter | Value |
|---|---|
| Stranded | 6 - 2 AWG: 140 lb-in, 1 AWG - 350 kcmil: 275 lb-in |
| Finely stranded | 6 - 2 AWG: 140 lb-in, 1 AWG - 350 kcmil: 275 lb-in |
| Stripped length | 0.8 in |
| Design of the product | circular conductor terminal |
| Designation (Of the terminal) | TC1.4 |
| For copper cable (Stranded, maximum) | 350 kcmil |
| For copper cable (Stranded, minimum) | 6 AWG |
| For copper cable (Finely stranded, maximum) | 350 kcmil |
| For copper cable (Finely stranded, minimum) | 6 AWG |
| Type of electrical connection (With control wire tap) | Yes |
Product details
Frequently asked questions
What wire sizes and torque settings does the 3VA9243-0JK12 terminal accept?
It accepts stranded and finely stranded copper from 6 AWG to 350 kcmil. Torque is 140 lb-in for 6–2 AWG, and 275 lb-in for 1 AWG–350 kcmil. Strip length is 0.8 in.
What is the control wire tap-off on the 3VA9243-0JK12 used for?
The terminal includes a control wire voltage tap-off, allowing a smaller-gauge sense wire to be connected for monitoring voltage at the breaker load side without a separate tap block.
MPN
3VA9243-0JK12
