Integration note for 3VA1/3VA2 panels

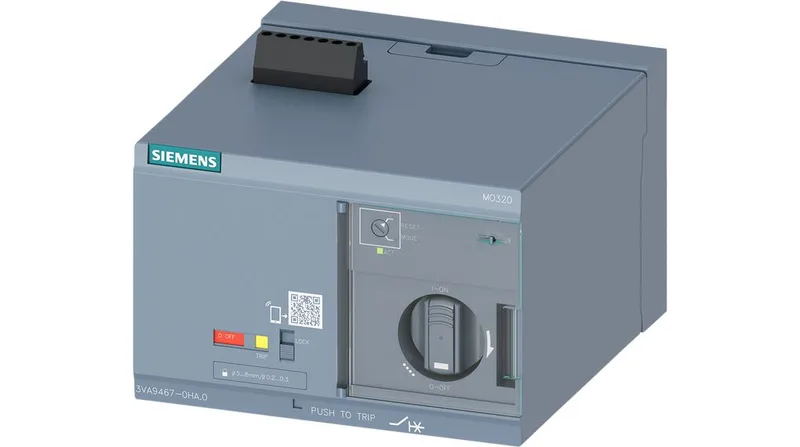

The Siemens 3VA9467-0HA10 is a SENTRON motorized operating mechanism designed for remote switching of the 3VA1 400/630 and 3VA2 400/630 breaker frames. It accepts a control supply from 24 V DC up to 60 V DC, drawing 250 VA during operation. Make time is 1.7 s, break time 1.3 s — typical for motor operators in this breaker class, adequate for panel-level automation sequences that do not require fast arc extinction. Temperature range spans -40 °C to 80 °C, so it can go into unheated enclosures or outdoor C&I panels as long as condensation is managed.
Physical fit and wiring
Footprint is 138 mm wide by 149 mm deep by 92 mm high — leaves clearance for cable entry on a standard DIN-rail or backplate mount. Wire strip length is 7 mm per terminal.
Sourcing note
Status shows Active — no lifecycle restrictions, so this is a standard-quote item. Lead time depends on distributor stocking; submit an RFQ against your BOM quantity to lock in a delivery window.
