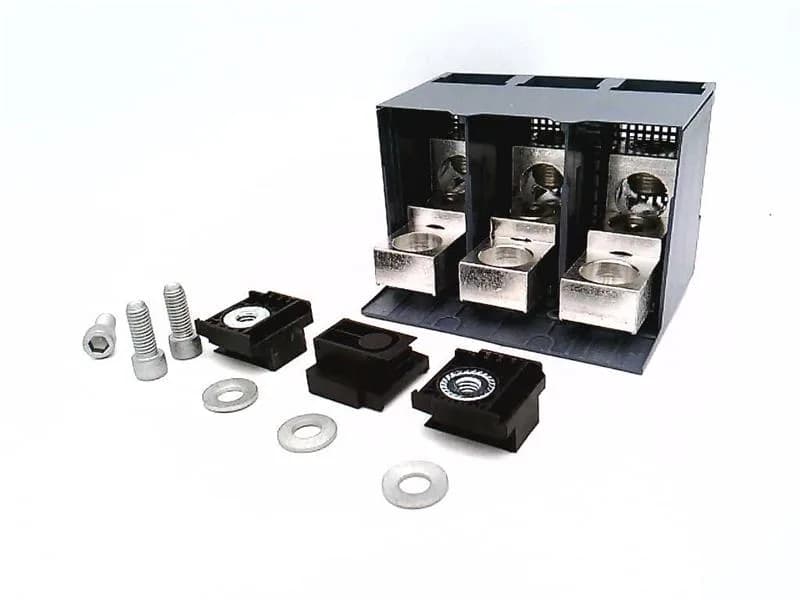

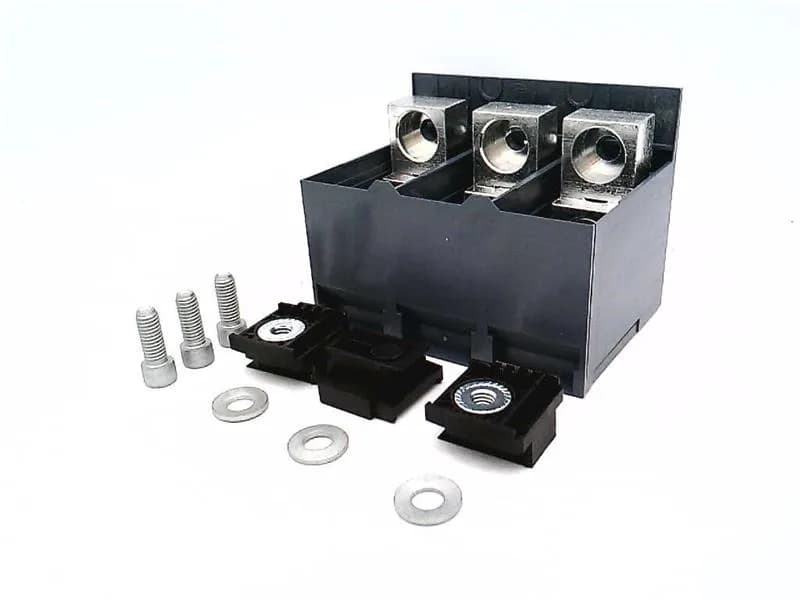

Siemens SENTRON TA2.4 circular conductor terminal, 3VA9473-0JJ23, 2 x 2/0…600 kcmil Cu/Al, 450 lb-in torque, 3 units.
| Parameter | Value |
|---|---|
| Product designation | accessories |
| Accessories | Wire connector |
| Parameter | Value |
|---|---|
| Stranded | 450 lb-in |
| Finely stranded | 450 lb-in |
| Stripped length | 1.2 / 2.3 in |
| Design of the product | circular conductor terminal |
| Designation (Of the terminal) | TA2.4 |
| For copper cable (Stranded, maximum) | 600 kcmil |
| For copper cable (Stranded, minimum) | 2/0 AWG |
| For aluminum cable (Stranded, maximum) | 600 kcmil |
| For aluminum cable (Stranded, minimum) | 2/0 AWG |
| For copper cable (Finely stranded, maximum) | 600 kcmil |
| For copper cable (Finely stranded, minimum) | 2/0 AWG |
| Type of electrical connection (With control wire tap) | No |
The 3VA9473-0JJ23: Strip length is 1.2 / 2.3 in — the shorter value for the smaller conductor range, the longer for the full 600 kcmil termination. No control wire tap on this version, so it's a straight power lug; auxiliary or control connections need a separate terminal block. Three units per order code, which covers a 3-pole breaker set.
It accepts stranded and finely stranded copper from 2/0 AWG minimum to 600 kcmil maximum, and the same 2/0–600 kcmil range for aluminum conductors (–).
No — 5SL4363-7 is a SENTRON miniature circuit breaker, not a 3VA5/6 frame breaker. The TA2.4 terminal is designed specifically for the 3VA5/6 400/600 A platform and uses a different mounting interface and conductor pad geometry.
