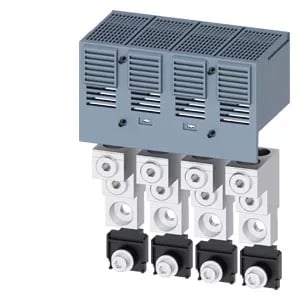

Siemens SENTRON TA2.4 circular conductor terminal, order code 3VA9474-0JJ23, for 2 x 2/0–600 kcmil copper or aluminum stranded cable, 450 lb-in torque, strip length 1.2 / 2.3 in.
| Parameter | Value |
|---|---|
| Product designation | accessories |
| Accessories | Wire connector |
| Parameter | Value |
|---|---|
| Stranded | 450 lb-in |
| Finely stranded | 450 lb-in |
| Product version | circular conductor terminal |
| Stripped length | 1.2 / 2.3 in |
| Designation (Of the terminal) | TA2.4 |
| For copper cable (Stranded, maximum) | 600 kcmil |
| For copper cable (Stranded, minimum) | 2/0 AWG |
| For aluminum cable (Stranded, maximum) | 600 kcmil |
| For aluminum cable (Stranded, minimum) | 2/0 AWG |
| For copper cable (Finely stranded, maximum) | 600 kcmil |
| For copper cable (Finely stranded, minimum) | 2/0 AWG |
| Type of electrical connection (With control wire tap) | No |
The 3VA9474-0JJ23: Strip length is 1.2 / 2.3 in — that's the range for the two cable entries. No control wire tap on this version, so it's a straight power lug. The TA2.4 designation means it's the two-cable variant in the SENTRON accessory family, sized for the larger 3VA frames.
This part is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.
It accepts copper or aluminum stranded cable from 2/0 AWG minimum to 600 kcmil maximum, and finely stranded copper cable in the same range. The torque spec is 450 lb-in for both stranded and finely stranded conductors.
