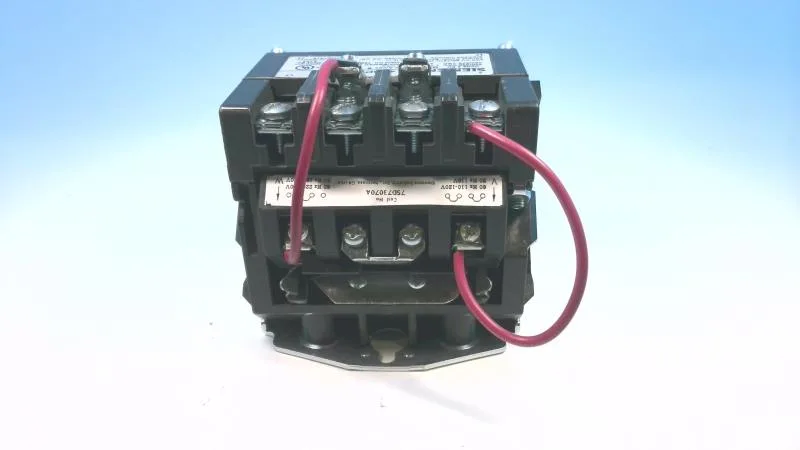

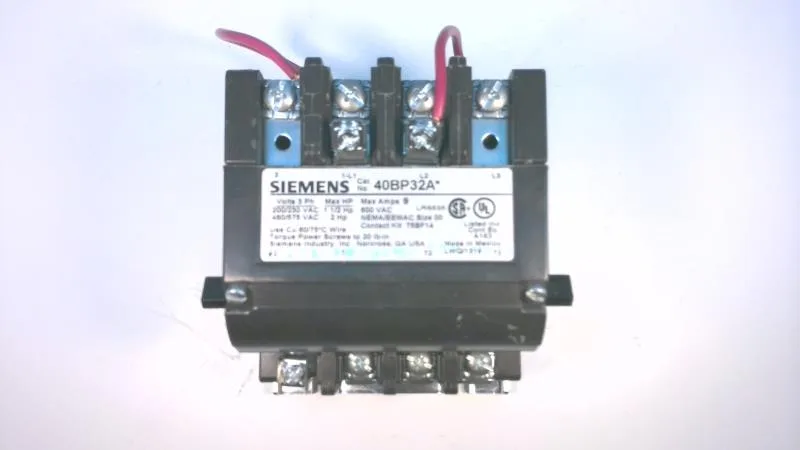

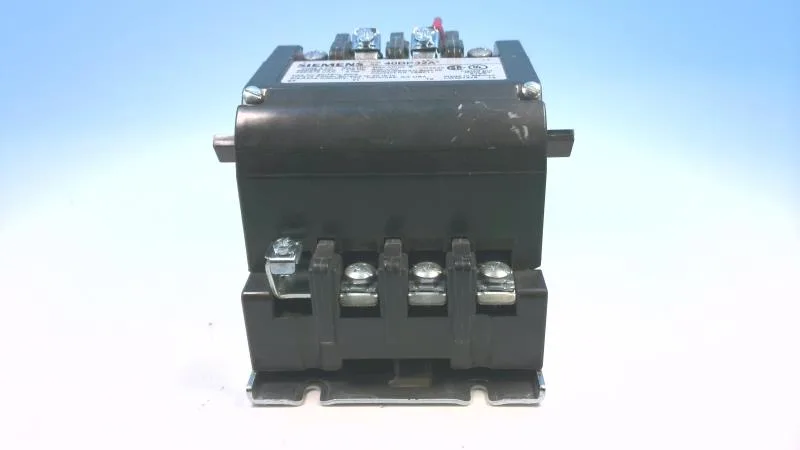

Siemens 40BP32AF
MPN40BP32AF
CONTACTOR|FUR 40BP32AF CONTACTOR, SZ00,3PH,OPN,120V,
$288.22 – $463.17Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 40 |
| Wire termination type | Screw |
| Coil voltage | 110/120V AC |
| Maximum voltage rating | 600V AC |
| Nominal coil voltage @ 60Hz | 120V AC |
| Full load current - inductive | 9 A |
| Full load current - resistive | Not Rated |
| Main power pole contact form | 3NO |
| Horsepower @ three phase - 208V AC | 1-1/2 hp |
| Horsepower @ three phase - 240V AC | 1-1/2 hp |
| Horsepower @ three phase - 480V AC | 2 hp |
| Horsepower @ three phase - 600V AC | 2 hp |
All specifications
| Parameter | Value |
|---|---|
| Frequency | 50/60 Hz |
| Poles | 3 |
| Phases | Three |
| NEMA enclosure rating | No Enclosure |
| Mounting style | Surface |
| Mounting postion | Vertical |
| Response time | 10 to 24 msec (OFF-Delay Time); 19 to 29 msec (ON-Delay Time) |
| Maximum operating temperature | 104 °F |
| Minimum operating temperature | -4 °F |
| Embedded surge suppressor - NEW | No |
| Overall depth | 3.75 in |
| Overall width | 4.25 in |
| Overall height | 4.31 in |
| Mechanical operating durability | 5,000,000 |
| Standards | REACH Art 33 |
| Brand | SIEMENS |
| NEMA size | 00 |
| Contactor style | NEMA |
| Reversing capability | Non-Reversing |
| Auxiliary contacts included | 1NO |
| Includes auxiliary contacts | Yes |
MPN
40BP32AF
