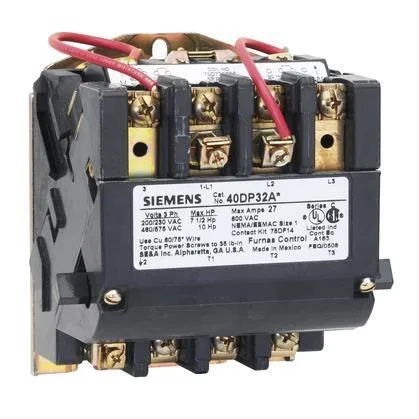

Siemens 40DP32AA
MPN40DP32AA
Contactor, Sz1,3ph,opn,120/240v|Sie 40dp32aa contactor Size-1 120v Open
$588.28Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 40 |
| Wire termination type | Screw |
| Coil voltage | 110-120/220-240V AC |
| Maximum voltage rating | 600V AC |
| Nominal coil voltage @ 60Hz | 120/240V AC (Dual Rated) |
| Full load current - inductive | 27 A |
| Full load current - resistive | Not Rated |
| Main power pole contact form | 3NO |
| Horsepower @ three phase - 208V AC | 7-1/2 hp |
| Horsepower @ three phase - 240V AC | 7-1/2 hp |
| Horsepower @ three phase - 480V AC | 10 hp |
| Horsepower @ three phase - 600V AC | 10 hp |
All specifications
| Parameter | Value |
|---|---|
| Frequency | 60 Hz |
| Poles | 3 |
| Phases | Three |
| NEMA enclosure rating | No Enclosure |
| Mounting style | Surface |
| Mounting postion | Vertical |
| Response time | 10 to 24 msec (OFF-Delay Time); 19 to 29 msec (ON-Delay Time) |
| Maximum operating temperature | 104 °F |
| Minimum operating temperature | -4 °F |
| Embedded surge suppressor - NEW | No |
| Overall depth | 3.75 in |
| Overall width | 4.25 in |
| Overall height | 4.31 in |
| Mechanical operating durability | 10,000,000 |
| Standards | REACH Art 33 |
| Brand | SIEMENS |
| NEMA size | 1 |
| Contactor style | NEMA |
| Reversing capability | Non-Reversing |
| Auxiliary contacts included | 1NO |
| Includes auxiliary contacts | Yes |
MPN
40DP32AA
