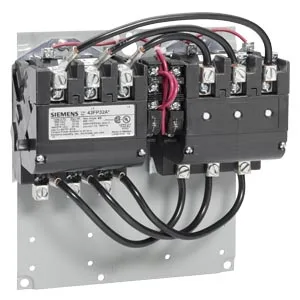

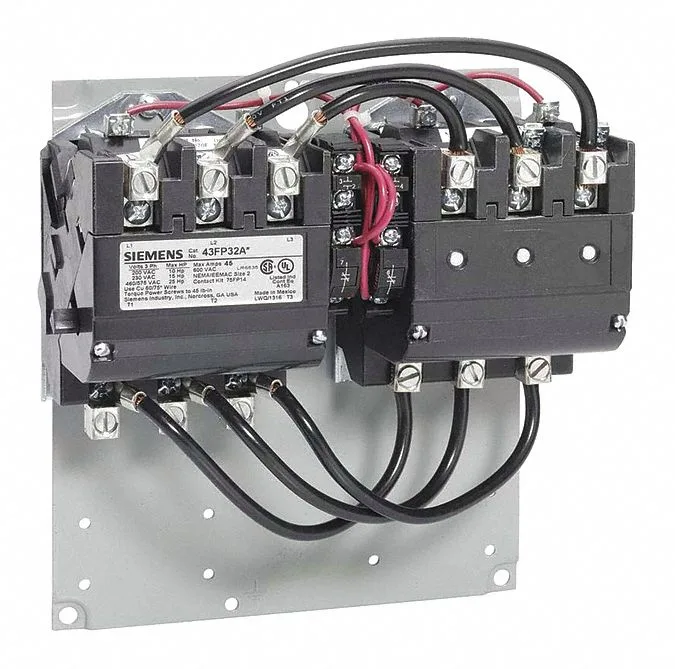

Siemens 43HP32AA
MPN43HP32AA
FUR 43HP32AA|FUR 43HP32AA CONTACTOR-REV,SZ3,3PH,OPN,120V-240V
$3,815.96 – $5,203.50Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 43 |
| Wire termination type | Screw |
| Coil voltage | 110-120/220-240V AC |
| Maximum voltage rating | 600V AC |
| Nominal coil voltage @ 60Hz | 120/240V AC (Dual Rated) |
| Full load current - inductive | 90 A |
| Full load current - resistive | Not Rated |
| Main power pole contact form | 3NO |
| Horsepower @ three phase - 208V AC | 25 hp |
| Horsepower @ three phase - 240V AC | 30 hp |
| Horsepower @ three phase - 480V AC | 50 hp |
| Horsepower @ three phase - 600V AC | 50 hp |
All specifications
| Parameter | Value |
|---|---|
| Frequency | 60 Hz |
| Poles | 3 |
| Phases | Three |
| NEMA enclosure rating | No Enclosure |
| Mounting style | Surface |
| Mounting postion | Vertical |
| Mounting hole diameter | 0.28 in |
| Response time | 14 to 19 msec (OFF-Delay Time); 26 to 41 msec (ON-Delay Time) |
| Maximum operating temperature | 104 °F |
| Minimum operating temperature | -4 °F |
| Embedded surge suppressor - NEW | No |
| Overall depth | 5.19 in |
| Overall width | 10.94 in |
| Overall height | 11.44 in |
| Mechanical operating durability | 5,000,000 |
| Standards | REACH Art 33 |
| Brand | SIEMENS |
| NEMA size | 3 |
| Contactor style | NEMA |
| Reversing capability | Reversing |
| Auxiliary contacts included | 2NO/2NC |
| Includes auxiliary contacts | Yes |
MPN
43HP32AA
