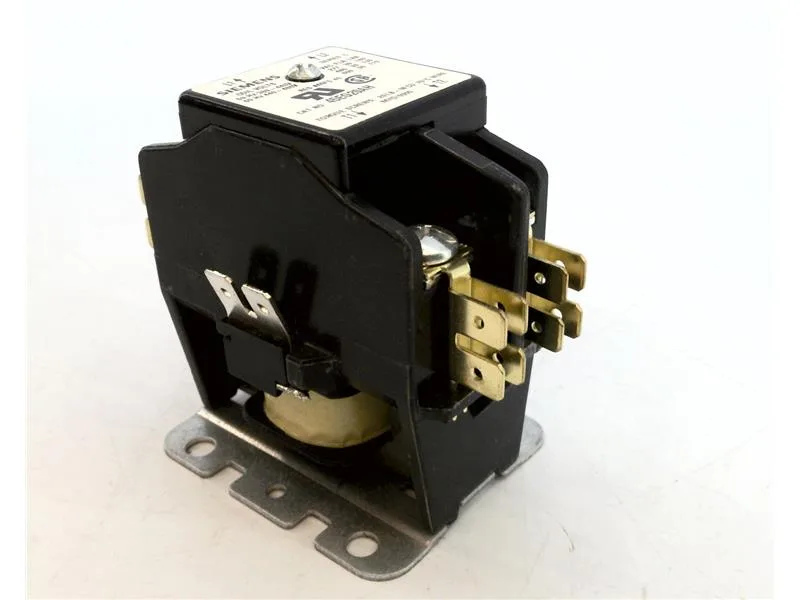

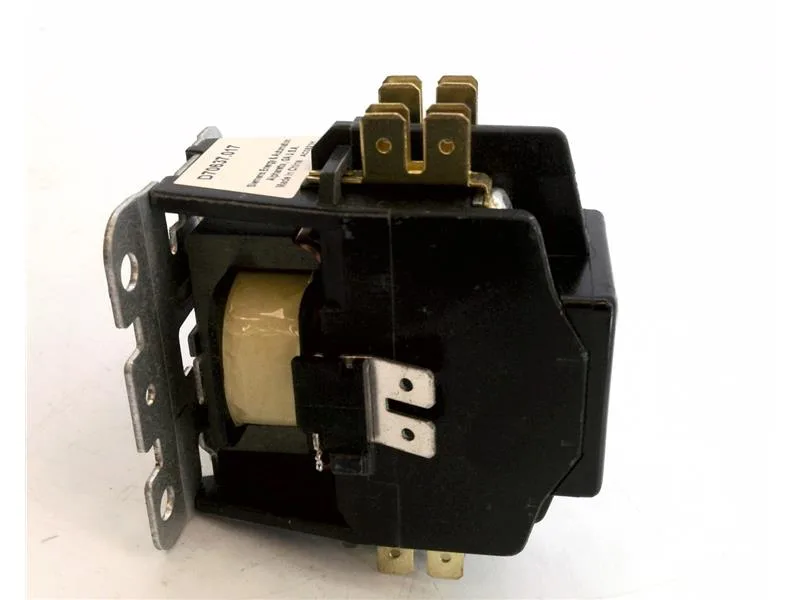

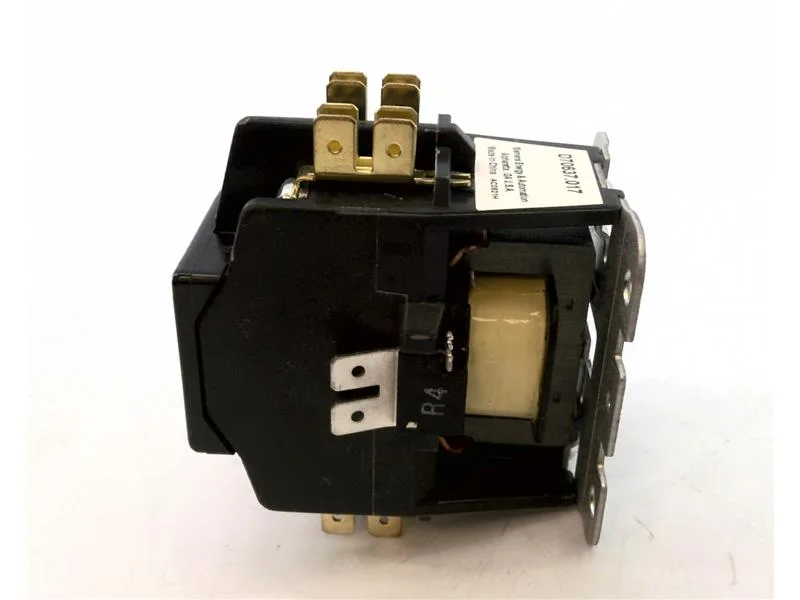

Siemens 45EG20AH
MPN45EG20AH
SIEMENS Definite Purpose Magnetic Contactor: 2 Poles, 480V AC, 30 A, Non-Reversing
$57.65 – $76.39Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 42 Series |
| Wire termination type | Screw |
| Coil voltage | 380-440/440-480V AC |
| Maximum voltage rating | 600V AC |
| Nominal coil voltage @ 60Hz | 480V AC |
| Full load current - inductive | 30 A |
| Full load current - resistive | 40 A |
| Horsepower @ three phase - 240V AC | 7-1/2 hp |
| Horsepower @ three phase - 600V AC | Not Rated |
| Horsepower @ single phase - 120V AC | 2 hp |
| Horsepower @ single phase - 240V AC | 3 hp |
| Frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles | 2 |
| Main pole contact form | 2NO |
| Phases | Three |
| NEMA enclosure rating | No Enclosure |
| Mounting postion | Vertical |
| Mounting hole distance - width | 1.61 in |
| Mounting hole distance - height | 1.77 in |
| Maximum operating temperature | 158 °F |
| Overall depth | 2.46 in |
| Overall width | 1.97 in |
| Overall height | 3.19 in |
| Contact material | Silver Cadmium Oxide |
| Contactor frame size | Standard |
| Mechanical operating durability | 250,000 |
| Standards | REACH Art 33 |
| Brand | SIEMENS |
| Locked rotor load | 180 A @ 240V; 180 A @ 277V |
| Reversing capability | Non-Reversing |
| Auxiliary contact module capacity | 0 |
MPN
45EG20AH
