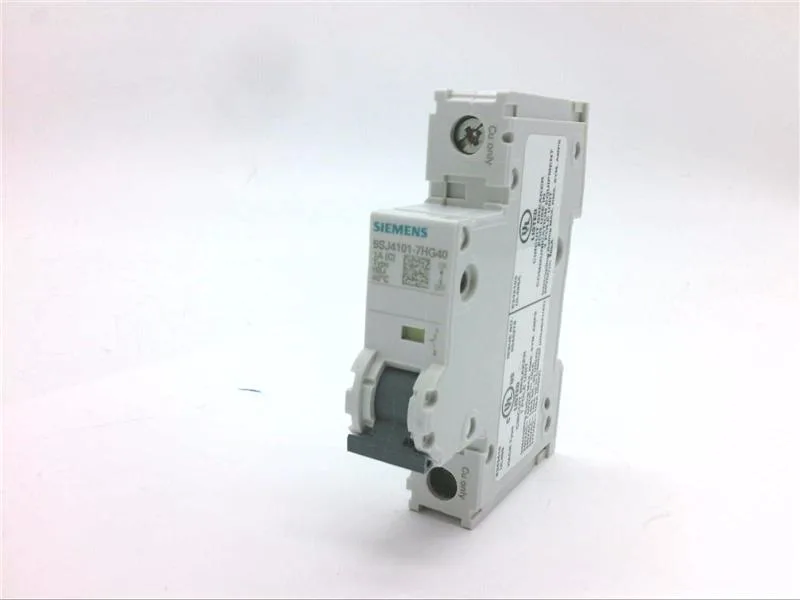

Siemens 5SJ4101-7HG40

Siemens 5SJ4101-7HG40 SENTRON MCB, 1P C-curve, 10/15 kA

MPN 5SJ4101-7HG40
Active

Siemens SENTRON 5SJ4 series miniature circuit breaker, 1-pole, tripping characteristic C, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC, 1 MW.

$27.94 – $80.55 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

5SJ4101-7HG40 specifications
ParameterValue
Poles1
Mountingon standard mounting rail
Depth70 mm
Width18 mm
Height90 mm

Product details

The Siemens SENTRON 5SJ4101-7HG40 is a 1-pole miniature circuit breaker (MCB) from the 5SJ4 series, designed for branch-circuit overcurrent protection in final distribution boards. The 10 kA breaking capacity per EN 60898 covers residential and light commercial panels; the 15 kA rating per IEC 60947-2 extends its reach into industrial sub-distribution where higher prospective fault currents are expected. At 400 V AC rated voltage, it handles line-to-neutral faults in 230/400 V systems cleanly.

Snaps onto standard 35 mm DIN rail (EN 60715) and occupies a single modular width (18 mm). The 70 mm depth means it sits flush with the rail profile — no extra clearance needed behind the panel door beyond the standard 70 mm backspace. Combined top and bottom tunnel terminals accept Cu conductors; tighten to 3.5 Nm. Any mounting position is allowed, which helps when you're packing a dense panel.

MPN
5SJ4101-7HG40
