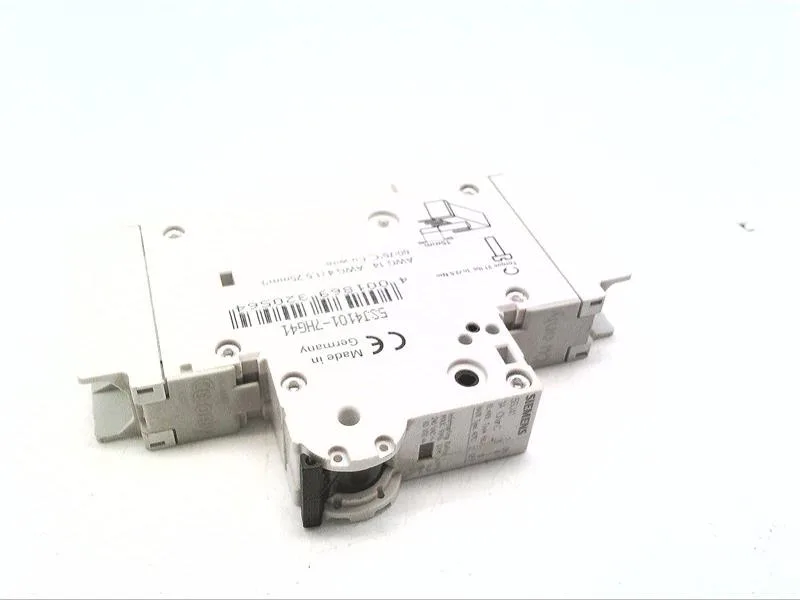

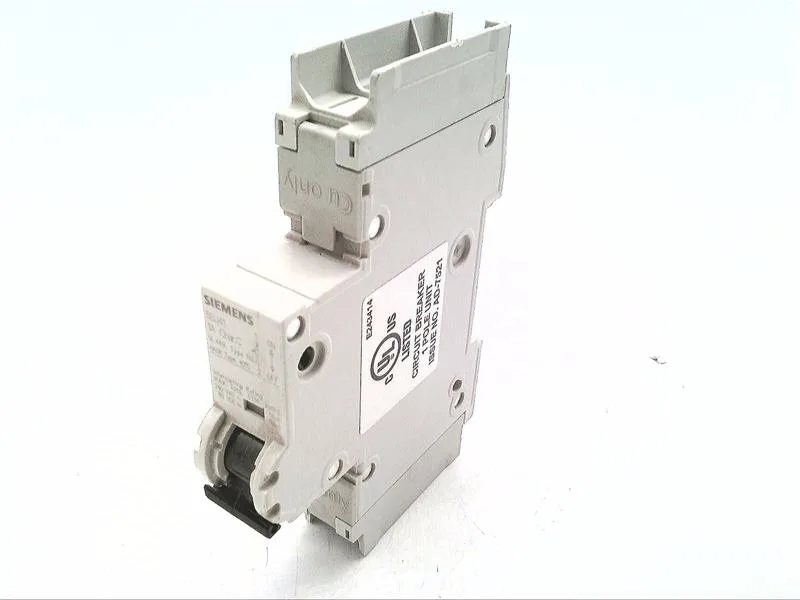

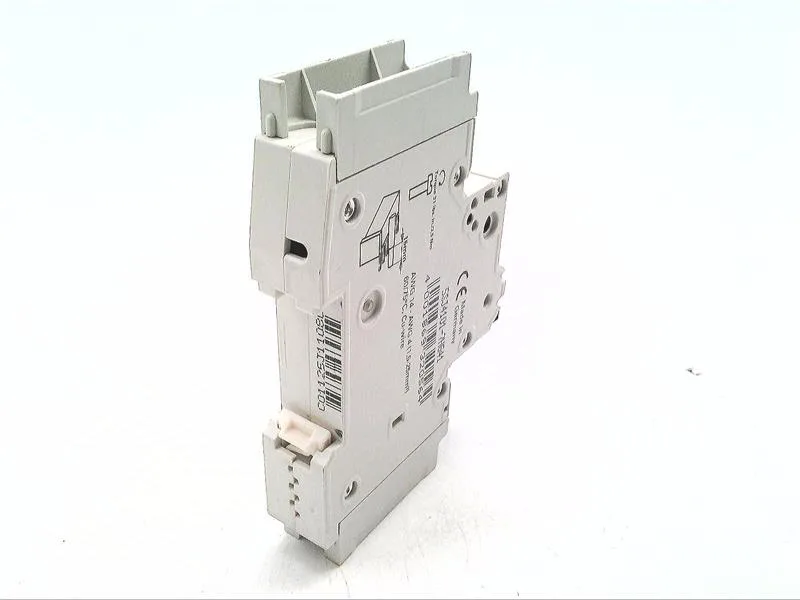

Siemens SENTRON 5SJ4 series, 5SJ4101-7HG41, 1-pole miniature circuit breaker, C characteristic, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 18 mm width.
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breakers |
| Brand name | SENTRON |
| Number of poles | 1 |
| Pole design | 1P |
| Application suitability | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic class | C |
| Overvoltage category | 3 |
| Parameter | Value |
|---|---|
| Mounting position | any |
| Fastening method | on standard mounting rail |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Width | 18 mm |
| Height | 110 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Modular width units | 1 |
| Torque, min. | -40 °C |
| Torque, max. | 75 °C |
| Sealable | Yes |
| Parameter | Value |
|---|---|
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Pollution degree | 3 |
| Halogen-free | Yes |
| Silicone-free | Yes |
It occupies one modular width (18 mm) and snaps onto standard DIN rail. Breaking capacity is 10 kA per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC. The 440 V insulation voltage (Ui) gives headroom for 400 V line-to-line systems.
Ambient range is -40 to 75 °C with up to 95 % humidity. IP20 with conductors connected; IP40 in the handle area — fine for enclosed panels, but don't leave the front exposed to washdown.
1-pole, C characteristic, 10 kA breaking capacity per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC. Insulation voltage 440 V. Width 18 mm, depth 70 mm, height 110 mm. Ambient temperature range -40 to 75 °C.
Both are 1-pole MCBs on 18 mm width, but the 5SL4363-7 is a 63 A B-curve device with different breaking capacities. The 5SJ4101-7HG41 has a C curve and its ratings differ; verify the load and fault current requirements before swapping. Footprint is the same modular width.
