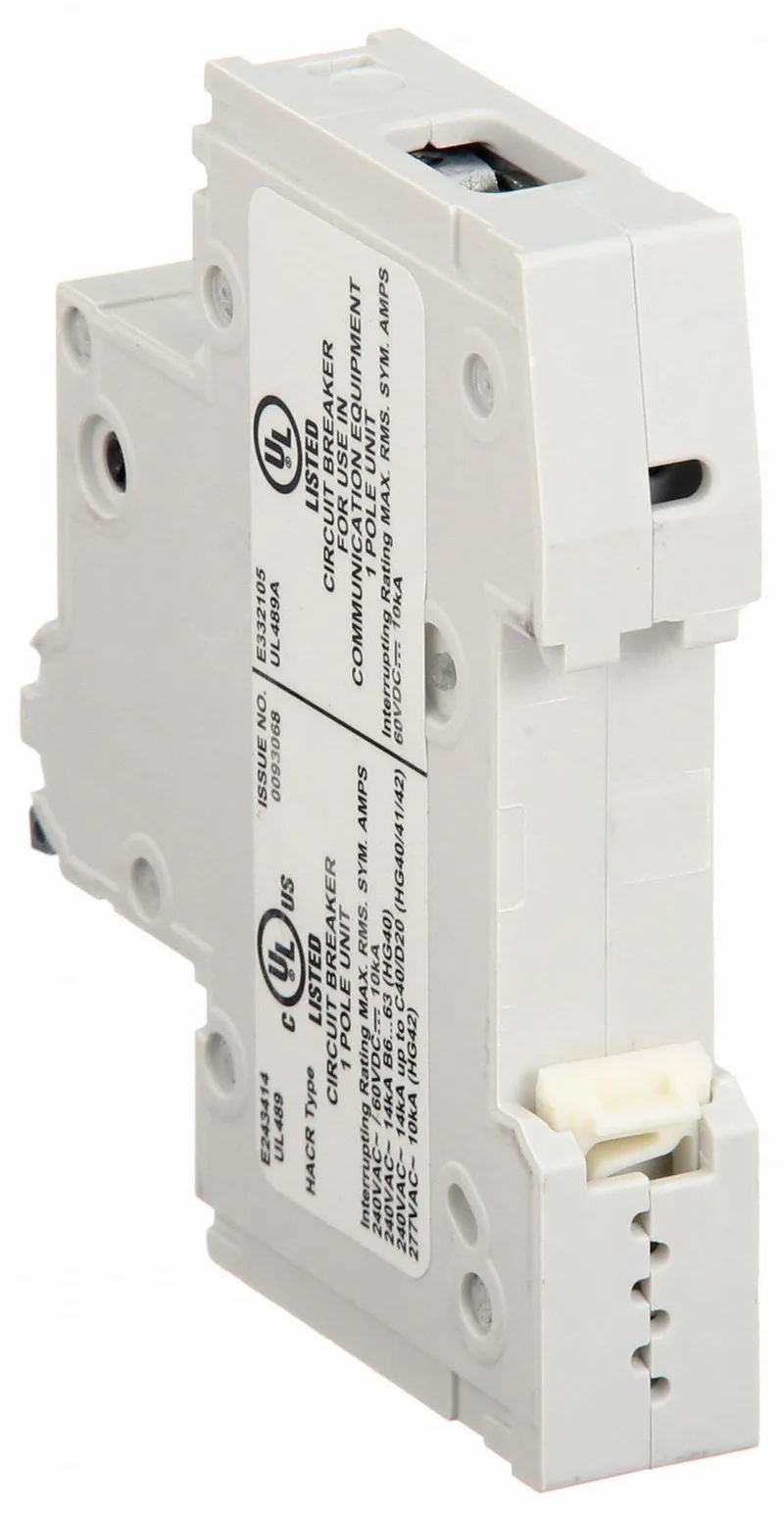

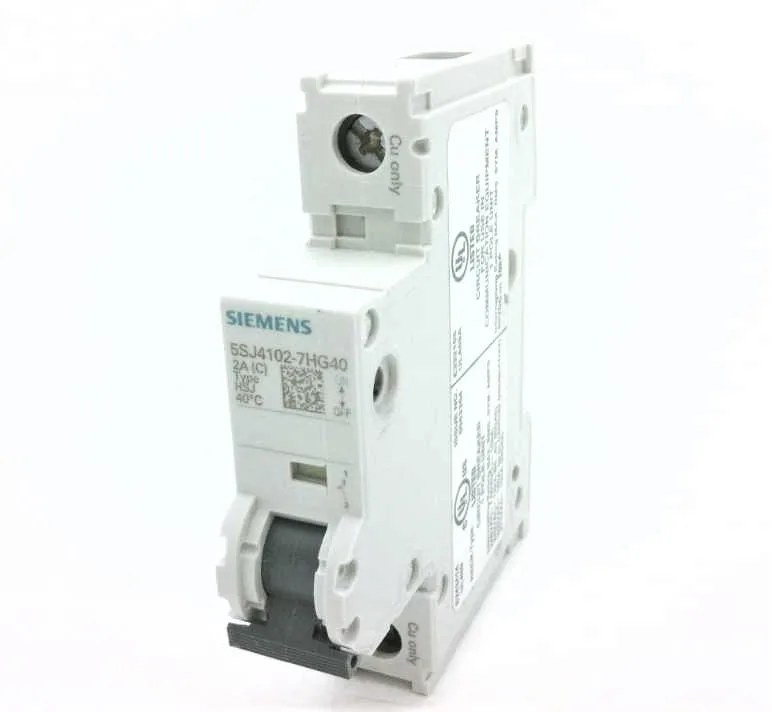

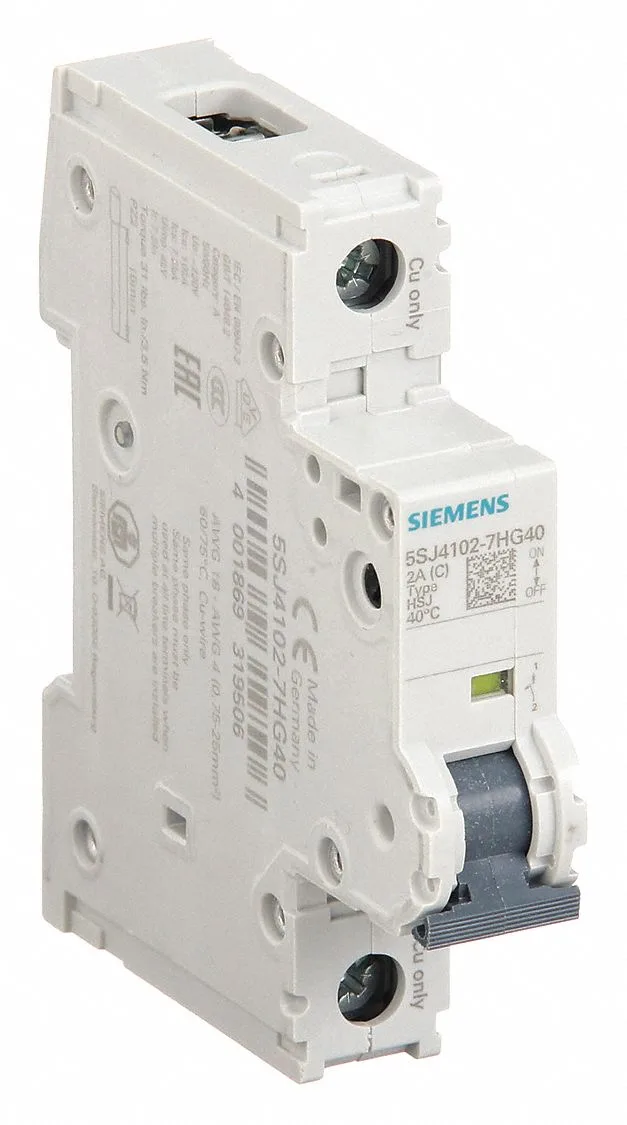

Siemens SENTRON 5SJ4 series, 5SJ4102-7HG40, 1-pole miniature circuit breaker, C characteristic, 10 kA (EN 60898), 15 kA (IEC 60947-2), 400 V AC, 60 V DC.
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breakers |
| Brand name | SENTRON |
| Number of poles | 1 |
| Pole design | 1P |
| Application suitability | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic class | C |
| Overvoltage category | 3 |
| Parameter | Value |
|---|---|
| Mounting position | any |
| Fastening method | on standard mounting rail |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Width | 18 mm |
| Height | 90 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Modular width units | 1 |
| Torque, min. | -40 °C |
| Torque, max. | 75 °C |
| Sealable | Yes |
| Parameter | Value |
|---|---|
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Pollution degree | 3 |
| Halogen-free | Yes |
| Silicone-free | Yes |
Mount it in any orientation. The housing is rated IP20 with conductors connected, IP40 in the handle area, so it's fine inside a clean control cabinet but not for washdown zones. Vibration resistance is 50 m/s² at 25 to 150 Hz and 60 m/s² at 35 Hz — tough enough for machine-mounted enclosures on compressors or conveyors.
