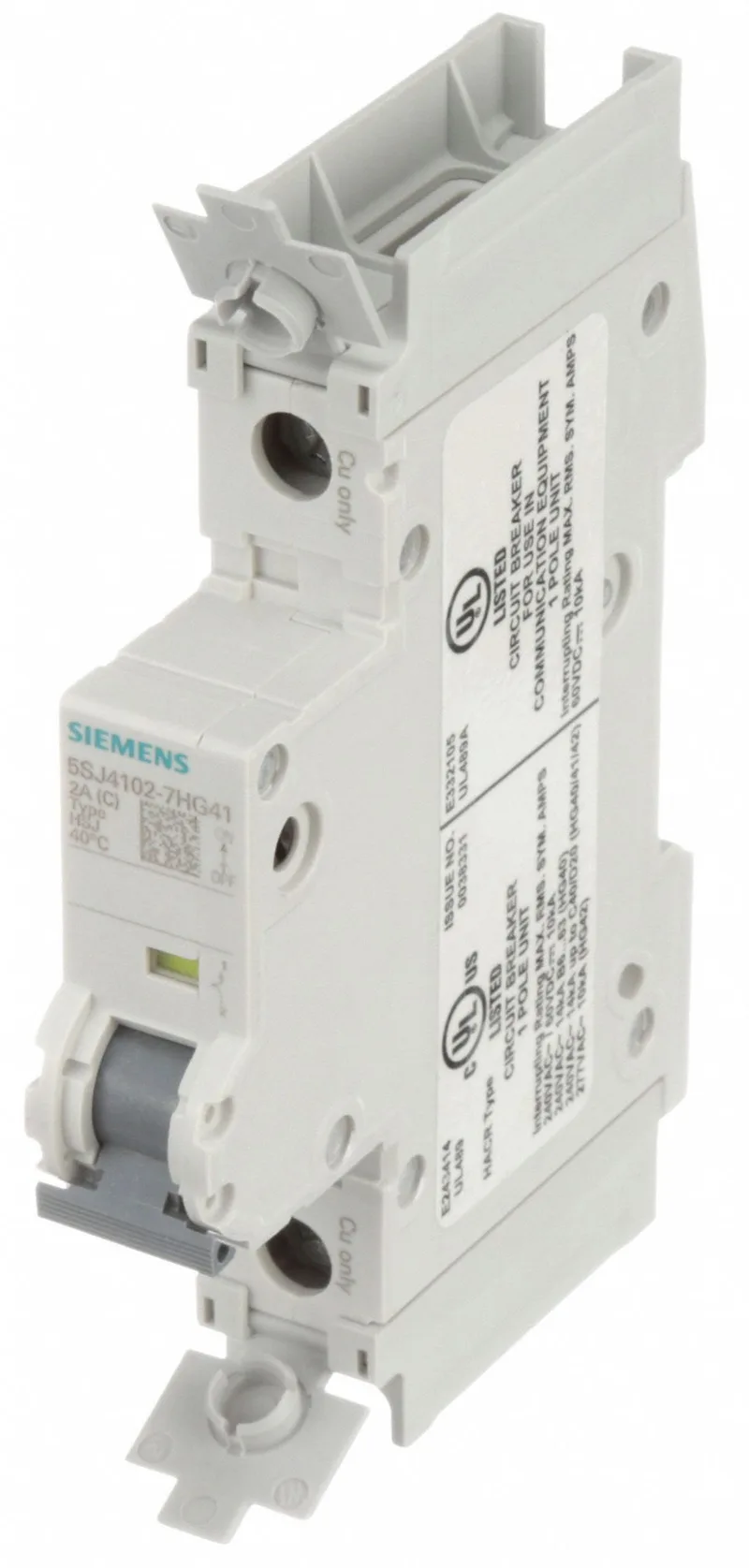

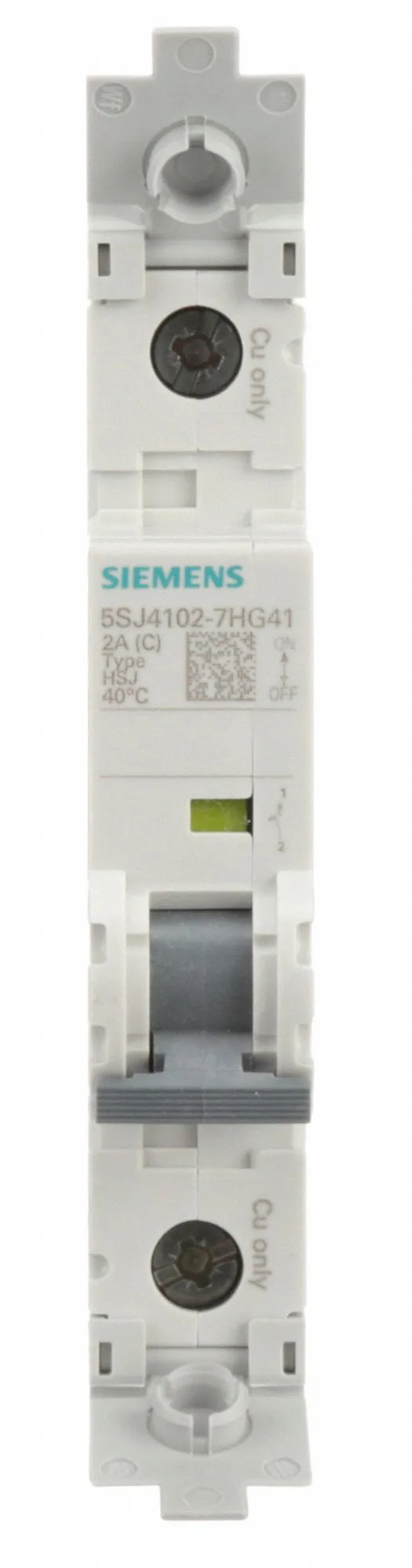

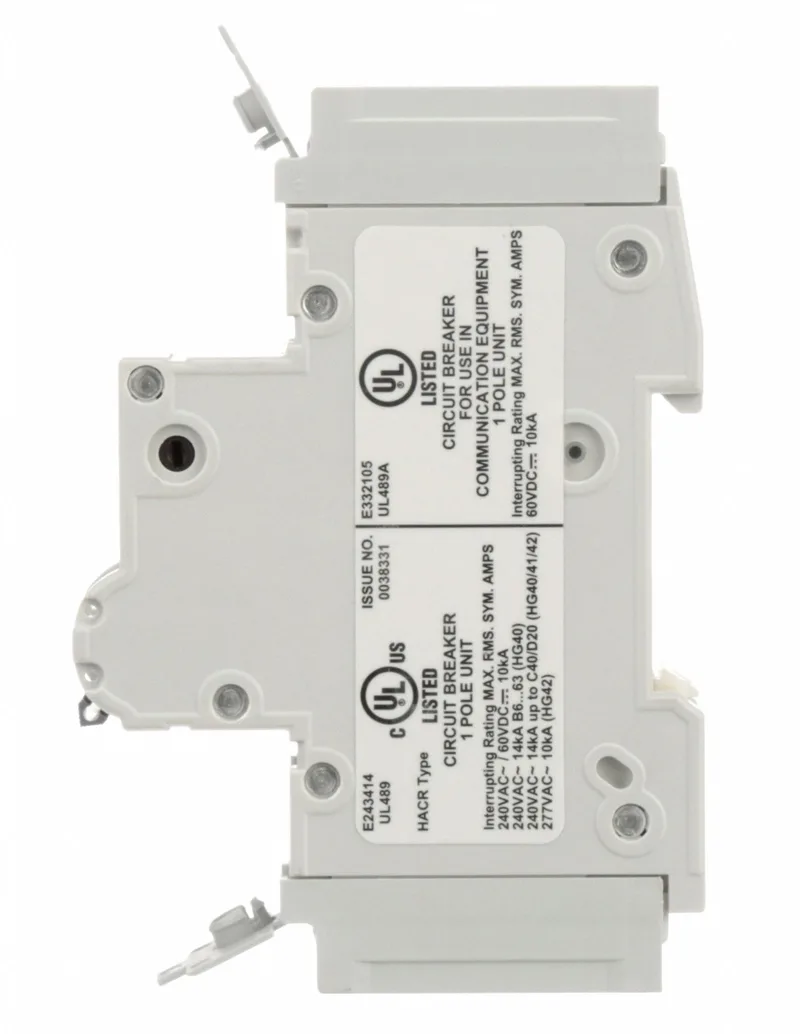

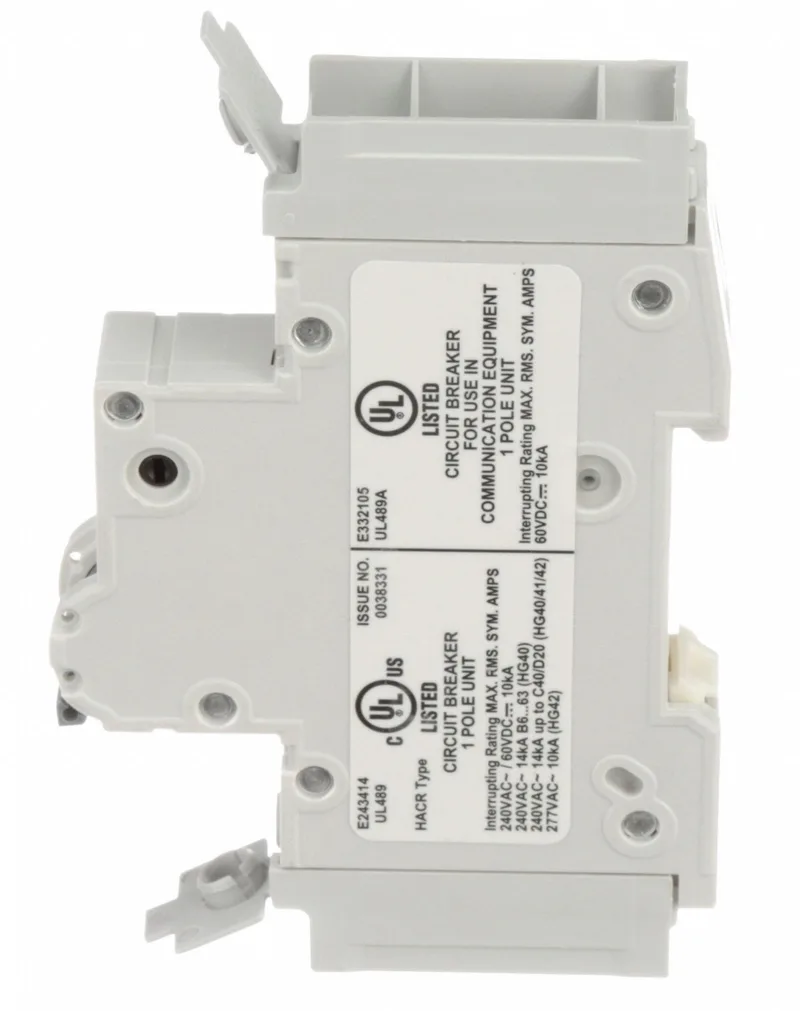

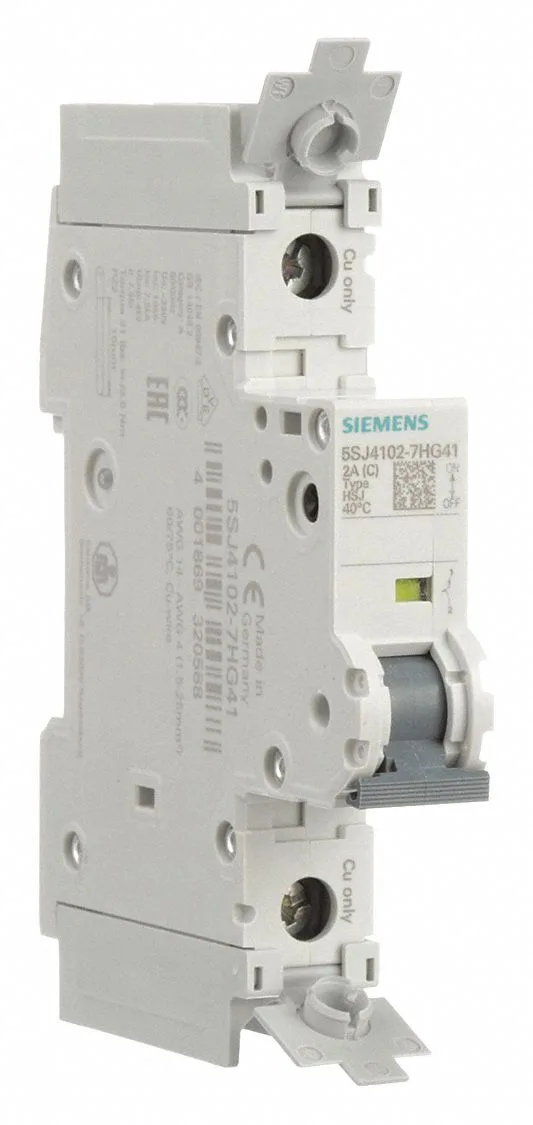

Siemens 5SJ4102-7HG41

Siemens 5SJ4102-7HG41 SENTRON MCB, 1P C-Curve, 10kA

MPN 5SJ4102-7HG41
Active

Siemens SENTRON 5SJ4102-7HG41 miniature circuit breaker, 1-pole, C characteristic, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC, 60 V DC, 18 mm width.

$37.03 – $91.09 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

5SJ4102-7HG41 specifications
ParameterValue
Poles1
Mountingon standard mounting rail
Depth70 mm
Width18 mm
Height110 mm

Product details

The Siemens 5SJ4102-7HG41 is a SENTRON miniature circuit breaker — one pole, C-curve trip, rated to clear faults at 10 kA per EN 60898 and 15 kA per IEC 60947-2. That C characteristic means it holds through mild inrush (motors, transformers, lighting ballasts) and trips fast on a dead short. It's built for 400 V AC circuits and can handle 60 V DC on the same pole.

The 18 mm width (one modular unit) snaps onto standard DIN rail; depth is 70 mm, which fits flush in most enclosures. IP20 with conductors connected, IP40 in the handle area — fine for a dry panel, not for washdown zones.

Where it goes and what it handles

Vibration resistance at 50 m/s² (25–150 Hz) and 60 m/s² (35 Hz, 4 sec) means it stays latched on a machine skid or near a conveyor drive.
