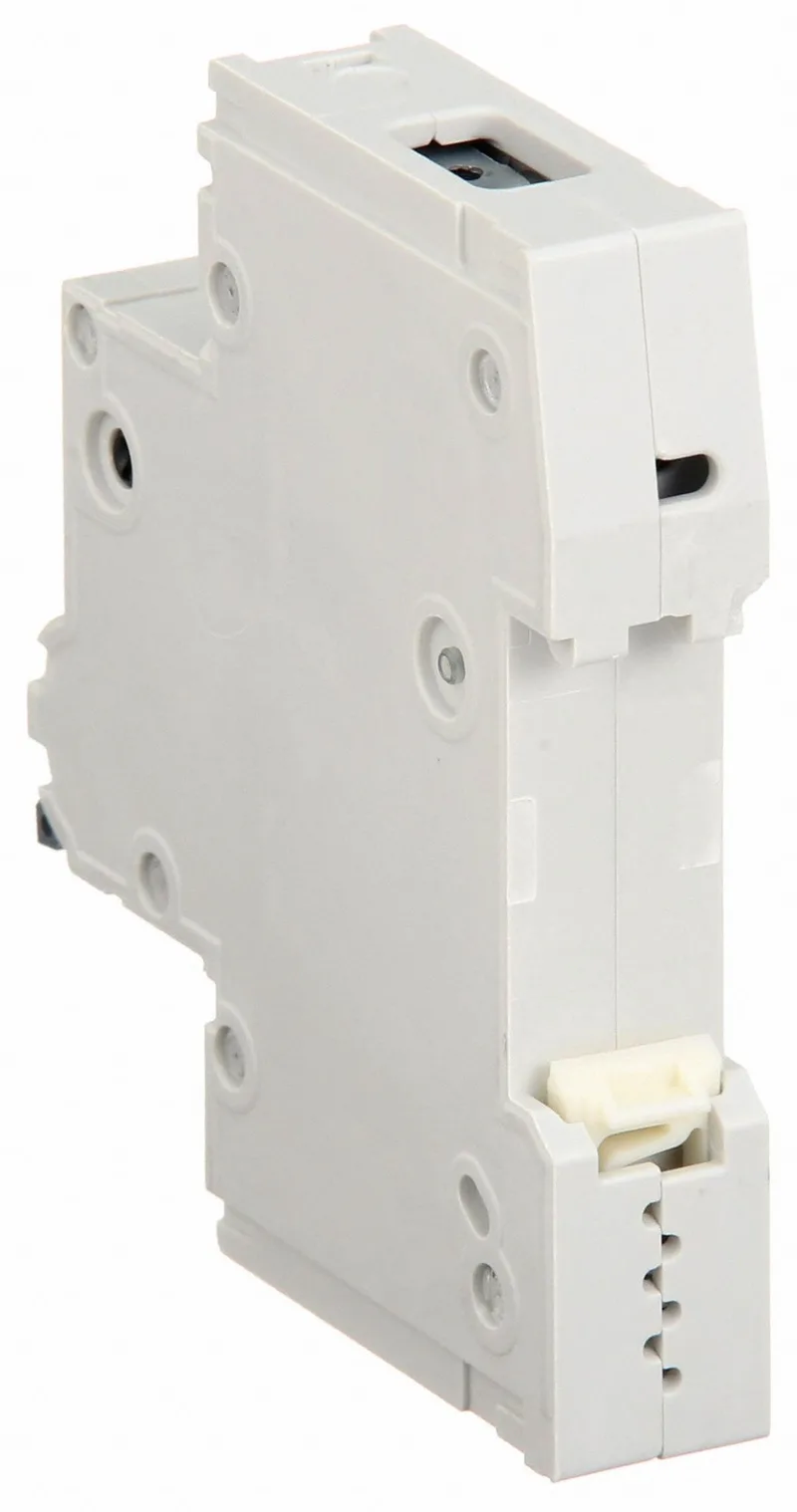

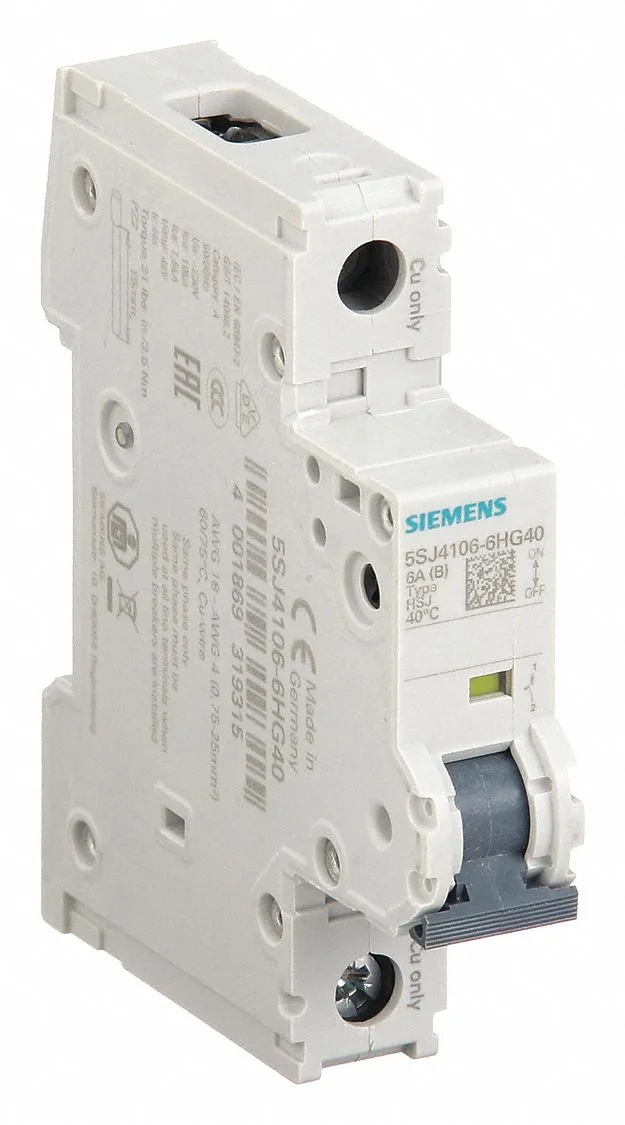

Siemens 5SJ4106-6HG40 — 1-Pole MCB (DIN Rail)

Siemens 5SJ4106-6HG40 SENTRON MCB, 1-pole B-curve, 10 kA

MPN5SJ4106-6HG40
Active

Siemens SENTRON 5SJ4 series, miniature circuit breaker, 1-pole, B characteristic, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC, 60 V DC, 1 MWU, DIN rail mount.

$24.13Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SJ4106-6HG40 — Identification
ParameterValue
Product designationMiniature circuit breakers
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityMechanical engineering / industry
5SJ4106-6HG40 — Electrical & Protection
ParameterValue
Tripping characteristic classB
Overvoltage category3
5SJ4106-6HG40 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodon standard mounting rail
Combined terminal, topYes
Combined terminal, bottomYes
Width18 mm
Height90 mm
Depth70 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SJ4106-6HG40 — Environmental
ParameterValue
IP protection classIP20, with connected conductors, IP 40 in the handle range
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

The Siemens 5SJ4106-6HG40 is a 1-pole SENTRON miniature circuit breaker with a B tripping characteristic, rated 10 kA breaking capacity per EN 60898 and 15 kA per IEC 60947-2.

On a motor branch feeding a small pump or fan, a C-curve would be a better fit; this B-curve is meant for the control panel's general-purpose power distribution, not for starting induction motors. That dual rating means it coordinates cleanly with upstream SENTRON selective main breakers in a typical 400 V distribution board. Rated for 400 V AC and 60 V DC, so it handles single-phase branch circuits on a 400/230 V three-phase system. The DC rating at 60 V covers battery-backed control circuits and small DC bus feeds — not for traction batteries or 110 V DC substation auxiliaries. That's a step above a residential-grade breaker.

IP20 with conductors connected; IP40 in the handle range. That's fine inside a closed panel — no special gasketing needed. Halogen-free and silicon-free construction, so it won't outgas corrosive compounds in a sealed cabinet near sensitive electronics or relays.

Frequently asked questions

What is the breaking capacity of 5SJ4106-6HG40?

10 kA per EN 60898 and 15 kA per IEC 60947-2, both at 400 V AC.

What is the width of this breaker in modular units?

It occupies one modular width unit, which is 18 mm on a standard DIN rail.

Where can I buy the 5SJ4106-6HG40?

This part is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

Will the 5SJ4106-6HG40 drop into a panel specified around the 5SL6006-7?

Both are 1-pole B-curve MCBs on DIN rail, so they share the same footprint and function. The 5SJ4 series carries a higher IEC 60947-2 breaking capacity (15 kA vs the 5SL's typical 10 kA), so verify the panel's SCCR requirement before substituting.
