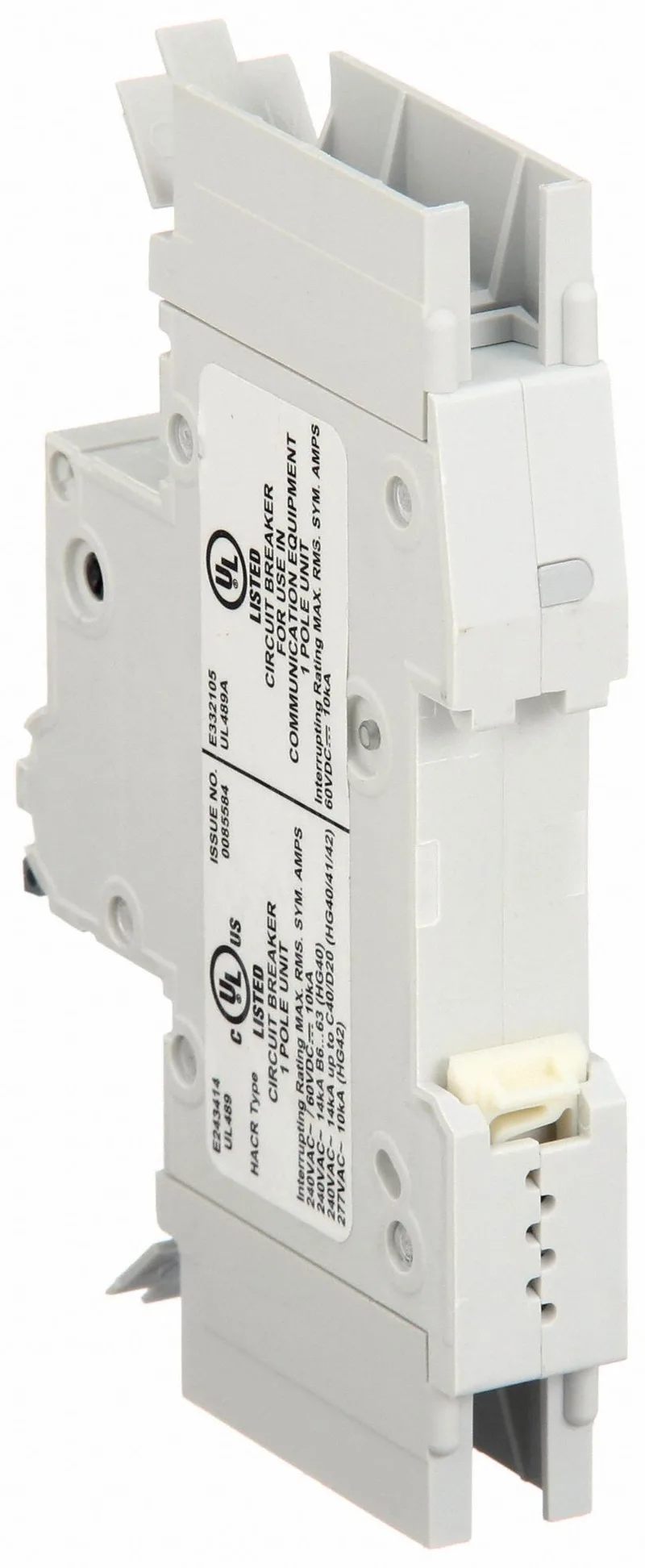

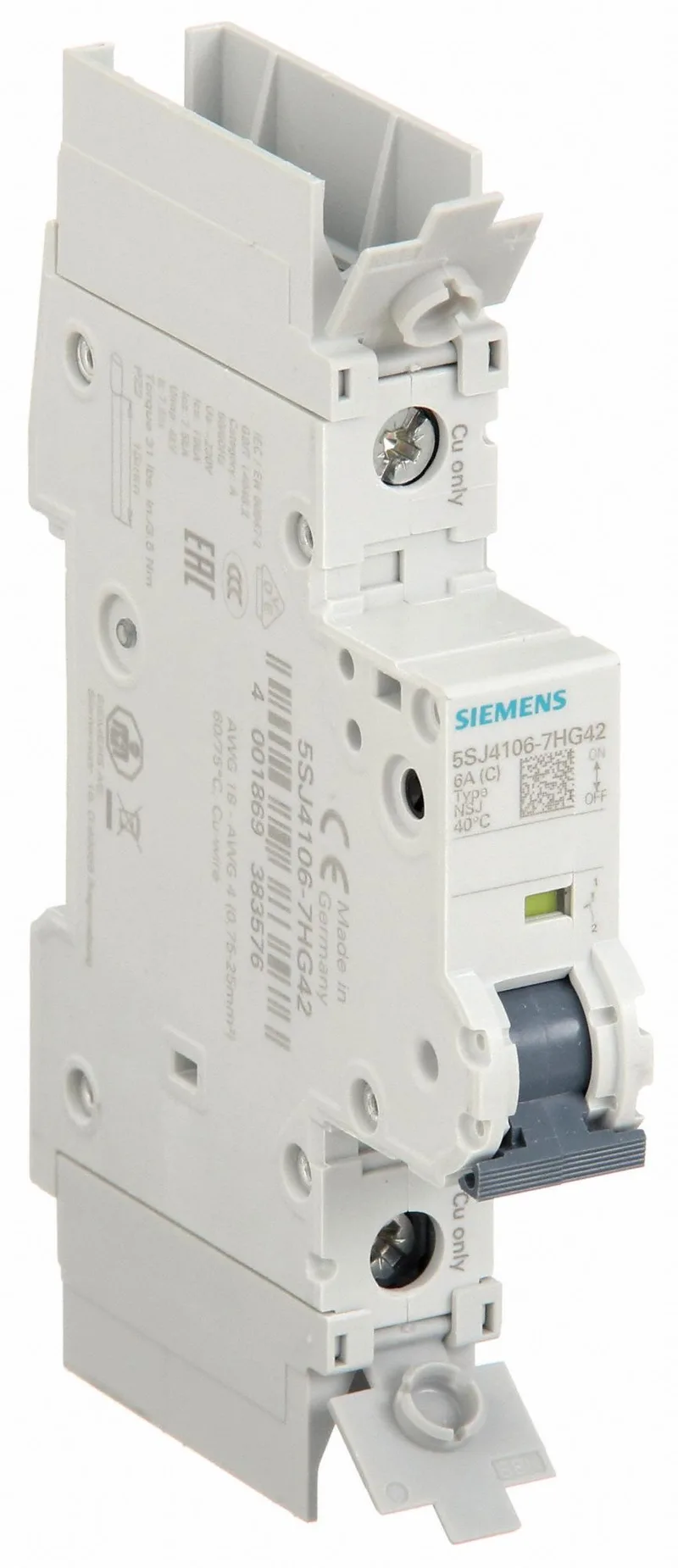

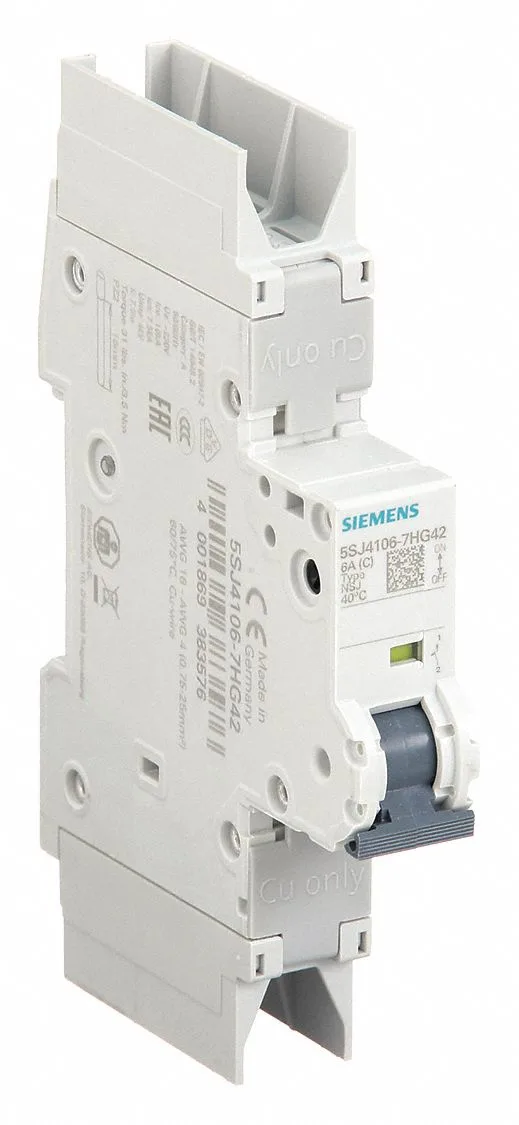

Siemens 5SJ4106-7HG42 — 1-Pole MCB (DIN Rail)

Siemens 5SJ4106-7HG42 SENTRON MCB, 1P C-curve, 10 kA

MPN5SJ4106-7HG42
Active

Siemens SENTRON 5SJ4 series, 5SJ4106-7HG42, 1-pole miniature circuit breaker, C-curve, 10 kA (EN 60898), 15 kA (IEC 60947-2), 400 V AC, 60 V DC, 18 mm wide.

$35.56 – $97.61Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SJ4106-7HG42 — Identification
ParameterValue
Product designationMiniature circuit breakers
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityMechanical engineering / industry
5SJ4106-7HG42 — Electrical & Protection
ParameterValue
Tripping characteristic classC
Overvoltage category3
5SJ4106-7HG42 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodon standard mounting rail
Combined terminal, topYes
Combined terminal, bottomYes
Width18 mm
Height121 mm
Depth70 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SJ4106-7HG42 — Environmental
ParameterValue
IP protection classIP20, with connected conductors, IP 40 in the handle range
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

The Siemens SENTRON 5SJ4106-7HG42 is a 1-pole miniature circuit breaker with a C-curve tripping characteristic, rated 10 kA breaking capacity per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC. It's also rated for 60 V DC, so it can protect a DC control bus or a small battery-backed circuit.

Pollution degree 3 (conductive pollution, typical in industrial enclosures) and overvoltage category III (distribution level). IP20 with connected conductors, IP40 in the handle area — fine for a clean panel, not for washdown zones. Halogen-free and silicon-free, which matters in semiconductor fabs or clean rooms where outgassing can kill optics or contaminate wafers. Sealable — you can lock the handle position to prevent unauthorized reset.

Current production — no end-of-life notice. Standard SENTRON catalog item.
