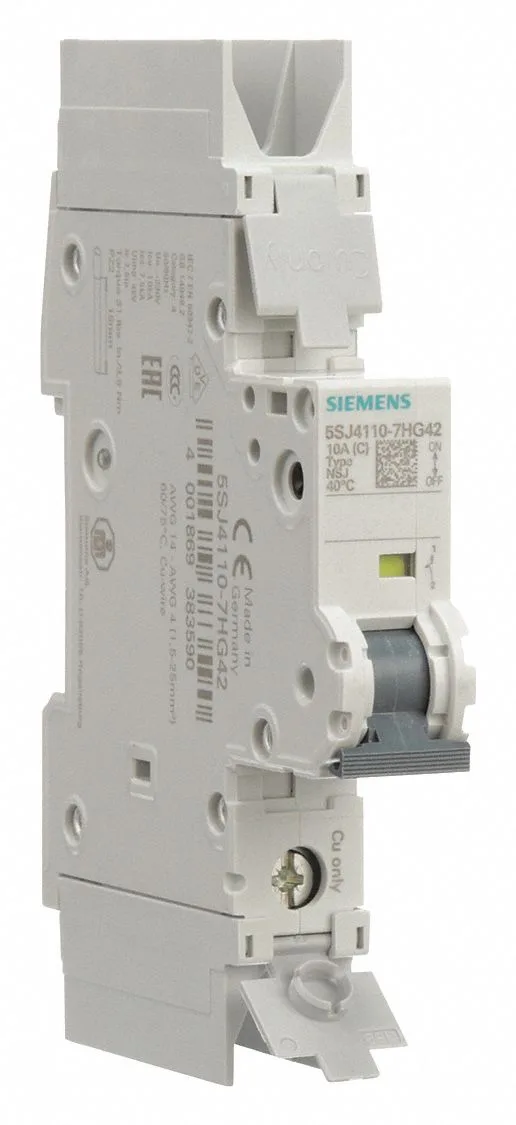

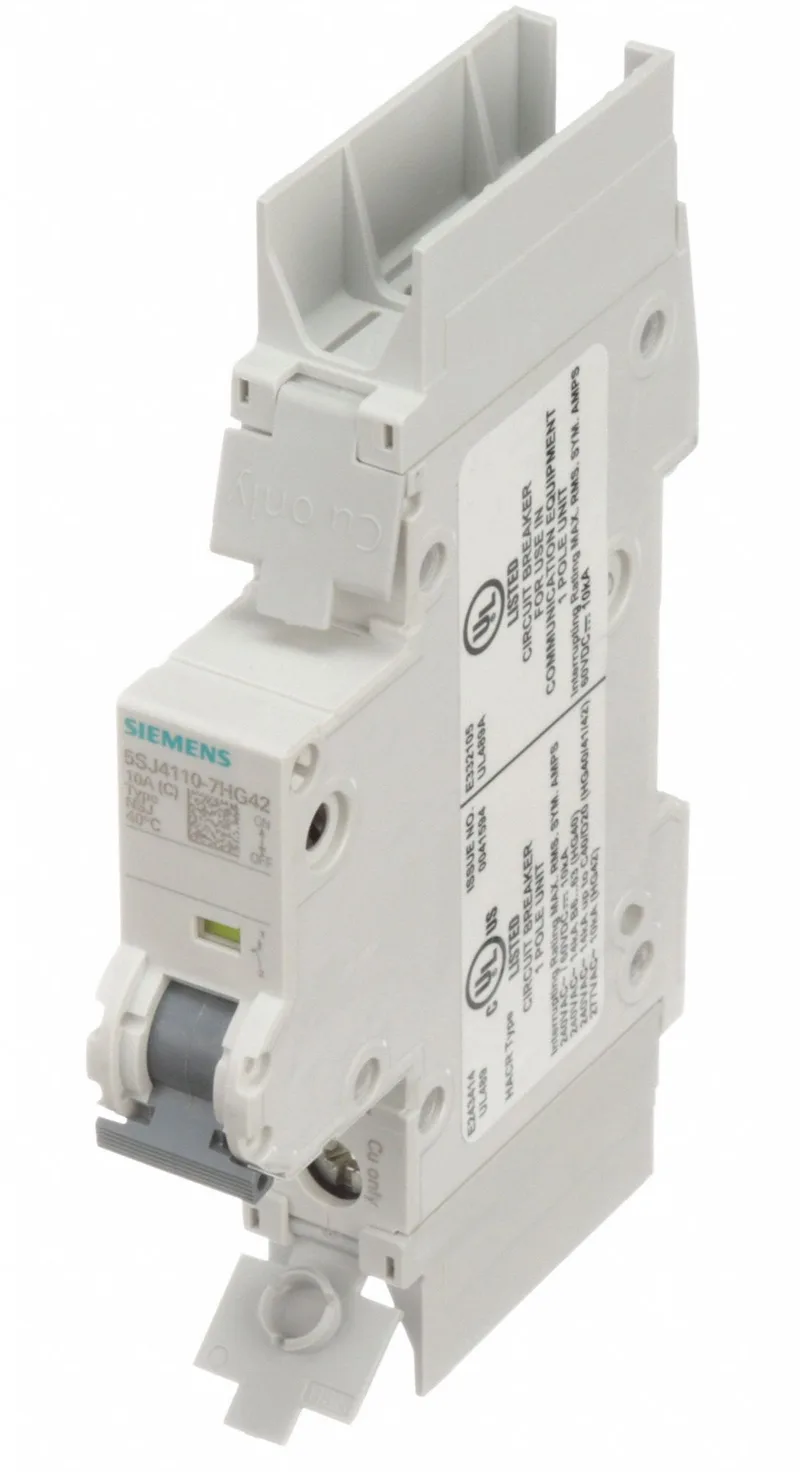

Siemens SENTRON 5SJ4110-7HG42, 1-pole miniature circuit breaker, C-curve, 10 kA per EN 60898 / 15 kA per IEC 60947-2, 400 VAC / 60 VDC, 18 mm width.
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breakers |
| Brand name | SENTRON |
| Number of poles | 1 |
| Pole design | 1P |
| Application suitability | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic class | C |
| Overvoltage category | 3 |
| Parameter | Value |
|---|---|
| Mounting position | any |
| Fastening method | on standard mounting rail |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Width | 18 mm |
| Height | 121 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Modular width units | 1 |
| Torque, min. | -40 °C |
| Torque, max. | 75 °C |
| Sealable | Yes |
| Parameter | Value |
|---|---|
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Pollution degree | 3 |
| Halogen-free | Yes |
| Silicone-free | Yes |
The 5SJ4110-7HG42: Width is 18 mm — one modular unit. Depth 70 mm, height 121 mm. IP20 with conductors connected, IP40 in the handle area.
Degree of pollution 3, overvoltage category 3. Halogen-free and silicon-free construction. Sealable design. Vibration resistance: 50 m/s² at 25–150 Hz and 60 m/s² at 35 Hz (4 s). Suitability flagged for mechanical engineering and industry.
1-pole, C-curve, 10 kA interrupting capacity per EN 60898 and 15 kA per IEC 60947-2. Rated voltage 400 VAC and 60 VDC. Width 18 mm, depth 70 mm, height 121 mm. Operating temperature -40 °C to 75 °C.
The 5SL4363-7 is a common peer in the same SENTRON family, but it is a different order code with its own ratings. The 5SJ4110-7HG42 is a 1-pole C-curve unit; verify the peer's pole count, curve, and interrupting capacity before substituting. No direct drop-in guarantee without reviewing both datasheets.
