Siemens 5SJ4111-8HG40

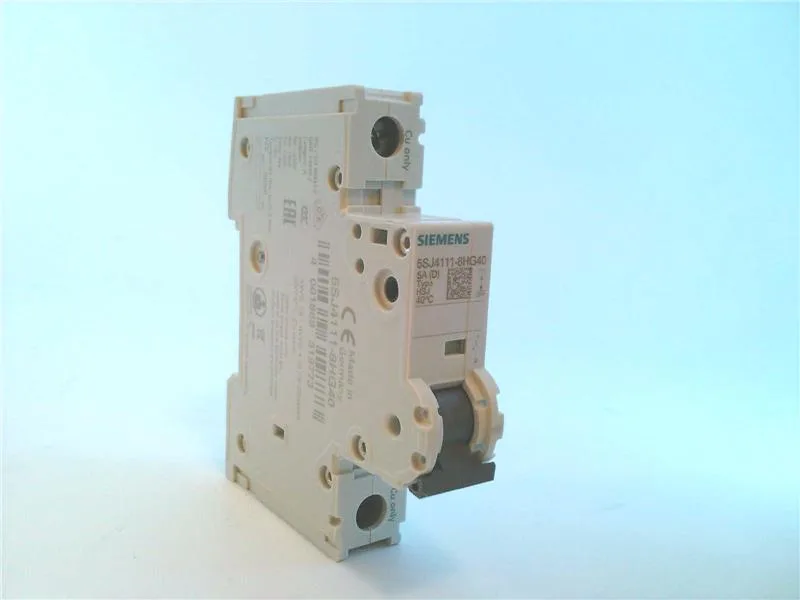

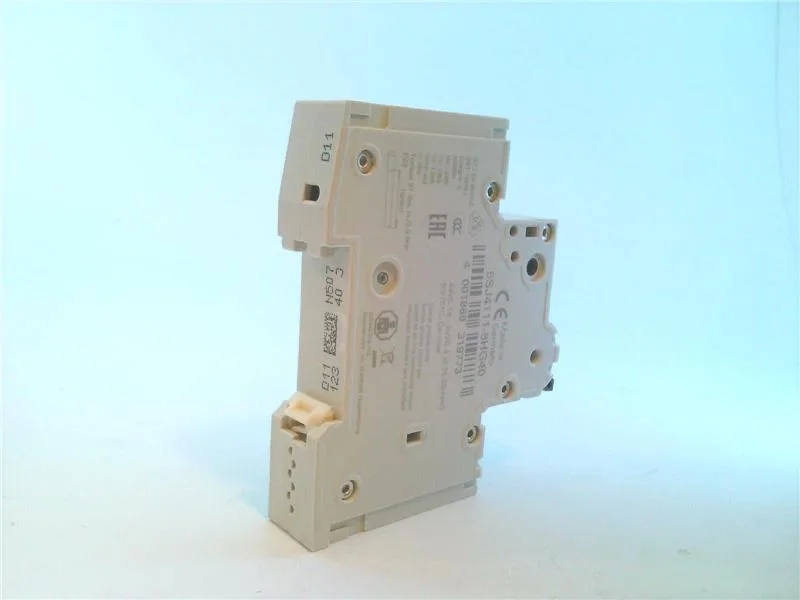

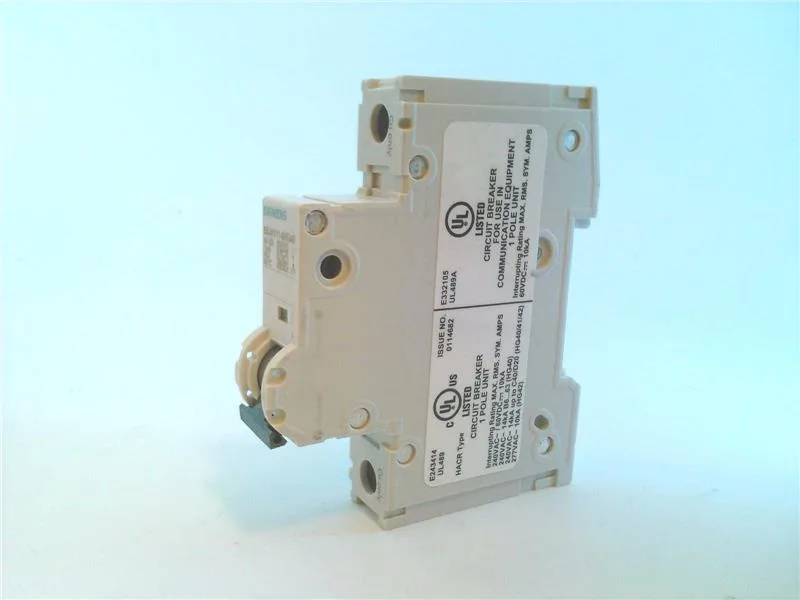

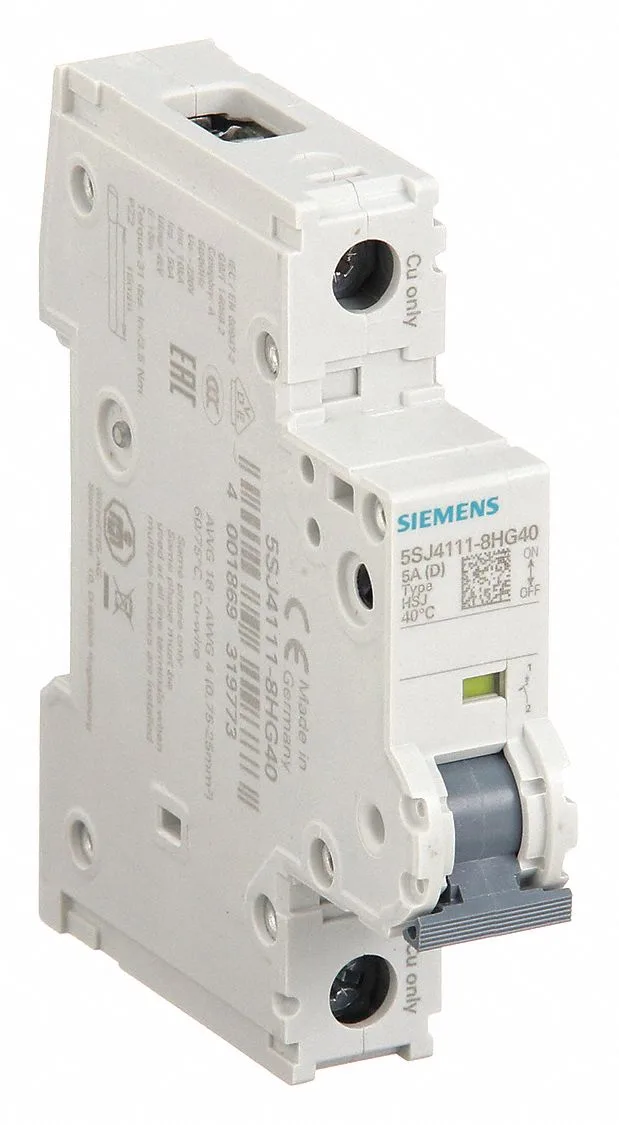

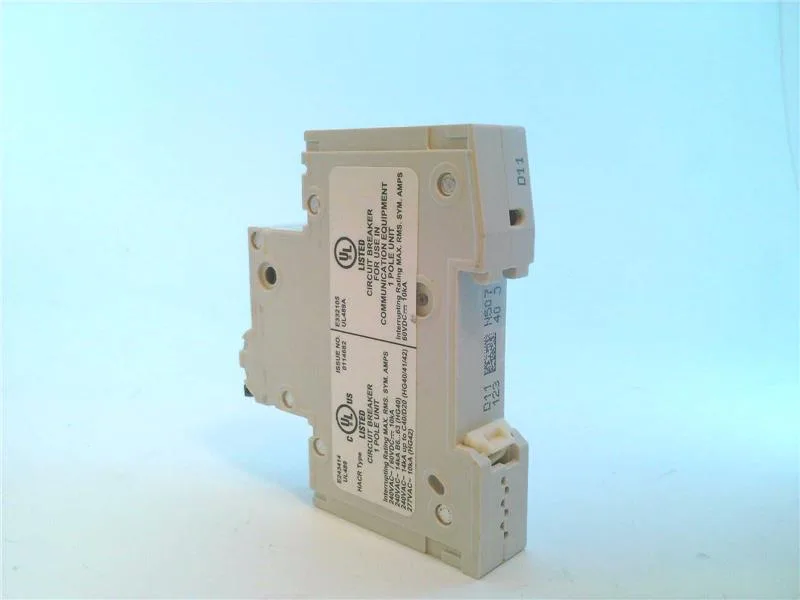

Siemens SENTRON 5SJ4111-8HG40 MCB, 1P, D-curve, 10kA

MPN 5SJ4111-8HG40
Active

Siemens SENTRON 5SJ4 series, 5SJ4111-8HG40, 1-pole miniature circuit breaker, D tripping characteristic, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC, 60 V DC, DIN-rail mount.

$34.29 – $83.23 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

5SJ4111-8HG40 specifications
ParameterValue
Poles1
Mountingon standard mounting rail
Depth70 mm
Width18 mm
Height90 mm

Product details

Rated breaking capacity is 10 kA per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC, which covers most industrial distribution boards fed from a 400 V transformer up to that fault level. The DC rating is 60 V, suited for control-circuit protection on 24 V or 48 V DC rails.

Degree of pollution 3 and overvoltage category III — the MCB is rated for the conductive environment inside an industrial enclosure where condensation or light contamination may occur. IP20 with connected conductors, IP40 in the handle range; the handle area is protected against tools, but the terminals need to be inside a closed panel.

Vibration resistance is 50 m/s² at 25–150 Hz and 60 m/s² at 35 Hz, which passes the typical industrial machinery vibration profile.

MPN
5SJ4111-8HG40
