Siemens 5SJ4113-7HG40 — 1-Pole MCB (DIN Rail)

Siemens 5SJ4113-7HG40 SENTRON MCB, 1P, C-Curve, 10kA

MPN5SJ4113-7HG40
Active

Siemens SENTRON 5SJ4 series, 1-pole miniature circuit breaker, C-curve, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC, 60 V DC, 18 mm wide.

$25.40Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SJ4113-7HG40 — Identification
ParameterValue
Product designationMiniature circuit breakers
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityMechanical engineering / industry
5SJ4113-7HG40 — Electrical & Protection
ParameterValue
Tripping characteristic classC
Overvoltage category3

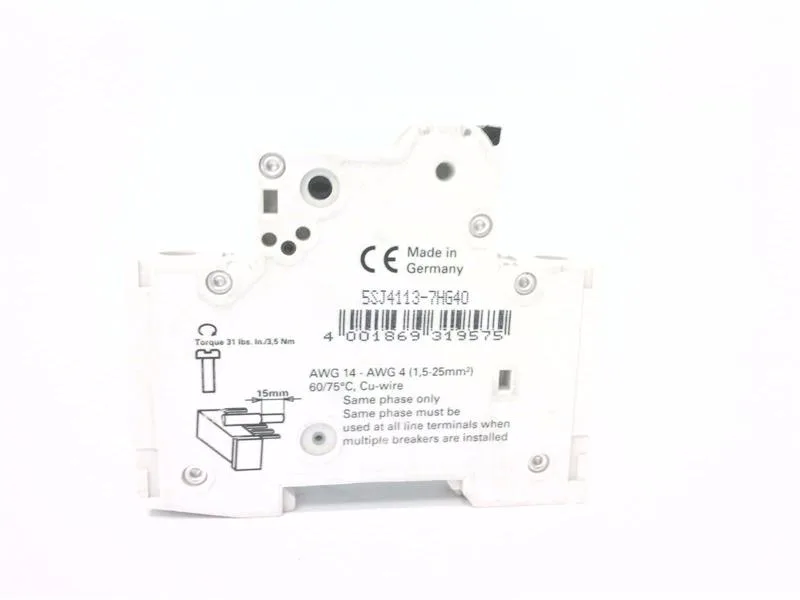

5SJ4113-7HG40 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodon standard mounting rail
Combined terminal, topYes
Combined terminal, bottomYes
Width18 mm
Height90 mm
Depth70 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SJ4113-7HG40 — Environmental
ParameterValue
IP protection classIP20, with connected conductors, IP 40 in the handle range
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

Its C tripping characteristic handles inrush currents from motor starters and contactor coils without nuisance trips, while the 10 kA breaking capacity per EN 60898 (15 kA per IEC 60947-2) covers most secondary distribution faults in a 400 V AC panel.

Rated at 400 V AC and 60 V DC. C-curve magnetic trip at 5–10× In. The IP20 body (IP40 at the handle) is standard for a DIN-rail device; it expects to live inside a cabinet, not on the open floor. The 95 % humidity limit without condensation is typical for MCBs; no derating curve is published in these specs, so treat the 75 °C ceiling as the absolute max for the enclosure ambient.

What the approvals tell you

The pollution degree 3 and overvoltage cat III ratings align with IEC 60947-1 and -2. No UL/CSA listing is stated in the evidence, so for North American panels verify the specific UL 489 or CSA C22.2 file if required by local code.

Frequently asked questions

Does it require a neutral conductor?

No, this is a 1-pole breaker with no neutral switching. It protects one phase only.

What environment is it rated for?

Pollution degree 3 (industrial), overvoltage category III, ambient -40 °C to 75 °C, and up to 95 % humidity. The IP20 body is for inside an enclosure.

MPN
5SJ4113-7HG40
