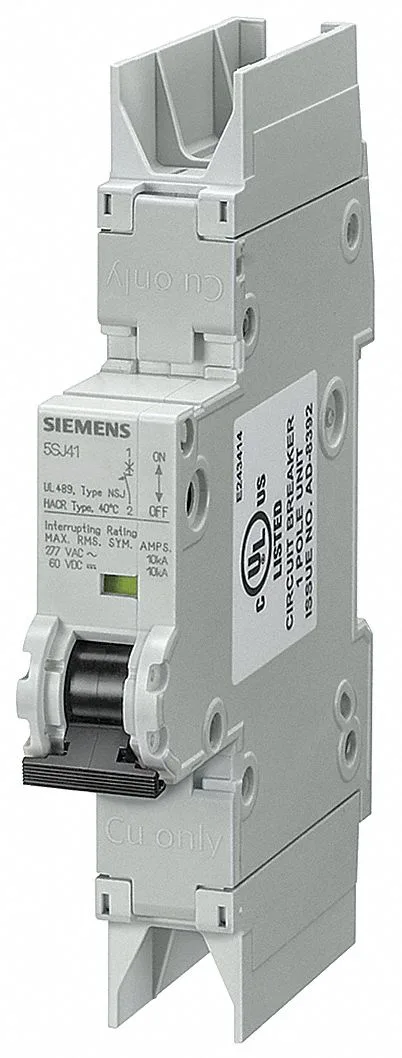

Siemens SENTRON 5SJ4 miniature circuit breaker, 1-pole, 13 A, D tripping characteristic, 10 kA breaking capacity (EN 60898), 400 V AC.
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breakers |
| Brand name | SENTRON |
| Number of poles | 1 |
| Application suitability | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic class | D |
| Rated value (EN 60898) | 10 kA |
| Overvoltage category | 3 |
| Parameter | Value |
|---|---|
| Mounting position | any |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Width | 18 mm |
| Height | 121 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Sealable | Yes |
| Parameter | Value |
|---|---|
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Halogen-free | Yes |
| Silicone-free | Yes |
It breaks 10 kA per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC, with a maximum DC voltage rating of 60 V. For a 13 A frame, this is a solid choice for protecting a small motor branch or a control transformer secondary.
Snaps onto standard DIN rail (mounting type per). At 18 mm wide (1 width unit), it occupies one slot in a distribution board or panel. IP20 with conductors connected, IP40 in the handle range — fine for enclosed panels.
It is a 1-pole, 13 A miniature circuit breaker with a D tripping characteristic. Breaking capacity is 10 kA per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC. Maximum DC voltage is 60 V.
Width is 18 mm (1 width unit), depth is 76 mm, installation depth is 70 mm, height is 121 mm. It mounts on standard DIN rail.
It is rated per EN 60898 (10 kA) and IEC 60947-2 (15 kA). Overvoltage category 3. Protection class IP20 with conductors connected, IP40 in the handle range. Halogen-free and silicon-free.
