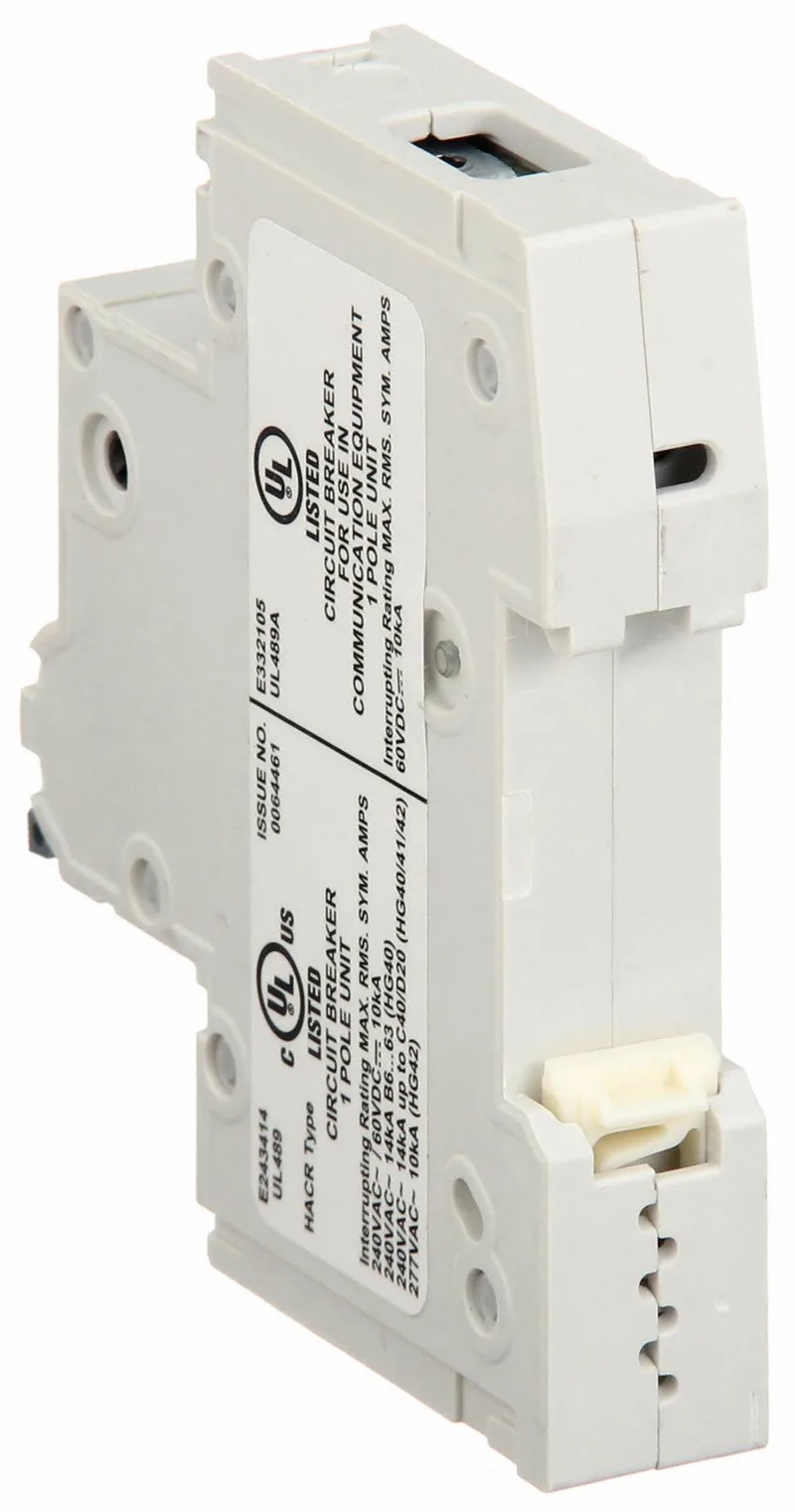

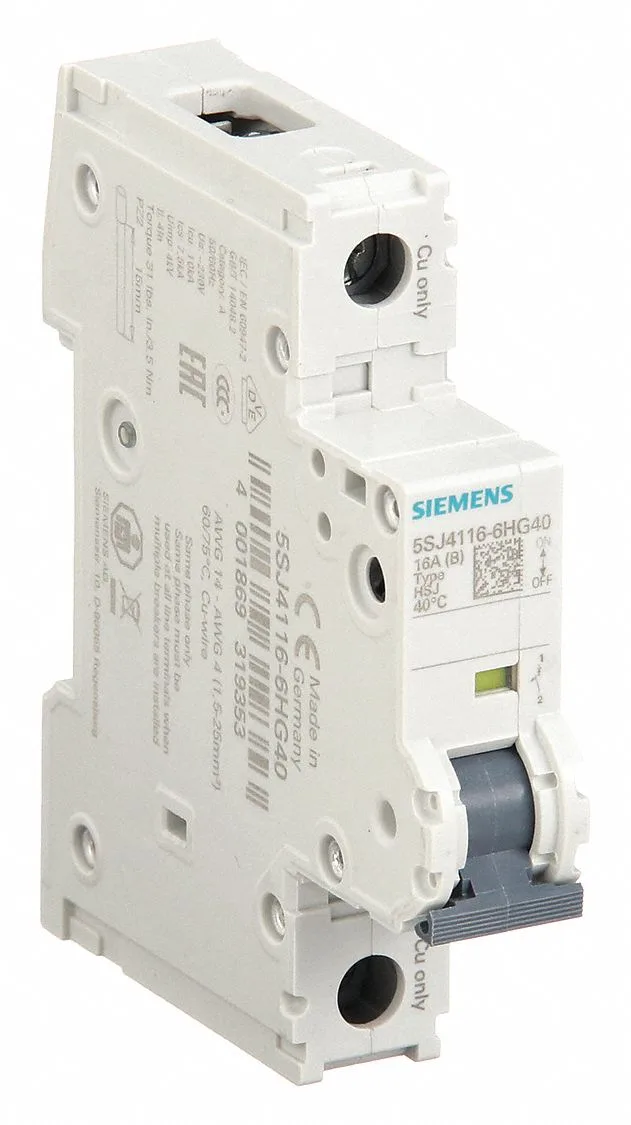

Siemens 5SJ4116-6HG40 — 1-Pole MCB (DIN Rail)

Siemens 5SJ4116-6HG40 SENTRON MCB, 1P, 16 A, 18 mm

MPN5SJ4116-6HG40
Active

Siemens SENTRON 5SJ4 series, 5SJ4116-6HG40, 1-pole miniature circuit breaker, 16 A rated at 30 °C, 18 mm width, DIN-rail mount, IP20/IP40 handle.

$85.71Ref. price · indicative, final on quote
Siemens 5SJ4116-6HG40 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SJ4116-6HG40 — Identification
ParameterValue
Product designationMiniature circuit breakers
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityMechanical engineering / industry
5SJ4116-6HG40 — Electrical & Protection
ParameterValue
Tripping characteristic classB
Overvoltage category3
5SJ4116-6HG40 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodon standard mounting rail
Combined terminal, topYes
Combined terminal, bottomYes
Width18 mm
Height90 mm
Depth70 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SJ4116-6HG40 — Environmental
ParameterValue
IP protection classIP20, with connected conductors, IP 40 in the handle range
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

What this 1-pole 16 A MCB is for

The Siemens 5SJ4116-6HG40 is a 1-pole miniature circuit breaker from the SENTRON 5SJ4 series, rated 16 A at both 30 °C and 40 °C ambient. The IP20 enclosure (IP40 at the handle) suits it for enclosed distribution boards where accidental contact with live busbars is prevented by the cabinet door.

At 30 °C and 40 °C the breaker holds its full 16 A rating; above that it derates — 15.5 A at 45 °C, 15 A at 50 °C, 14.5 A at 55 °C, and 14.1 A at 60 °C. The DC rating maxes at 60 V, so this is a single-pole DC breaker for 24 V or 48 V control circuits, not for 125 V DC traction battery strings. Overvoltage category 3 and pollution degree 3 mean it's rated for fixed installations inside industrial panels where transient surges and conductive dust are normal.

Frequently asked questions

What is the closest functional second-source — 5SL4363-7?

The 5SL4363-7 is a different Siemens series (5SL vs 5SJ4). While both are 1-pole MCBs, the 5SJ4 series has different breaking capacity and physical dimensions. The 5SJ4116-6HG40 will not drop into a panel specified around 5SL4363-7 without verifying the mounting footprint and terminal arrangement — the 5SL series uses a different tunnel terminal design and may have a different DIN-rail clip. Always compare the specific order codes before substituting.

What are the key dimensions — depth and width?

Depth is 70 mm, width is 18 mm (1 modular unit), height is 90 mm. Installation depth is also 70 mm.

What compliance documentation does this brand provide?

As a current Siemens SENTRON product, the 5SJ4116-6HG40 is covered by the standard manufacturer documentation including RoHS, REACH, and IEC/EN 60898-1 compliance. Specific certificates (UL, CSA) should be confirmed against the exact order code with the supplier, as regional variants exist.
