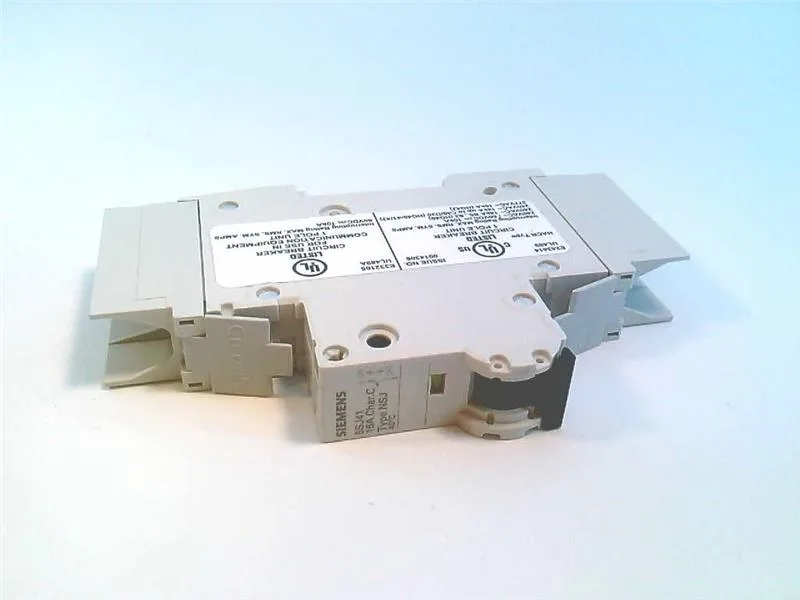

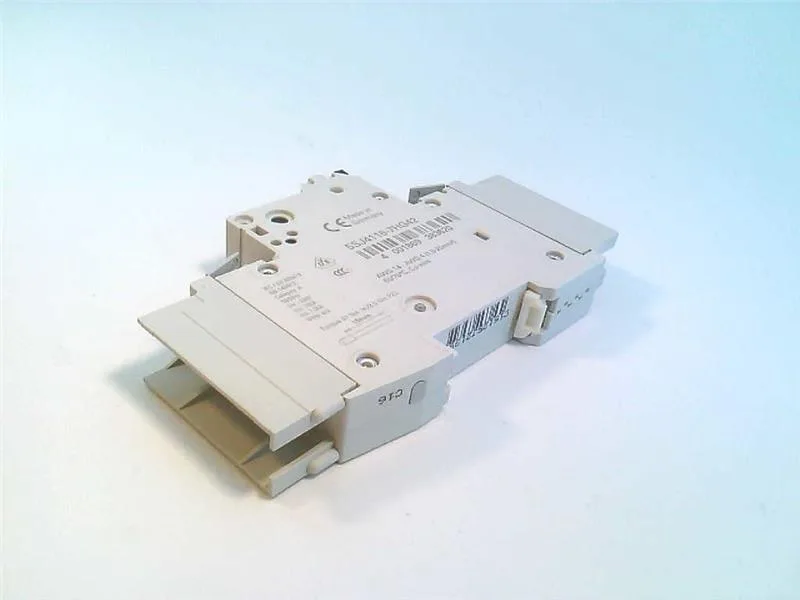

Siemens SENTRON 5SJ4, miniature circuit breaker 5SJ4116-7HG42, 1-pole, C characteristic, 10 kA (EN 60898), 15 kA (IEC 60947-2), 18 mm width.
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breakers |
| Brand name | SENTRON |
| Number of poles | 1 |
| Pole design | 1P |
| Application suitability | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic class | C |
| Overvoltage category | 3 |
| Parameter | Value |
|---|---|
| Mounting position | any |
| Fastening method | on standard mounting rail |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Width | 18 mm |
| Height | 121 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Modular width units | 1 |
| Torque, min. | -40 °C |
| Torque, max. | 75 °C |
| Sealable | Yes |
| Parameter | Value |
|---|---|
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Pollution degree | 3 |
| Halogen-free | Yes |
| Silicone-free | Yes |
That dual rating means the same part passes a 10 kA SCCR check in a domestic board and a 15 kA fault in an industrial sub-panel — one BOM line, two compliance boxes ticked.
One modular width unit at 18 mm wide, so it occupies a single slot in a distribution board. Depth is 70 mm, which clears most shallow enclosures; height is 121 mm.
Halogen-free and silicon-free construction, so no corrosive off-gassing in sealed enclosures.
10 kA per EN 60898 and 15 kA per IEC 60947-2. The higher IEC figure applies in industrial distribution panels.
Width 18 mm (1 modular unit), depth 70 mm, height 121 mm. Snaps onto standard 35 mm DIN rail.
C-curve trips at 5 to 10 times rated current. It handles moderate inrush from motor starters, lighting, and small transformers without nuisance tripping.
