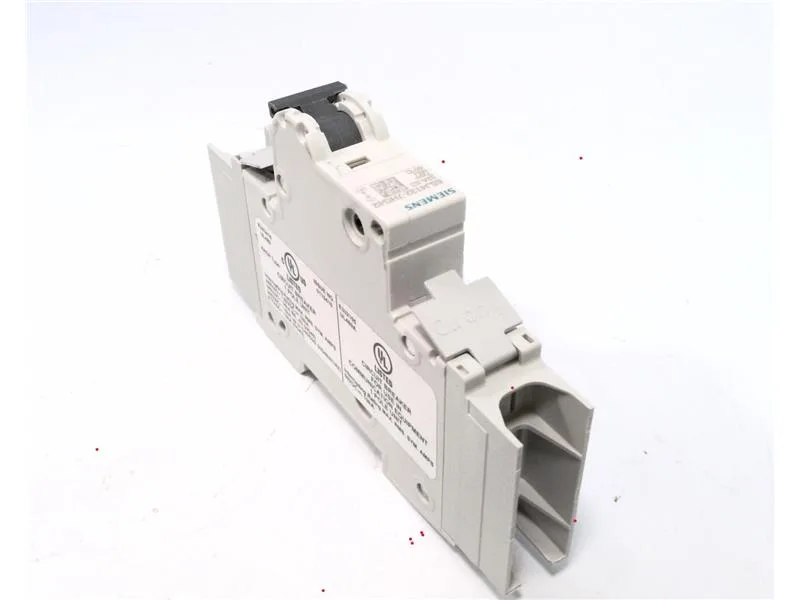

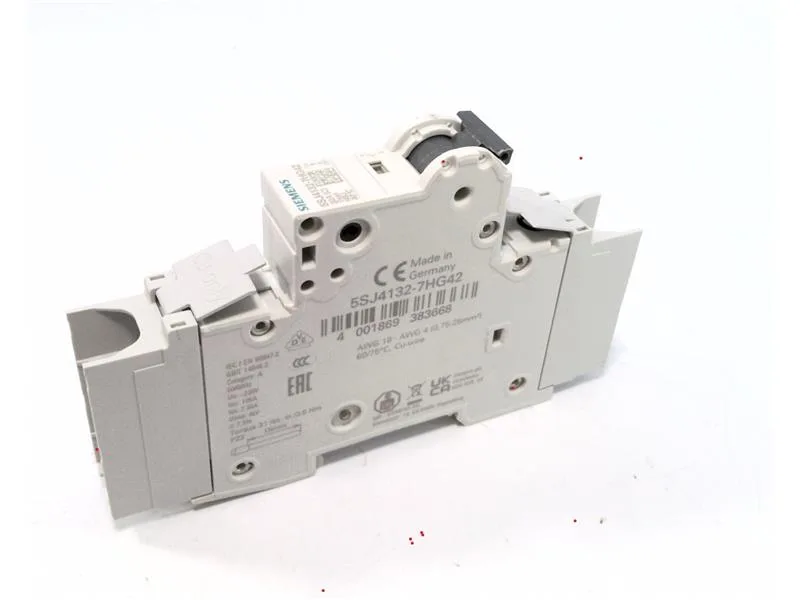

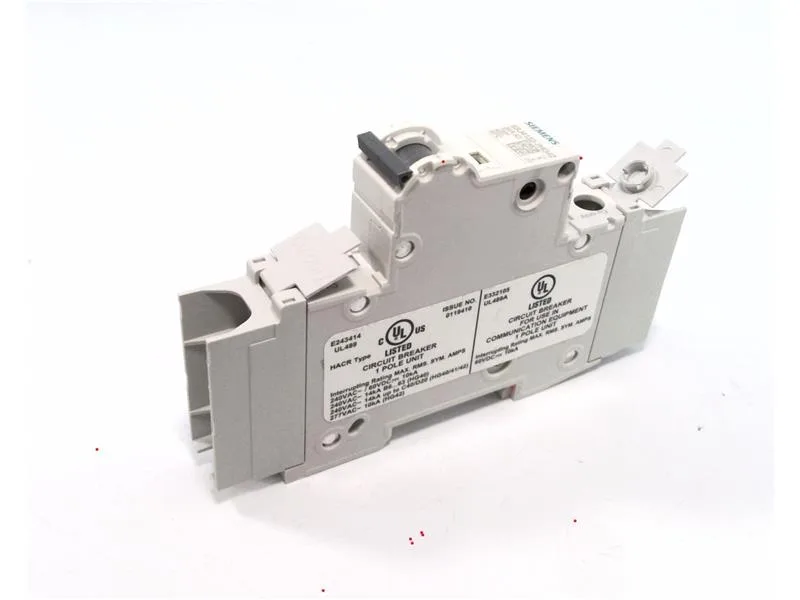

Siemens 5SJ4132-7HG42 — 1-Pole MCB (DIN Rail)

Siemens 5SJ4132-7HG42 SENTRON MCB, 1P C-curve, 10kA

MPN5SJ4132-7HG42
Active

Siemens SENTRON 5SJ4 miniature circuit breaker, 1-pole, C-curve, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 18 mm width, 70 mm depth, DIN rail mount.

$35.56 – $98.79Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SJ4132-7HG42 — Identification
ParameterValue
Product designationMiniature circuit breakers
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityMechanical engineering / industry
5SJ4132-7HG42 — Electrical & Protection
ParameterValue
Tripping characteristic classC
Overvoltage category3
5SJ4132-7HG42 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodon standard mounting rail
Combined terminal, topYes
Combined terminal, bottomYes
Width18 mm
Height121 mm
Depth70 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SJ4132-7HG42 — Environmental
ParameterValue
IP protection classIP20, with connected conductors, IP 40 in the handle range
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

The Siemens 5SJ4132-7HG42 is a SENTRON 5SJ4 miniature circuit breaker — single-pole, C-curve, rated 10 kA breaking capacity per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC. That 15 kA IEC rating gives you headroom for higher-fault panels where a standard 10 kA unit would need an upstream current-limiting fuse.

Rated insulation voltage (Ui) is 440 V AC, so it's comfortable on 400 V line-to-line systems.

Mounting and wiring notes

Combined terminals top and bottom — no tunnel terminals, so you're using cage-clamp or screw-clamp with the supplied hardware. Torque to 3.5 Nm. The supply can feed from either end; position doesn't matter. IP20 with conductors connected, IP40 in the handle area — fine for enclosed panels, not for washdown zones.

Frequently asked questions

What is the closest functional second-source — 5SL4363-7?

The 5SL4363-7 is a sibling in the same SENTRON line — same 1-pole C-curve footprint and 18 mm width. The 5SJ4 series carries a higher IEC 60947-2 breaking capacity (15 kA vs the 5SL's typical 10 kA). Verify your panel's SCCR requirement before swapping.

What are the key ratings for this MCB?

1-pole, C-curve, 10 kA per EN 60898, 15 kA per IEC 60947-2 at 400 V AC. Rated insulation voltage 440 V AC, DC max 60 V. Width 18 mm, depth 70 mm. Pollution degree 3, overvoltage category 3.
