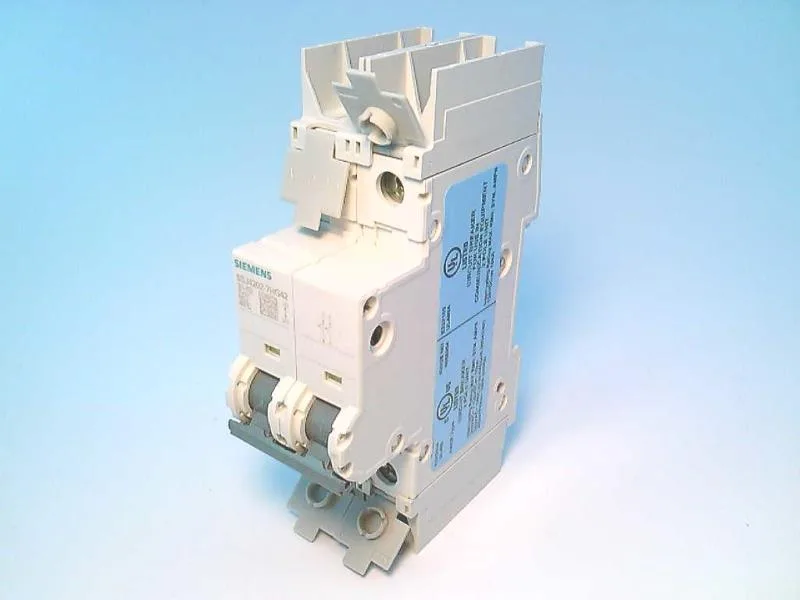

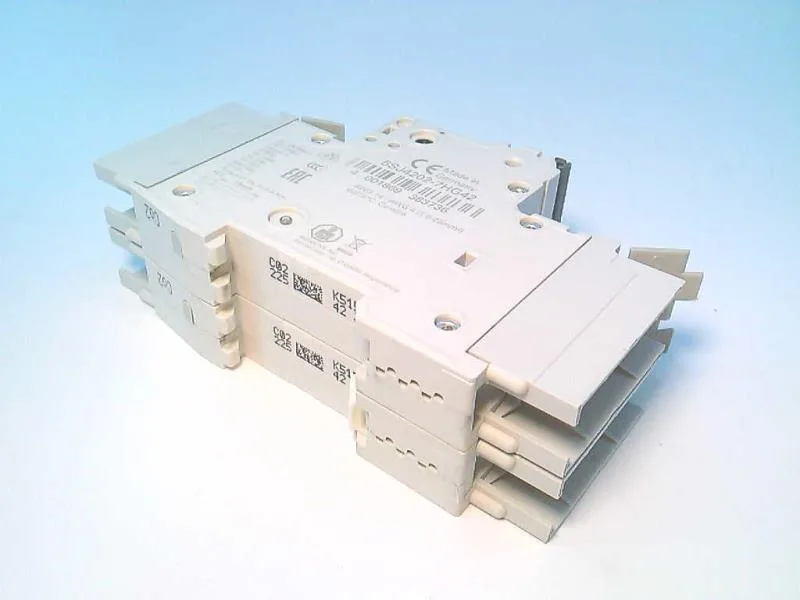

Siemens 5SJ4202-7HG42 — 2-Pole MCB (DIN Rail)

Siemens 5SJ4202-7HG42 2-Pole MCB, C-Curve, 10/15 kA

MPN5SJ4202-7HG42
Active

Siemens SENTRON 5SJ4202-7HG42, 2-pole miniature circuit breaker (MCB), C-curve, 10 kA (EN 60898) / 15 kA (IEC 60947-2) at 400 V AC, 60 V DC, 2 modular width units.

$90.17 – $241.50Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SJ4202-7HG42 — Identification
ParameterValue
Product designationMiniature circuit breakers
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SJ4202-7HG42 — Electrical
ParameterValue
Number of poles2
5SJ4202-7HG42 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage category3
5SJ4202-7HG42 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height121 mm
Depth70 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors, IP 40 in the handle range
5SJ4202-7HG42 — Environmental
ParameterValue
Pollution degree3
5SJ4202-7HG42 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value10 kA

Product details

C-curve trip for motor and lighting circuits

The Siemens 5SJ4202-7HG42 is a 2-pole miniature circuit breaker from the SENTRON 5SJ4 series, rated 10 kA breaking capacity per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC.

AC and DC voltage ratings

Rated 400 V AC and 60 V DC maximum, the 5SJ4202-7HG42 covers single-phase branch circuits in 400/230 V distribution panels and low-voltage DC control circuits up to 60 V. The 2-pole design switches both phase and neutral (or two line conductors) in a single 36 mm-wide module, fitting standard DIN-rail enclosures.

Current production and sourcing

Listed as current production. No official cross-reference or direct replacement is on record — confirm the BOM position count and the panelboard compatibility before specifying.

Frequently asked questions

What is the price of Siemens 5SJ4202-7HG42?

Pricing is critical for budget planning and cost comparison.

Where can I buy Siemens 5SJ4202-7HG42?

Buyers need trusted sources to ensure genuine product and timely delivery.

What is the cross reference for Siemens 5SJ4202-7HG42?

Cross-reference helps find alternatives for sourcing or replacement.

What is the lead time for Siemens 5SJ4202-7HG42?

Lead time affects production schedules and inventory planning.

Is the Siemens 5SJ4202-7HG42 UL 489 listed?

UL listing ensures compliance with safety standards required in many applications.

Does Siemens 5SJ4202-7HG42 support DC applications?

DC rating determines suitability for specific circuits like solar or control panels.
