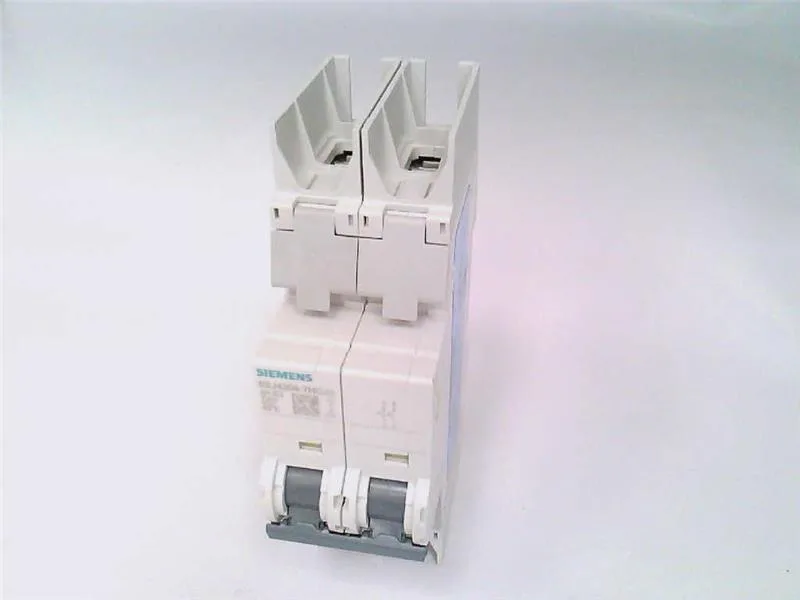

Siemens SENTRON 5SJ4 series, 2-pole miniature circuit breaker, C-curve, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC / 60 V DC, 36 mm wide.
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breakers |
| Brand name | SENTRON |
| Application environment | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Number of poles | 2 |
| Parameter | Value |
|---|---|
| Tripping characteristic class | C |
| Overvoltage category | 3 |
| Parameter | Value |
|---|---|
| Modular width units | 2 |
| Width | 36 mm |
| Height | 121 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Mounting position | any |
| Min. | -40 °C |
| Max. | 75 °C |
| Protection degree (IP) | IP20, with connected conductors, IP 40 in the handle range |
| Parameter | Value |
|---|---|
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| At AC rated value | 400 V |
| According to EN 60898 rated value | 10 kA |
The 5SJ4204-7HG42: Rated 400 V AC and 60 V DC, this 2-pole breaker handles single-phase or two-wire DC circuits up to that voltage ceiling. The DC rating is limited to 60 V maximum, so it is not a candidate for higher-voltage DC bus applications.
The 5SJ4 series is an active Siemens SENTRON line. No official successor or cross-reference on record.
Yes, rated 60 V DC maximum. It is suitable for two-wire DC circuits up to that voltage, but not for higher-voltage DC bus applications.
