Siemens 5SJ4208-8HG42

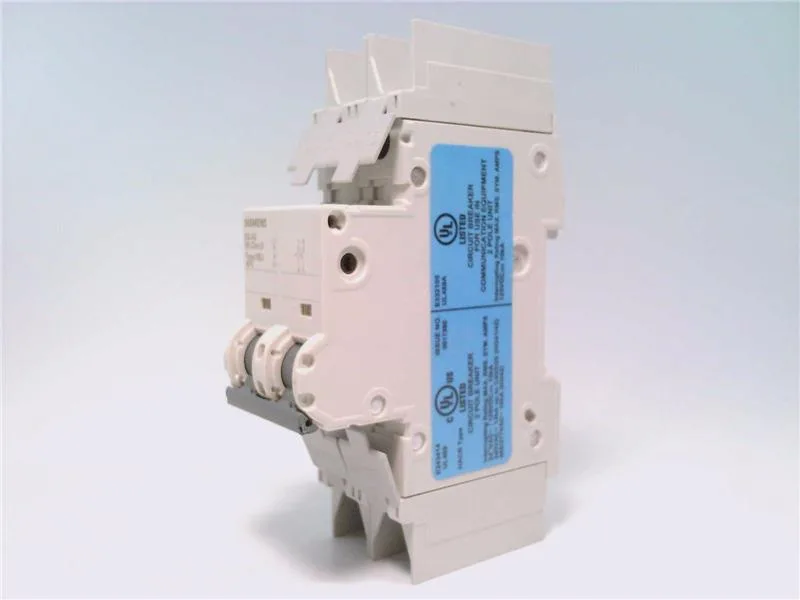

Siemens 5SJ4208-8HG42 SENTRON MCB, 2P D-Curve, 10 kA

MPN 5SJ4208-8HG42
Active

Siemens SENTRON 5SJ4 series, 2-pole miniature circuit breaker, D tripping characteristic, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC / 60 V DC, 2 MW units, DIN rail mount.

$105.41 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

5SJ4208-8HG42 specifications
ParameterValue
Poles2
Mountingon standard mounting rail
Depth70 mm
Width36 mm
Height121 mm

Product details

What this 2-pole D-curve MCB is for

The Siemens 5SJ4208-8HG42 is a 2-pole miniature circuit breaker from the SENTRON 5SJ4 series, sized at 2 modular width units (36 mm) for standard DIN-rail enclosures. Rated 10 kA breaking capacity per EN 60898 and 15 kA per IEC 60947-2 at 400 V AC, with a 60 V DC rating for control-circuit protection. The 440 V insulation voltage (Ui) and overvoltage category 3 with pollution degree 3 mean it's rated for fixed-installation panels in industrial environments — not just residential distribution boards.

Sealable, halogen-free, silicon-free construction — relevant for clean-room or corrosive-gas environments where outgassing matters. Vibration resistance tested to 50 m/s² at 25–150 Hz and 60 m/s² at 35 Hz (4 s), so it holds up on machine-mounted subpanels near rotating equipment.

Listed as current-production lifecycle stage — no phase-out notice on this order code. The 5SJ4 series remains an active Siemens SENTRON line, so BOM freeze risk is low for new builds.

MPN
5SJ4208-8HG42
