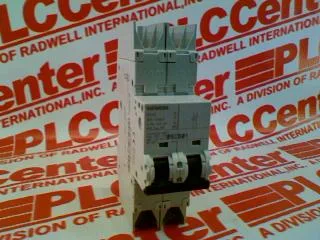

Siemens SENTRON 5SJ4230-8HG42, 2-pole miniature circuit breaker, D tripping characteristic, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC / 60 V DC, 2 MW units, IP20/IP40.
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breakers |
| Brand name | SENTRON |
| Application environment | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Number of poles | 2 |
| Parameter | Value |
|---|---|
| Tripping characteristic class | D |
| Overvoltage category | 3 |
| Parameter | Value |
|---|---|
| Modular width units | 2 |
| Width | 36 mm |
| Height | 121 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Mounting position | any |
| Min. | -40 °C |
| Max. | 75 °C |
| Protection degree (IP) | IP20, with connected conductors, IP 40 in the handle range |
| Parameter | Value |
|---|---|
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| At AC rated value | 400 V |
| According to EN 60898 rated value | 10 kA |
Rated 400 V AC / 60 V DC, it breaks 10 kA per EN 60898 and 15 kA per IEC 60947-2, so it handles fault currents up to those levels without upstream coordination issues. The D-curve means the magnetic trip is set at 10–20× rated current, avoiding nuisance trips on inductive starts.
Current production — no end-of-life notice.
70 mm — this is the installation depth, so ensure the enclosure depth is at least 70 mm plus wiring clearance.
