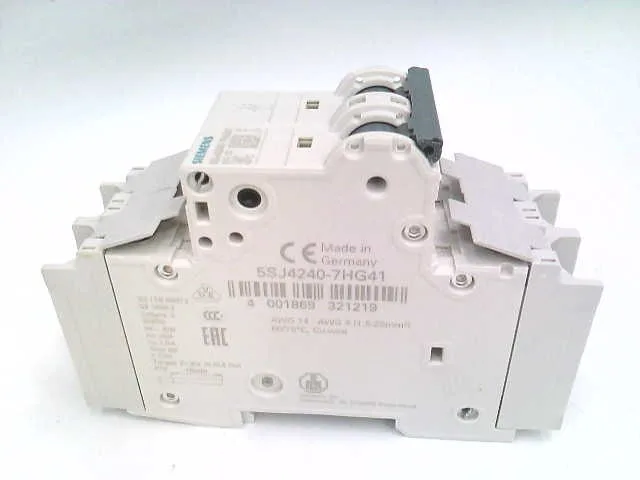

Siemens 5SJ4240-7HG41 — 2-Pole MCB (DIN Rail)

Siemens 5SJ4240-7HG41 SENTRON 2-Pole MCB, C-Curve, 10/15 kA

MPN5SJ4240-7HG41
Active

Siemens SENTRON 5SJ4 series, 2-pole miniature circuit breaker (MCB), C-trip characteristic, 10 kA (EN 60898) / 15 kA (IEC 60947-2) interrupting capacity, 400 VAC, 60 VDC, 36 mm wide, 2 modular units.

$115.57 – $221.40Ref. price · indicative, final on quote
Siemens 5SJ4240-7HG41 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SJ4240-7HG41 — Identification
ParameterValue
Product designationMiniature circuit breakers
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SJ4240-7HG41 — Electrical
ParameterValue
Number of poles2
5SJ4240-7HG41 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage category3
5SJ4240-7HG41 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height110 mm
Depth70 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors, IP 40 in the handle range
5SJ4240-7HG41 — Environmental
ParameterValue
Pollution degree3
5SJ4240-7HG41 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value10 kA

Product details

Interrupting Capacity and Trip Curve

The 5SJ4240-7HG41 is a 2-pole miniature circuit breaker from the Siemens SENTRON 5SJ4 series, carrying dual interrupting ratings: 10 kA per EN 60898 and 15 kA per IEC 60947-2. For a 400 VAC line, that 15 kA IEC rating gives the SCCR headroom to coordinate downstream of a larger feeder breaker without cascading.

Environmental and Application Range

Vibration resistance to 50 m/s² at 25–150 Hz and 60 m/s² at 35 Hz means it stays latched on a conveyor line or pump skid.

Frequently asked questions

What is the price of Siemens 5SJ4240-7HG41?

Buyers need to compare costs across suppliers to make purchasing decisions.

Where can I buy Siemens 5SJ4240-7HG41?

Identifies authorized distributors and stock availability, critical for procurement timelines.

What is the datasheet for Siemens 5SJ4240-7HG41?

Engineers require detailed electrical and mechanical specifications for design validation.

Is Siemens 5SJ4240-7HG41 UL 489 certified?

Confirms regulatory compliance, essential for installations in North America.

What is the equivalent or replacement for Siemens 5SJ4240-7HG41?

Buyers and technicians need alternatives when the exact part is out of stock or obsolete.

What is the operating temperature range of Siemens 5SJ4240-7HG41?

Ensures the breaker can operate in environmental conditions of the application.
