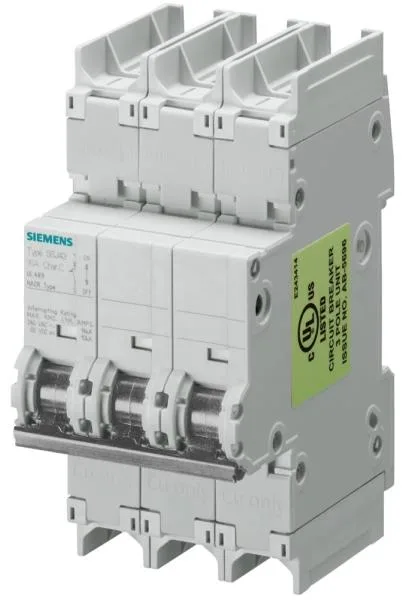

It is designed for snap-on mounting on standard DIN rails in any position, fitting into a 70 mm deep enclosure.
At 30 °C and 40 °C the breaker holds its full 8 A rating. At 45 °C it derates to 7.8 A, at 50 °C to 7.6 A, and at 60 °C to 7.2 A. The maximum ambient is 75 °C; minimum storage is -40 °C.
Mounting and Environment
Snaps onto standard mounting rail, any orientation. The IP rating is IP20 with connected conductors, IP40 in the handle area — fine for a dry indoor panel, not for washdown zones. Vibration resistance is 50 m/s² at 25 to 150 Hz and 60 m/s² at 35 Hz (4 s), so it holds up on a machine frame or conveyor line. Terminal tightening torque is 3.5 Nm for copper conductors.
