Siemens SENTRON 5SJ4 series, 5SJ4320-7HG42, 3-pole miniature circuit breaker, C tripping characteristic, rated 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC / 60 V DC, 54 mm wide, 70 mm deep, active production.

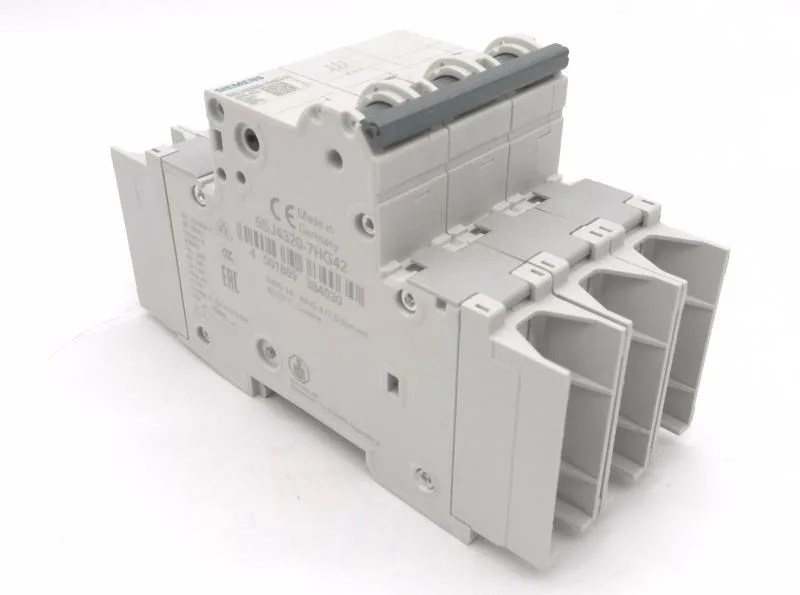

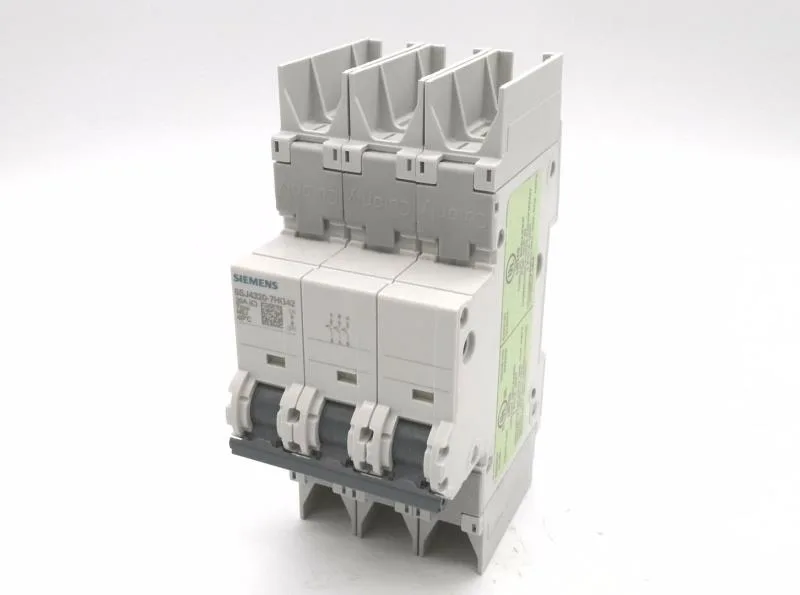

Siemens 5SJ4320-7HG42 SENTRON MCB, 3P C-Curve, 10 kA
MPN5SJ4320-7HG42
Active
Siemens SENTRON 5SJ4 series, 5SJ4320-7HG42, 3-pole miniature circuit breaker, C tripping characteristic, rated 10 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC / 60 V DC, 54 mm wide, 70 mm deep, active production.
$107.95Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Brand name | SENTRON |
| Number of poles | 3 |
| Pole configuration | 3P |
| Suitability for operation | Mechanical engineering / industry |
Protection
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | C |
| Breaking capacity per EN 60898 | 10 kA |
| Breaking capacity per IEC 60947-2 | 15 kA |
| Overvoltage category | 3 |
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Pollution degree | 3 |
Electrical
| Parameter | Value |
|---|---|
| Supply frequency range | 50/60 Hz |
| Power loss per pole at rated current (AC, hot) | 2.4 W |
| Mechanical service life (operating cycles, typ.) | 10 000 |
| Neutral conductor switching | No |
Mechanical
| Parameter | Value |
|---|---|
| Modular width units | 3 |
| Mounting position | any |
| Width | 54 mm |
| Height | 121 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Terminal tightening torque, max. | 75 °C |
| Terminal tightening torque, min. | -40 °C |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Fastening method | on standard mounting rail |
| Sealable | Yes |
| Accepts supplementary devices | Yes |
Environmental
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Vibration resistance (IEC 60068-2-6) | ±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz |
Product details
Frequently asked questions
Will the 5SJ4320-7HG42 fit a panel specified for the 5SJ4316-7HG42?
Physically yes – same DIN-rail footprint, same modular width, same height and depth. No rewiring needed for panel layout. But verify the ampacity: 20 A vs 16 A changes the protection coordination.
What compliance documentation does Siemens provide for the 5SJ4320-7HG42?
The part is halogen-free, silicon-free, and sealable. It is rated for vibration resistance and overvoltage category III per EN/IEC standards. For specific declarations (RoHS, REACH, UL), refer to the manufacturer's current documentation or our sales team – these are not in the basic spec listing but are standard for this series.
MPN
5SJ4320-7HG42
