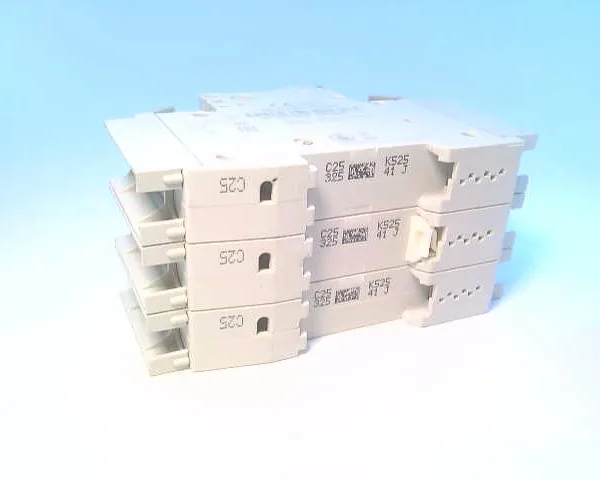

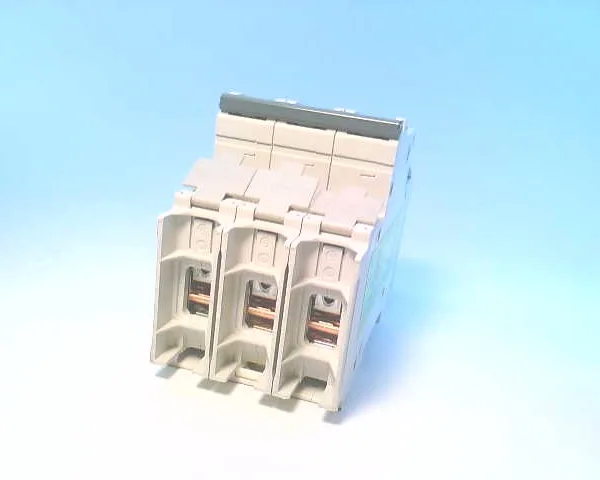

Siemens SENTRON miniature circuit breaker 5SJ4325-7HG41, 3-pole, C characteristic, 10 kA / 15 kA breaking capacity, dimensions 54x110x70 mm. Rated 400 V AC, 60 V DC.
| Parameter | Value |
|---|---|
| Brand name | SENTRON |
| Number of poles | 3 |
| Pole configuration | 3P |
| Suitability for operation | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | C |
| Breaking capacity per EN 60898 | 10 kA |
| Breaking capacity per IEC 60947-2 | 15 kA |
| Overvoltage category | 3 |
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Supply frequency range | 50/60 Hz |
| Power loss per pole at rated current (AC, hot) | 2.9 W |
| Mechanical service life (operating cycles, typ.) | 10 000 |
| Neutral conductor switching | No |
| Parameter | Value |
|---|---|
| Modular width units | 3 |
| Mounting position | any |
| Width | 54 mm |
| Height | 110 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Terminal tightening torque, max. | 75 °C |
| Terminal tightening torque, min. | -40 °C |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Fastening method | on standard mounting rail |
| Sealable | Yes |
| Accepts supplementary devices | Yes |
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Vibration resistance (IEC 60068-2-6) | ±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz |
Operating ambient temperature –40 to +75 °C, with max 95% humidity. Sealable enclosure; halogen-free and silicon-free design. Suitable for mechanical engineering and industrial environments.
Lifecycle stage is current — no end-of-life notice or last-time-buy pending. This part is actively manufactured by Siemens and available through standard distribution. We can quote against an RFQ for your BOM line.
