Siemens 5SJ4330-7HG42 — 3-Pole MCB (DIN Rail)

Siemens 5SJ4330-7HG42 SENTRON MCB, 30A 3P C-curve

MPN5SJ4330-7HG42
Active

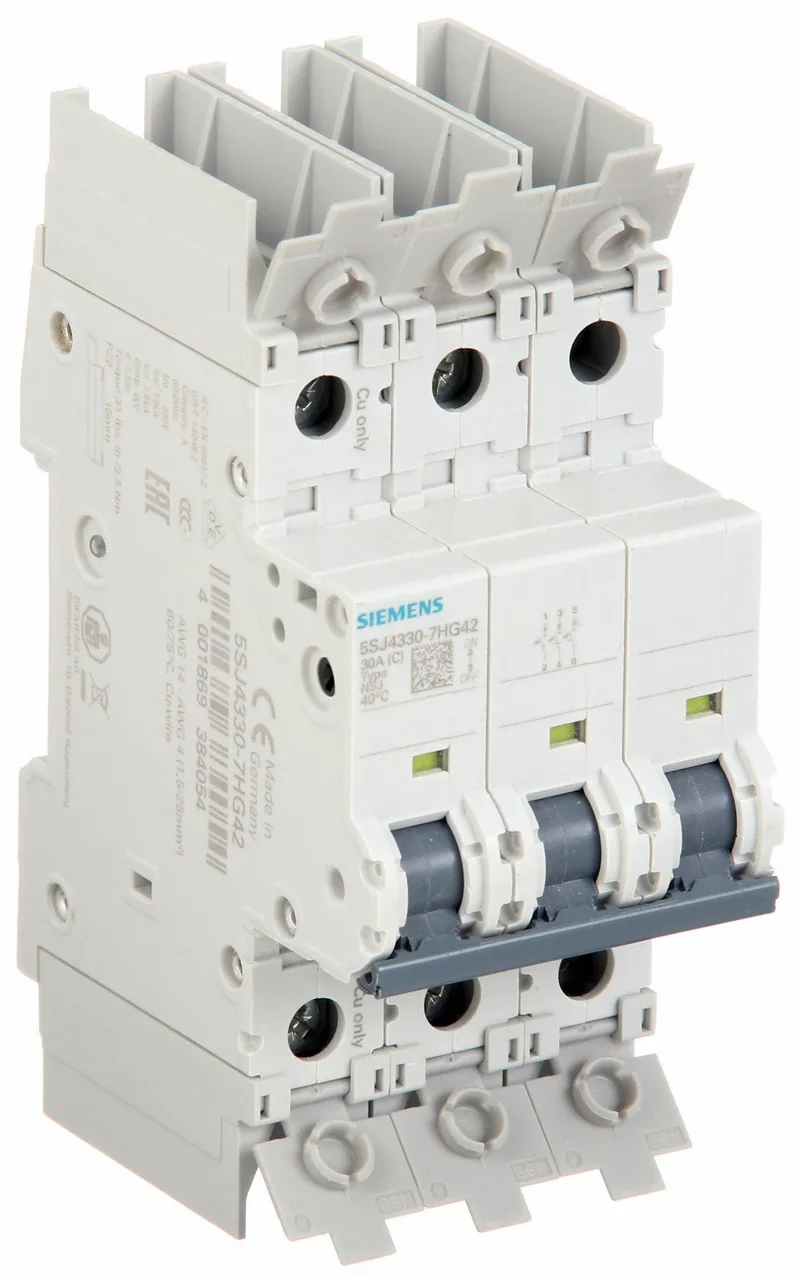

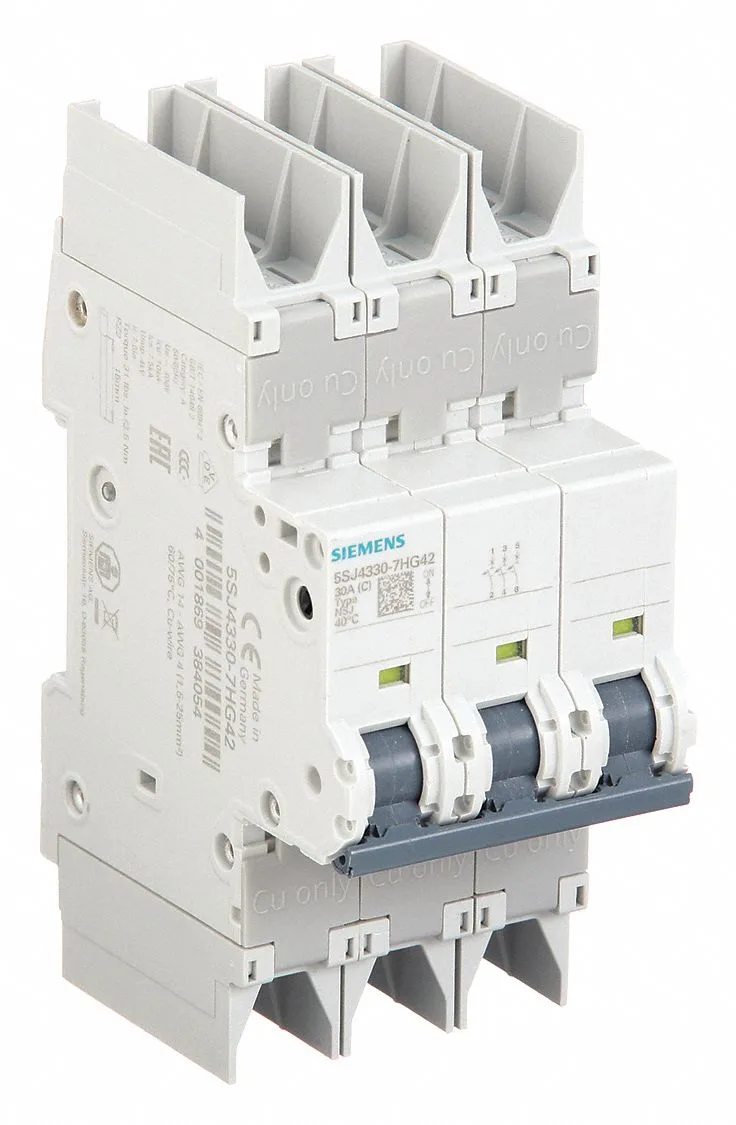

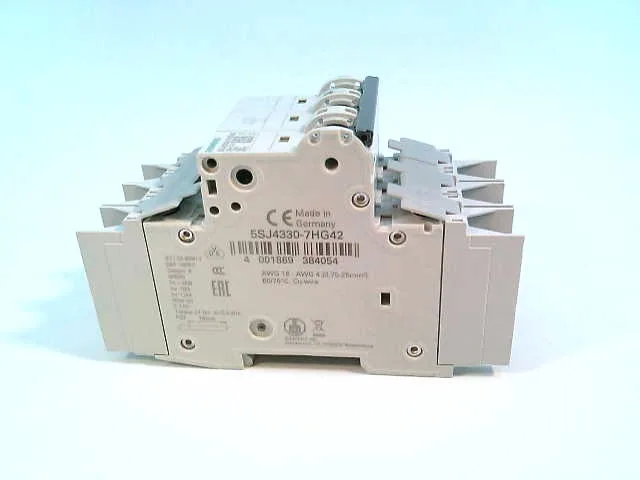

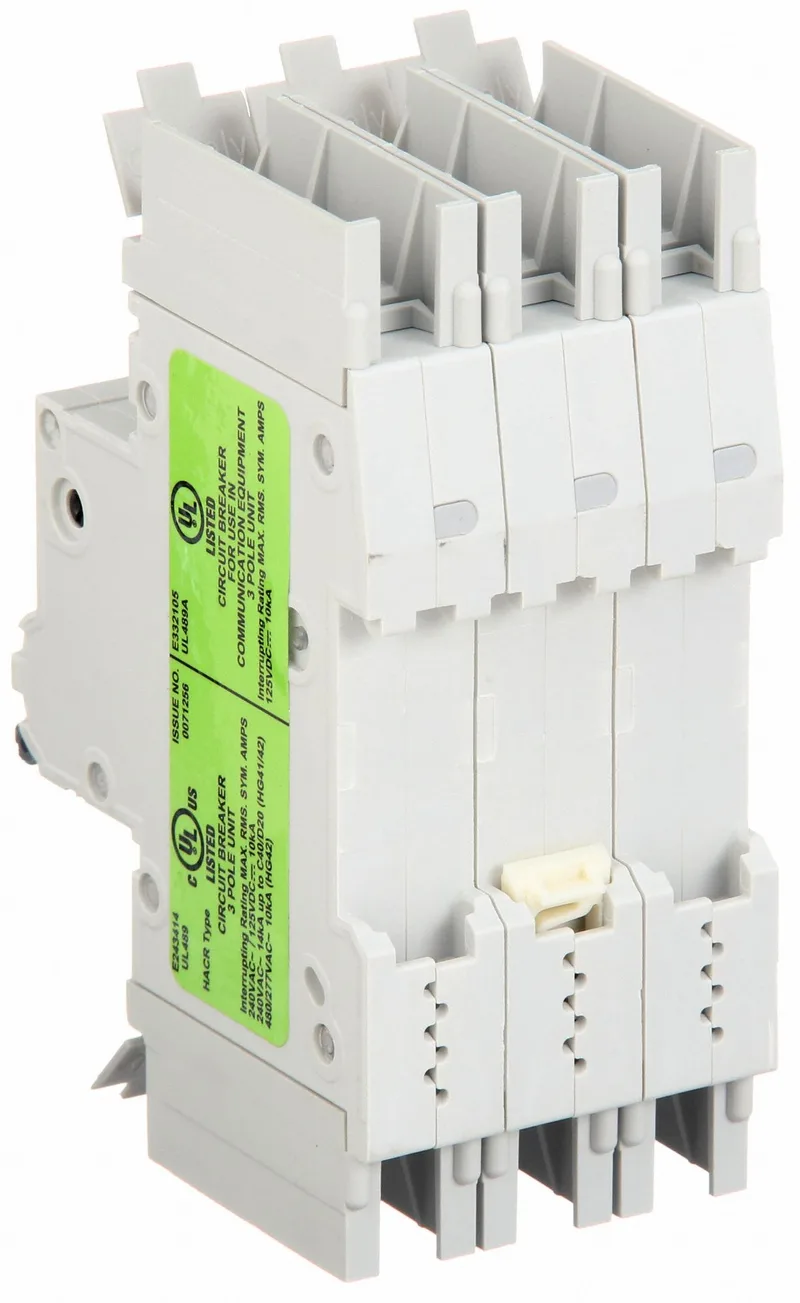

Siemens SENTRON 5SJ4330-7HG42, 3-pole miniature circuit breaker, 30 A, 400 V AC, C-trip characteristic.

$129.54 – $339.80Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SJ4330-7HG42 — Identification
ParameterValue
Brand nameSENTRON
Number of poles3
Pole configuration3P
Suitability for operationMechanical engineering / industry
5SJ4330-7HG42 — Protection
ParameterValue
Tripping characteristic (curve)C
Breaking capacity per EN 6089810 kA
Breaking capacity per IEC 60947-215 kA
Overvoltage category3
IP protection classIP20, with connected conductors, IP 40 in the handle range
Pollution degree3
5SJ4330-7HG42 — Electrical
ParameterValue
Voltage type (AC/DC)AC/DC
Supply frequency range50/60 Hz
Power loss per pole at rated current (AC, hot)3.4 W
Mechanical service life (operating cycles, typ.)10 000
Neutral conductor switchingNo
5SJ4330-7HG42 — Mechanical
ParameterValue
Modular width units3
Mounting positionany
Width54 mm
Height121 mm
Depth70 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
Combined terminal, topYes
Combined terminal, bottomYes
Fastening methodon standard mounting rail
SealableYes
Accepts supplementary devicesYes
5SJ4330-7HG42 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Vibration resistance (IEC 60068-2-6)±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz

Product details

30 A, 3-pole, C-curve — panel-builder fit

Siemens SENTRON 5SJ4330-7HG42 is a 30 A, 3-pole miniature circuit breaker with C-trip characteristic, rated 400 V AC. IP20 with conductors connected; IP40 in the handle area. Halogen- and silicon-free construction suits sensitive environments.

Same-family alternatives — 5SJ4316-7HG42 and 5SJ4325-8HG42

Within the 5SJ4 series, a lower-current C-curve variant shares the same 54 mm width, 70 mm depth, and combined top/bottom terminals. For high-inrush loads, the 5SJ4325-8HG42 (D-curve) fits the same 3-module width.
